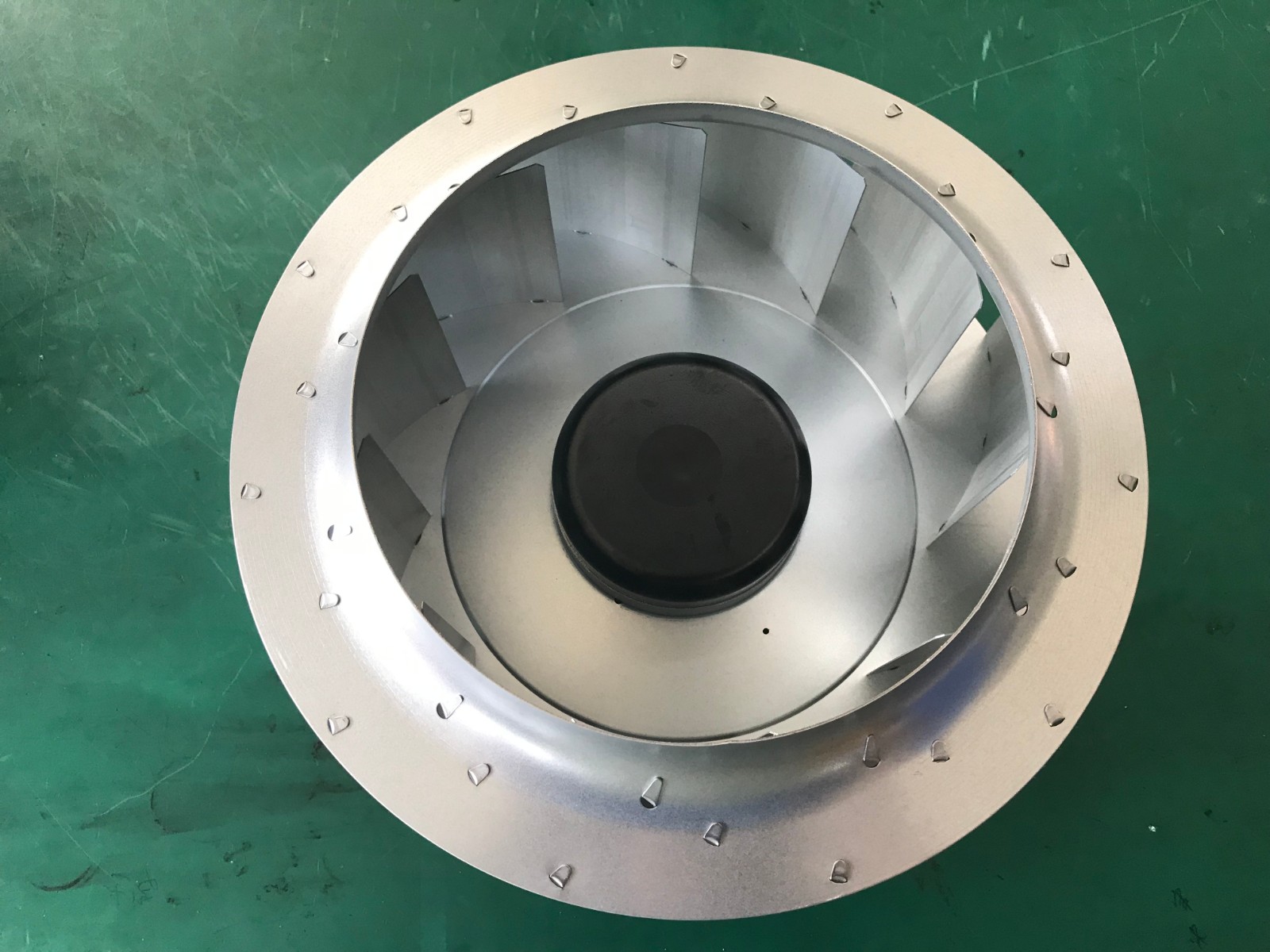

EC Backward Curved Centrifugal Fan
This EC backward curved centrifugal fan features a compact structure that requires less space than traditional fans. It delivers stable performance with low noise, minimal vibration, and high reliability.
Technical Specifications
Overview
High-Efficiency EC Centrifugal Fan
This backward curved centrifugal fan features a compact, space-saving design ideal for modern HVAC and ventilation systems. Engineered for high efficiency and low power consumption, it offers stable performance with reduced noise and vibration levels. The unit supports stepless speed regulation, allowing for precise control in various industrial and commercial applications.
Technical Specifications
- Model Number
- B3P280-EC092-100
- Nominal Voltage
- 220 VAC
- Frequency
- 50/60
- Operating Speed
- 2000 rpm
- Power Input
- 130 W
- Current Draw
- 0.9 A
- Sound Pressure Level
- 73 dB
- Permissible Ambient Temperature
- -25~+60
Features & Certification
Certifications
CE
- Key Features
- Compact StructureLow NoiseHigh EfficiencyLow VibrationStepless Speed Regulation

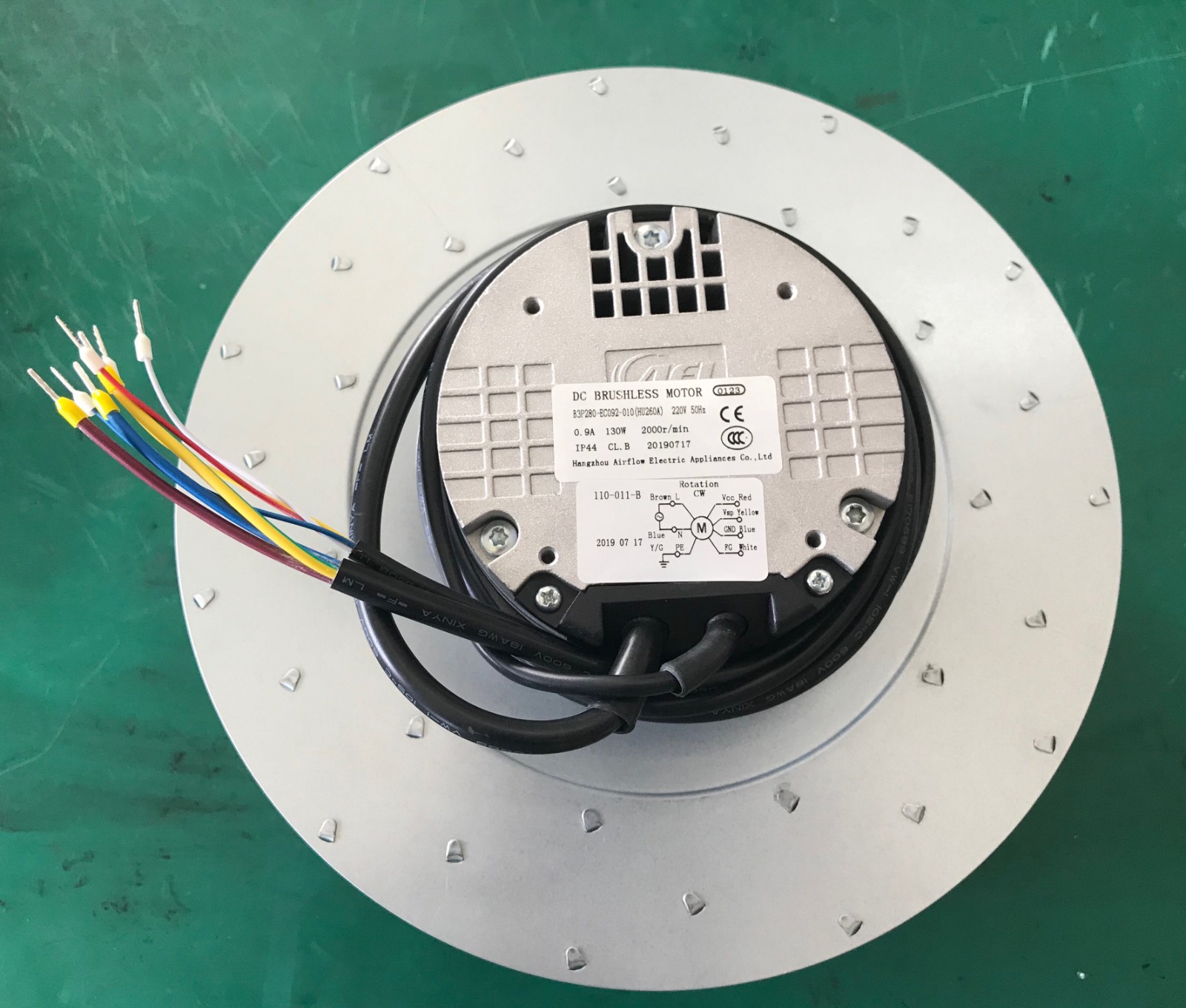

Motor Details
Motor Specifications
- Type: DC Brushless Motor
- Ingress Protection: IP44
- Insulation Class: Class B
