Technical Specifications
Product Overview
Professional Signal Alignment Tool

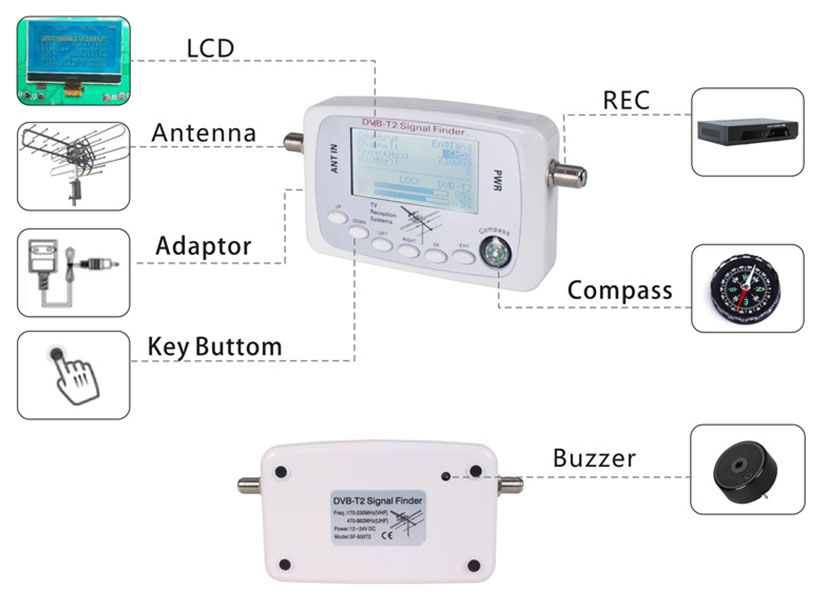

This portable signal finder is designed for the precise alignment and optimization of DVB-T and DVB-T2 digital terrestrial television antennas. It features a clear LCD display that provides real-time feedback on signal strength and quality, ensuring accurate installation. With built-in audio alerts and adjustable backlight, it simplifies the setup process for both professional installers and home users.
Technical Specifications
Key Functions
- Multi-standard demodulation
- Signal decoding
- Channel scanning
- Signal locking
- Frequency Range
- 170-230MHz (VHF) / 470-862MHz (UHF)
- Supported Standards
- DVB-TDVB-T2
Power & Connectivity
Power Input
12 V DC
Min Voltage
24 V DC
Max Voltage

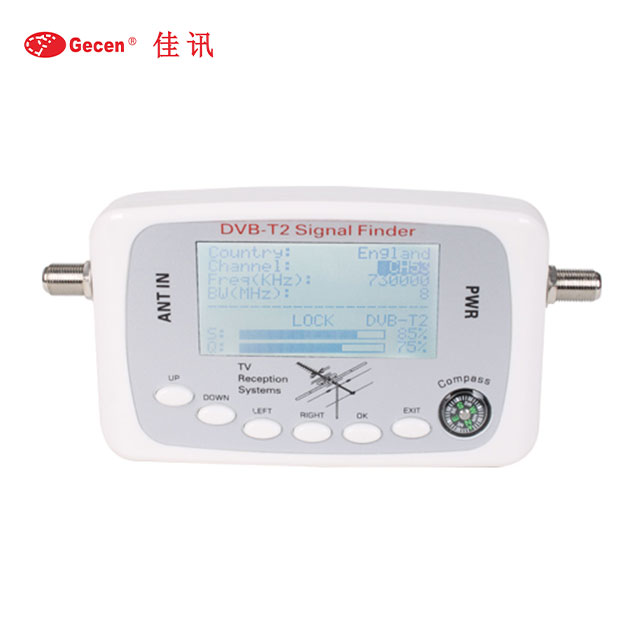

Display & Interface
Display Features
- LCD signal strength display
- LCD signal quality display
- Controllable LCD backlight
- Audio Feedback
- Yes
Certifications
Compliance
CE Certified
