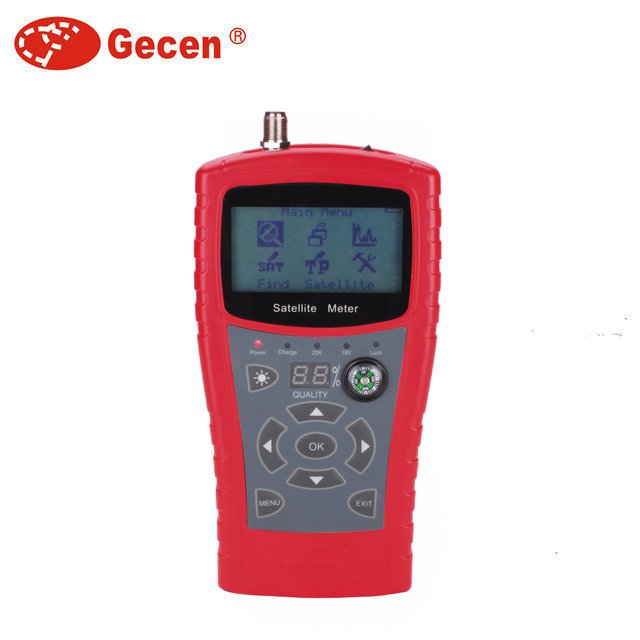

DVB-S/S2 Digital Satellite Signal Finder Meter
This digital satellite finder supports DVB-S and DVB-S2 standards including spectrum function and Unicable LNB. It has a built in highlight LED.
Technical Specifications
Overview
Professional Satellite Signal Alignment
This digital satellite finder is a high-precision instrument designed for the installation and alignment of satellite dishes. It supports both DVB-S and DVB-S2 standards, offering installers accurate signal monitoring with real-time feedback on strength, quality, and power. The device features a user-friendly interface, compact design, and essential tools like spectrum analysis and Unicable LNB support to ensure efficient signal acquisition and optimization in the field.
Technical Specifications

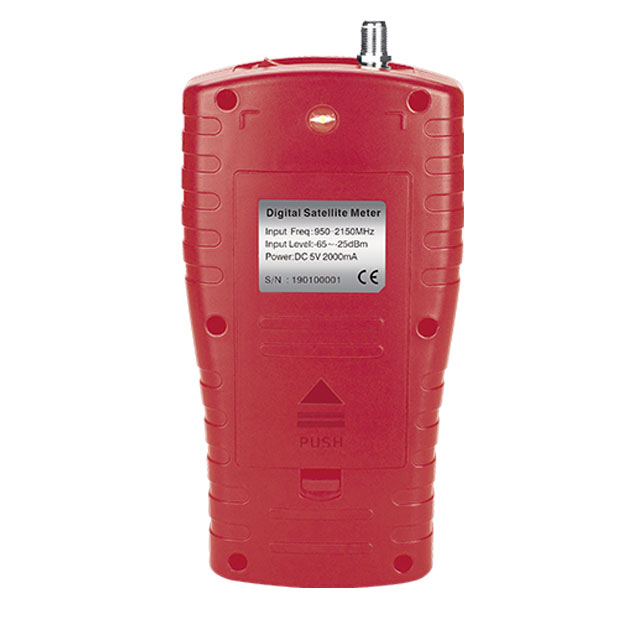

- Input Frequency Range
- 950 MHz - 2150MHz
- Input Level Sensitivity
- -65 to -25 dBm
- Power Supply
- DC 5V 2000mA
Features
Advanced Functions
- Spectrum function
- Unicable LNB support
- 0/22KHz tone support
- DiSEqC 1.0 support
- USALS support
- Automatic power cable check
Real-time Display Metrics
1
Signal Strength
1
Signal Quality
1
MER
1
BER
- Supported Standards
- DVB-SDVB-S2

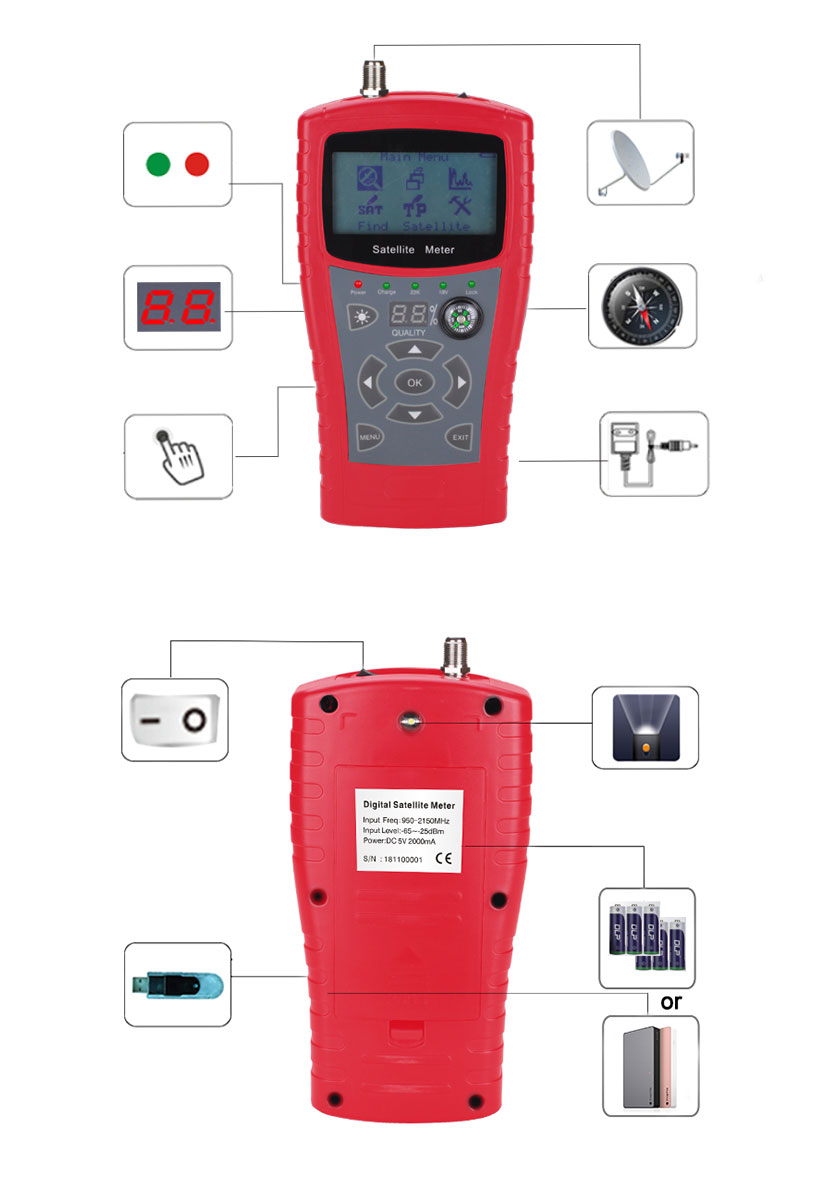

Interface & Hardware
Interface Features
LCD ScreenHighlight LEDUSB 2.0 PortDirectional Navigation
- Maintenance & Updates
- USB 2.0 interface allows for convenient software updates and satellite parameter management.
