Technical Specifications
Overview
Dual Port AC Charging Solution

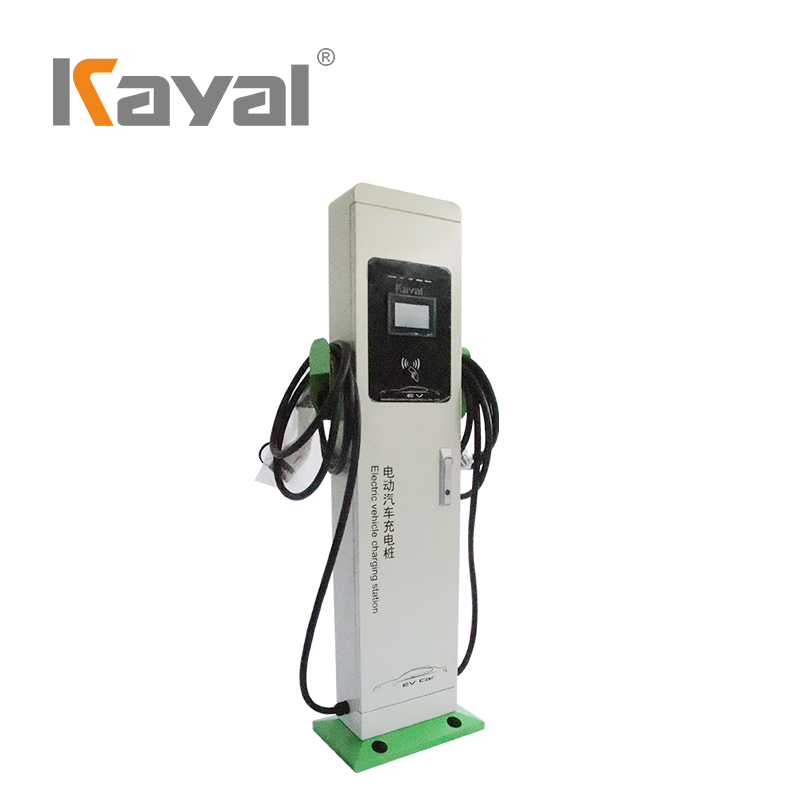

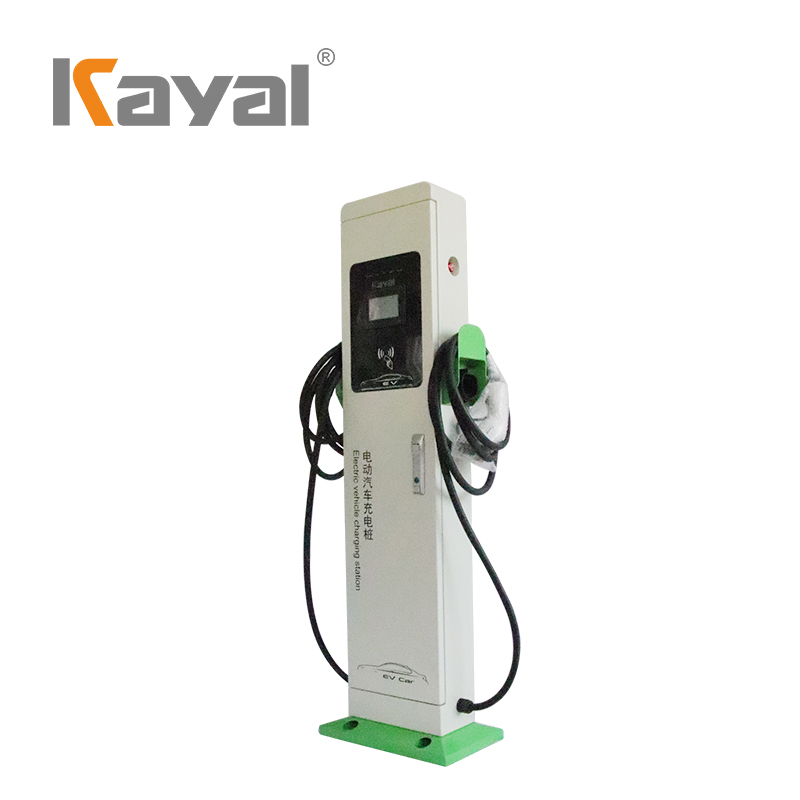

This AC electric vehicle charging station features a dual-gun design, allowing for the simultaneous charging of two electric vehicles to maximize efficiency and reduce wait times. Designed for versatility, it is suitable for large-scale charging stations, residential quarters, shopping plazas, and high-speed transportation hubs. The system is built with a robust sheet metal and ABS plastic enclosure, offering high compatibility with vehicles complying with SAE J1772 or IEC 62196-2 standards.
Performance Metrics
Key Performance Metrics
7 kW
Power Output
32 A
Max Current
220 V
Rated Voltage
Technical Specifications
Electrical Specifications
| Parameter | Value |
|---|---|
| Input/Output Voltage | AC220V ± 20% |
| Input Frequency | 50 ± 10Hz |
| Measurement Accuracy | Level 0.5 |
| Cable Length | 5m |
| Charging Modes | Automatic full, fixed time, fixed amount, fixed power |
Physical & Installation
Installation Options
- Wall-mounted (292*126*417 mm)
- Column/Pedestal type (292*176*4131 mm)
- Down-and-down routing
Safety & Protection
Protection Ratings
IP54IP55Level 0.5 Accuracy
- Safety Features
- Leakage ProtectionEmergency Stop ButtonOverheating Cut-offIP54/IP55 WaterproofTemperature Monitoring
Operating Environment
Operating Environment
| Condition | Requirement |
|---|---|
| Ambient Temperature | -25°C to 50°C |
| Relative Humidity | ≤ 90% (at 25°C) |
| Atmospheric Pressure | 80kPa to 110kPa |
| Installation Inclination | ≤ 5% |
Smart Features

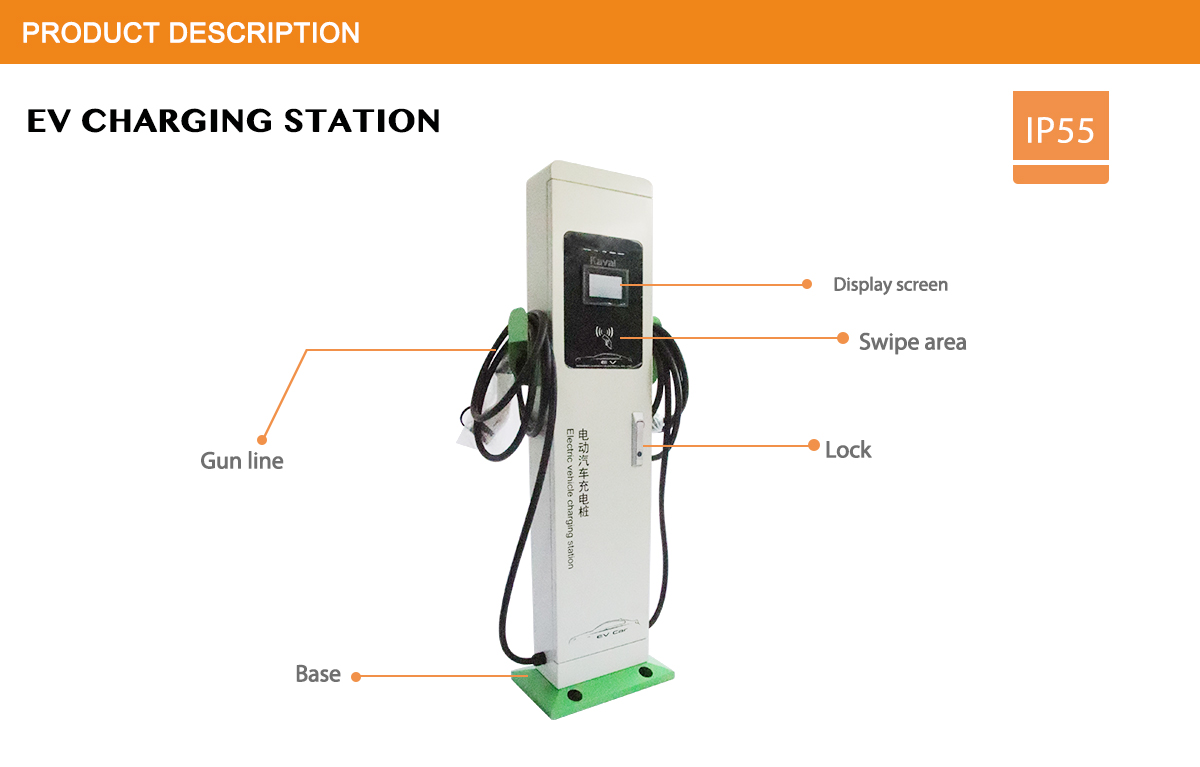

Interface & Connectivity
- 4.3 inch color touch screen (480x272 resolution)
- Non-contact IC smart card reader
- RS-485 networking communication interface
- GPRS networking mode support
- Embedded operating system
