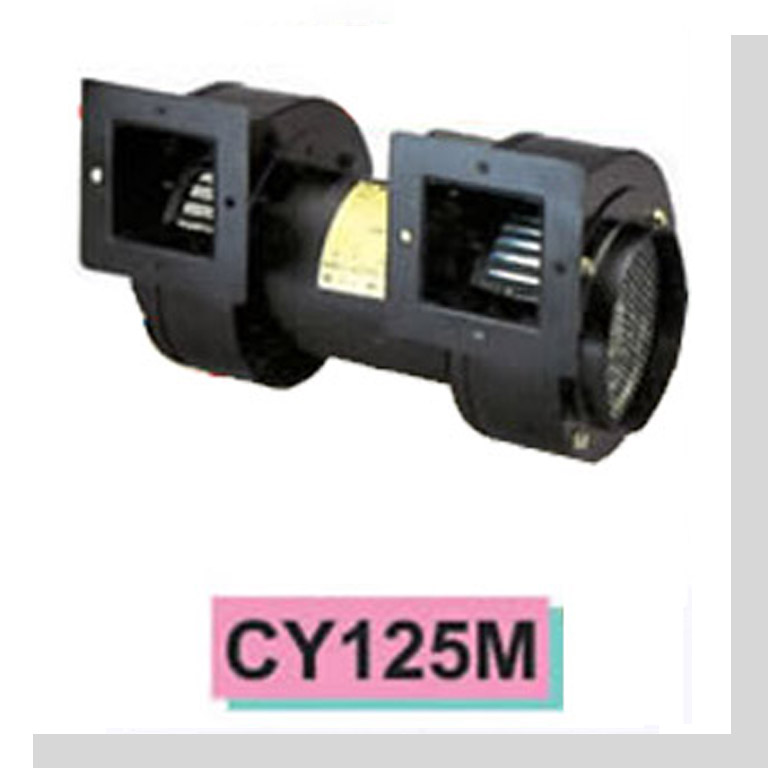

Dual Inlet Centrifugal Fan
This centrifugal fan features a dual inlet and outlet design for efficient air movement. It is engineered for durability and long-lasting performance, ensuring reliable operation in diverse conditions.
Technical Specifications
Overview
High-Performance Centrifugal Fan
This dual inlet centrifugal fan is engineered for efficient air movement in demanding industrial and commercial environments. Designed for reliability, it provides powerful airflow and static pressure suitable for HVAC systems, air exchange, and ventilation in large-scale architectures. The unit features a robust construction and is CE certified, ensuring compliance with safety standards for professional applications.
Technical Specifications
- Model
- CY125M
- Output Power
- 0.37 kW
- Phase
- 3
- Pole
- 2
- Weight
- 12 kg
- Volume
- 0.03 m3

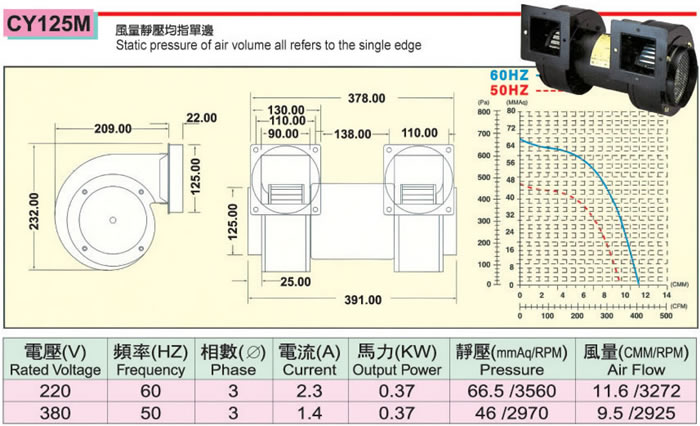

Performance Data
Operating Performance
| Voltage (V) | Frequency (Hz) | Current (A) | Air Flow (CMM) | Static Pressure (mmAq) | Speed (RPM) |
|---|---|---|---|---|---|
| 220 | 60 | 2.3 | 11.6 | 66.5 | 3,560 |
| 380 | 50 | 1.4 | 9.5 | 46 | 2,970 |
Compliance & Usage
Recommended Applications
- Indoor ventilation
- Air-exchange systems
- Industrial exhaust
- Mining enterprises
- Large-size architectures
- Guesthouses
- Restaurants
- Certifications
- CE
