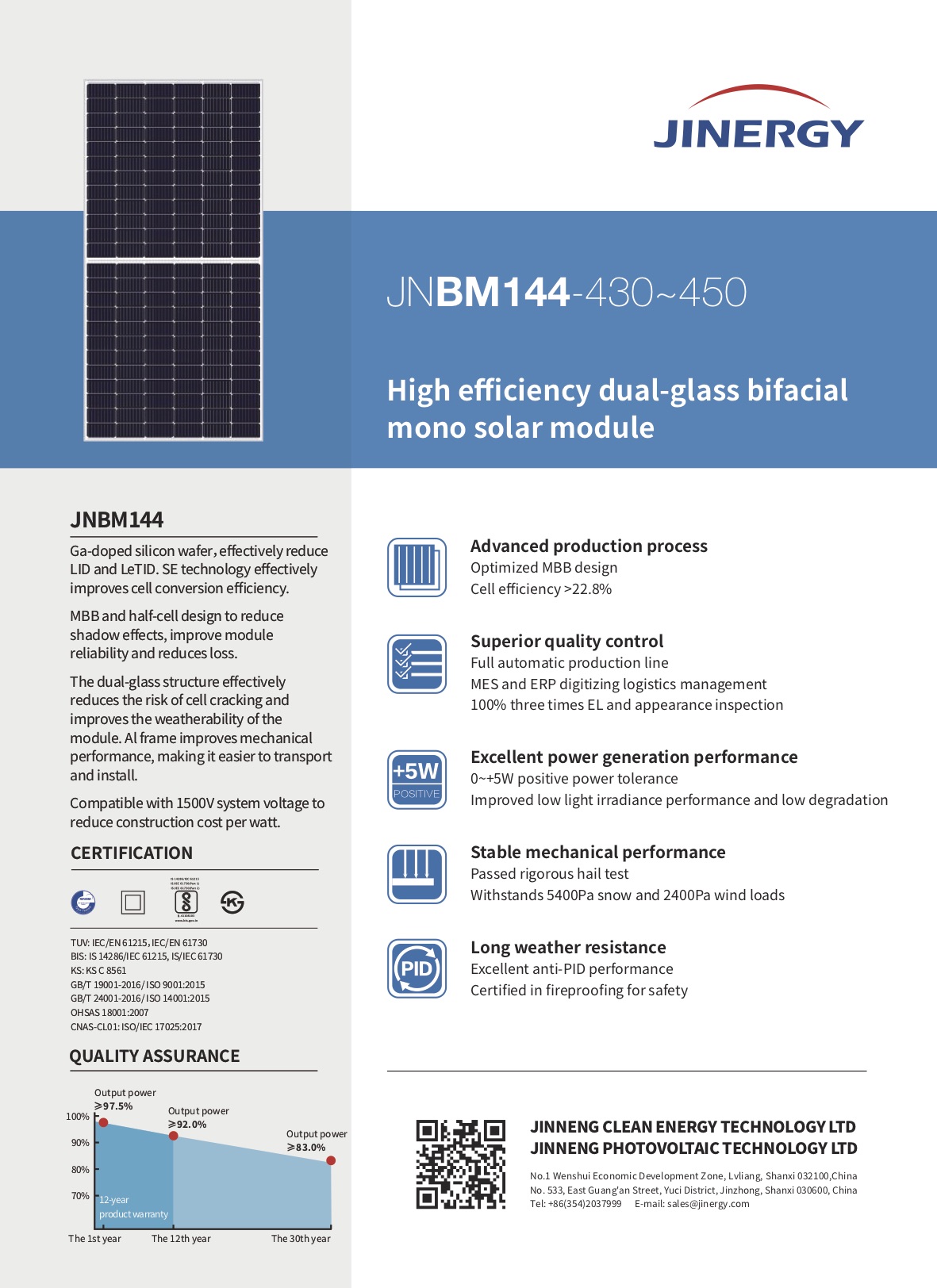

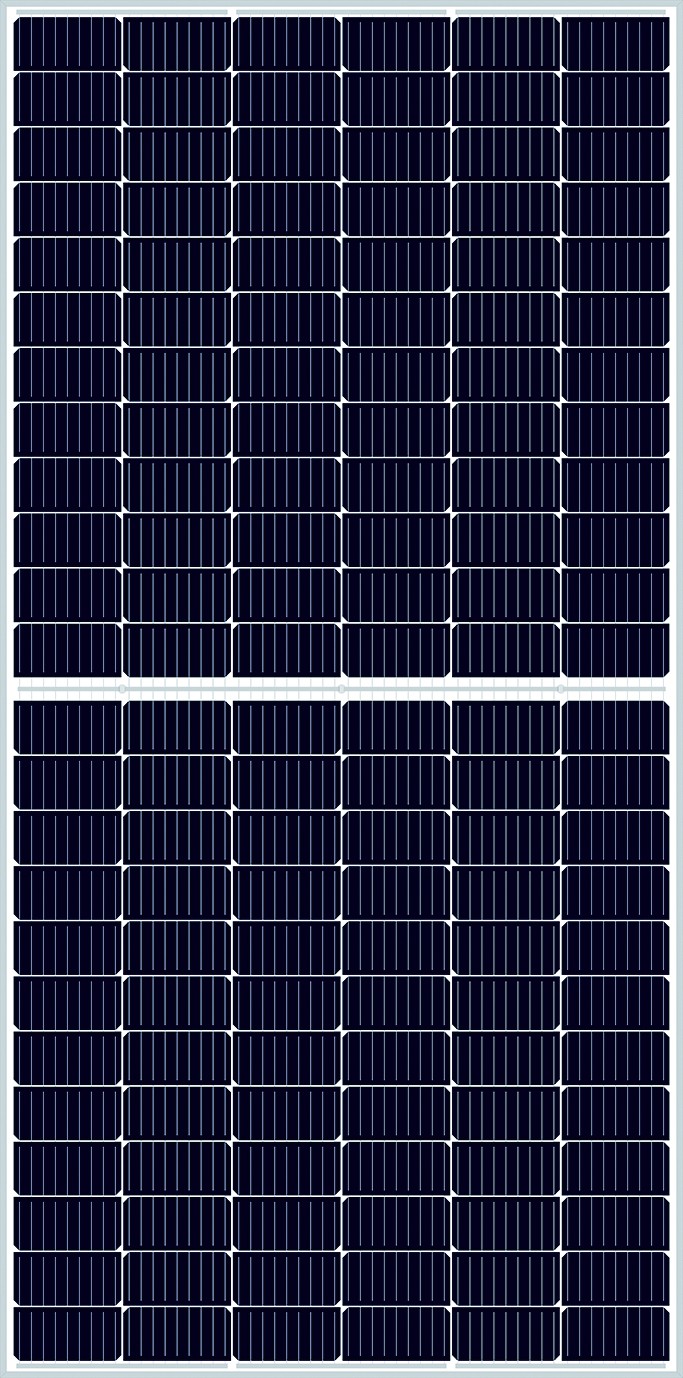

Dual-Glass Bifacial Monocrystalline Solar Panel
This high-efficiency solar panel features Ga-doped silicon wafers and SE technology to enhance cell conversion. The dual-glass structure improves weatherability and reduces the risk of cell cracking.
Technical Specifications
Overview
High-Efficiency Bifacial Solar Module
This dual-glass bifacial monocrystalline solar module is engineered for optimal energy yield in diverse environments. Utilizing Ga-doped silicon wafers and SE technology, the module effectively minimizes LID and LeTID effects while maximizing cell conversion efficiency. The robust dual-glass structure and aluminum frame design enhance durability, weatherability, and mechanical performance, ensuring reliable operation even under heavy snow and wind loads. Compatible with 1500V systems, this module offers a sustainable, high-performance solution for utility-scale and commercial projects.
Key Features
Performance Metrics
- Advanced Technologies
- Bifacial DesignDual-Glass StructureHalf-Cell DesignMBB TechnologyGa-doped SiliconSE Technology

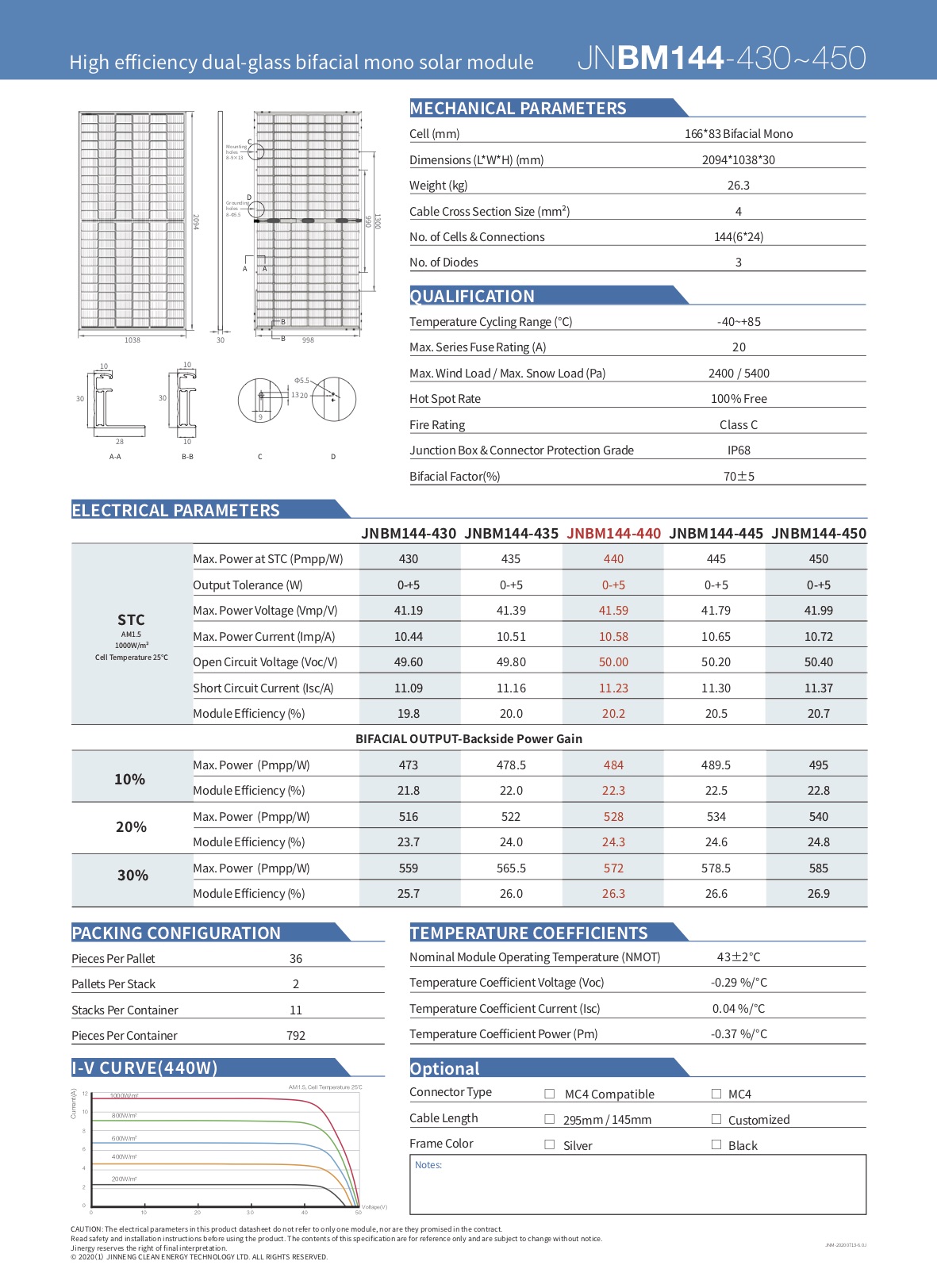

Mechanical Specifications
Physical Characteristics

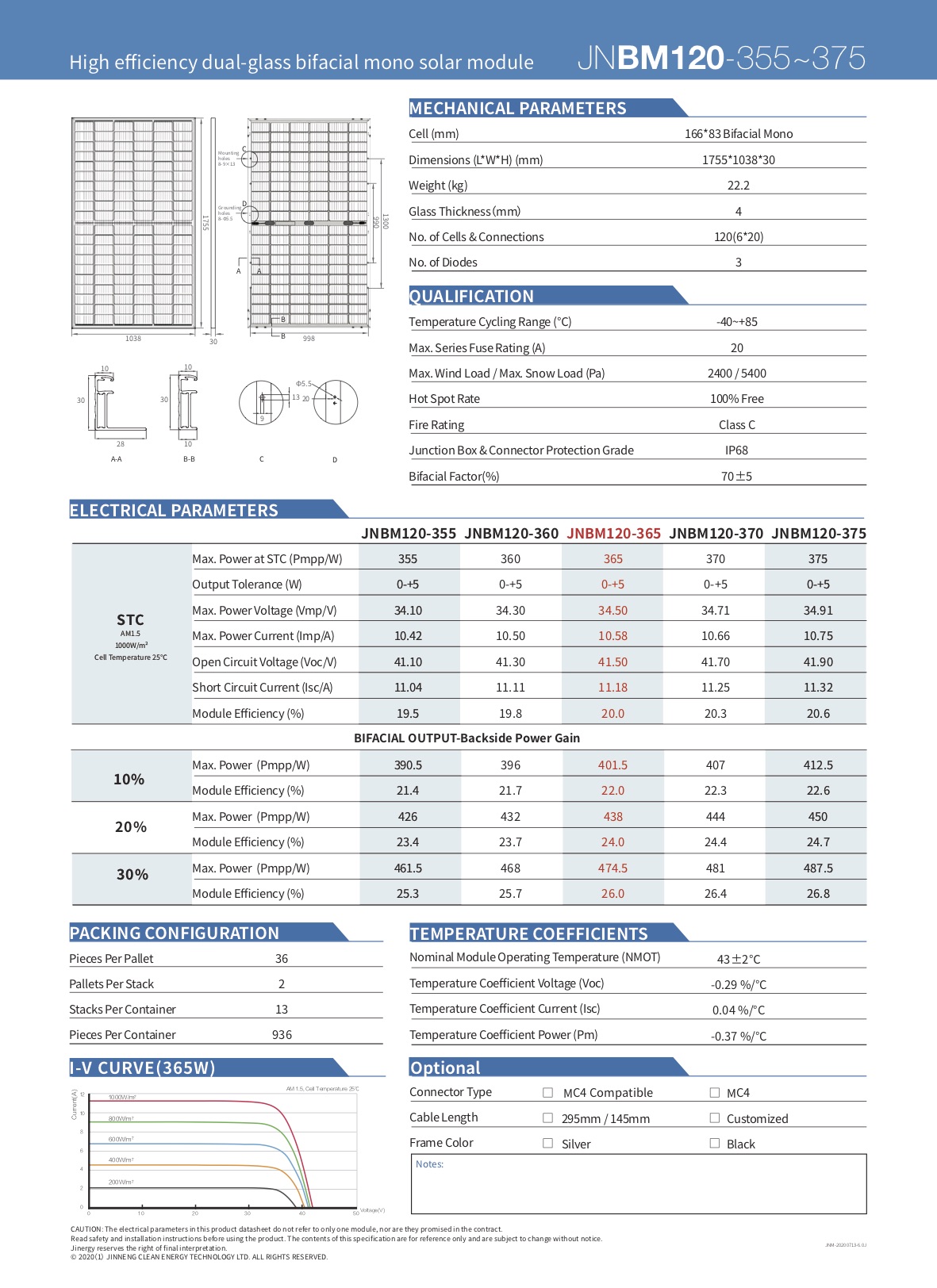

| Parameter | JNBM120 Series | JNBM144 Series |
|---|---|---|
| Dimensions (mm) | 1755 x 1038 x 30 | 2094 x 1038 x 30 |
| Weight (kg) | 22.2 | 26.3 |
| Cell Configuration | 120 (6x20) | 144 (6x24) |
| Glass Thickness (mm) | 4 | 4 |
Environmental Protection
Warranty & Quality
Linear Power Output Guarantee
- 1st Year: ≥97.5%
- 12th Year: ≥92.0%
- 30th Year: ≥83.0%
- Product Warranty
- 12 years
Electrical Parameters
Temperature Coefficients
| Parameter | Value |
|---|---|
| NMOT | 43 ± 2 °C |
| Voc Coefficient | -0.29 %/°C |
| Isc Coefficient | 0.04 %/°C |
| Pm Coefficient | -0.37 %/°C |
