Technical Specifications
Product Overview
Precision Hydraulic Control
This dual-circuit hydraulic brake valve is engineered for demanding industrial and mobile applications, including construction, forestry, and agricultural machinery. Featuring an adjustable lever for precise braking force modulation, the valve provides enhanced safety and redundancy through its dual-circuit design. Its robust construction ensures reliable performance even under high-pressure operating conditions.

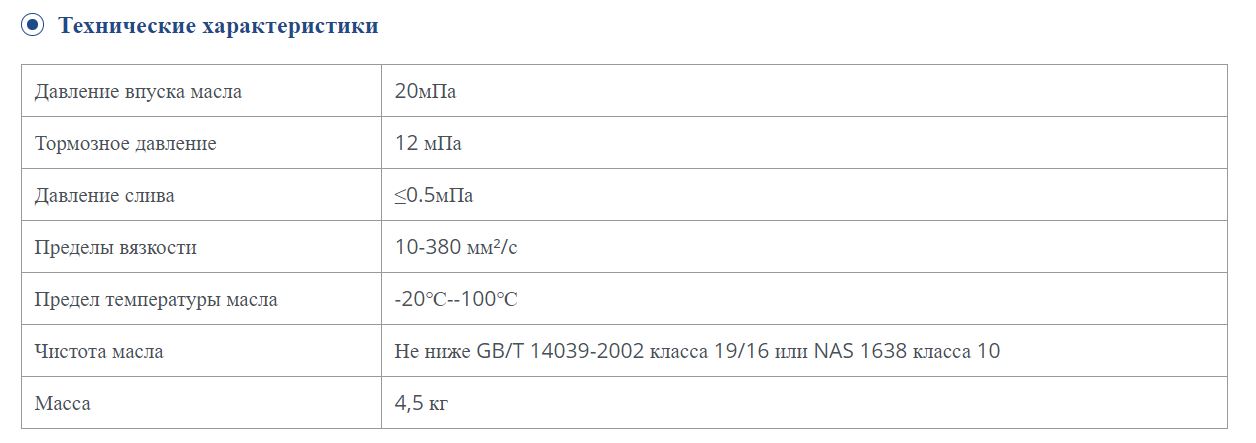

Technical Specifications
Operating Performance
20 MPa
Oil Inlet Pressure
12 MPa
Braking Pressure
4.5 kg
Weight
Operating Limits
- Drain pressure: ≤0.5 MPa
- Viscosity limits: 10-380 mm²/s
- Temperature range: -20°C to 100°C
- Oil Cleanliness Standards
- GB/T 14039-2002 Class 19/16NAS 1638 Class 10

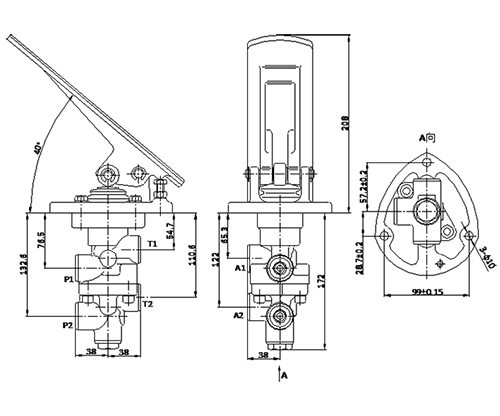

Dimensions and Geometry
Key Dimensions
| Metric | Value |
|---|---|
| Overall Height | 208 mm |
| Mounting Holes | 3 x φ10 mm |
| Lever Angle | 40 degrees |
Applications
Suitable Industries
Construction MachineryMaterial HandlingForestry EquipmentAgricultural Machinery
