Dual-Circuit Hydraulic Brake Valve
This hydraulic brake valve is used for construction equipment, material transfer vehicles, forestry and agricultural machinery, and urban vehicles. It is designed for modulating brake systems.
Technical Specifications
Product Overview
Dual-Circuit Modulating Brake Valve
The HBV-L10F-00 is a high-performance dual-circuit hydraulic brake valve engineered for precise modulating brake control. Designed for demanding environments, this valve is suitable for a wide range of machinery, including construction equipment, material transfer vehicles, forestry and agricultural machinery, and urban vehicles. Its robust construction ensures reliability and consistent performance in heavy-duty hydraulic braking systems.

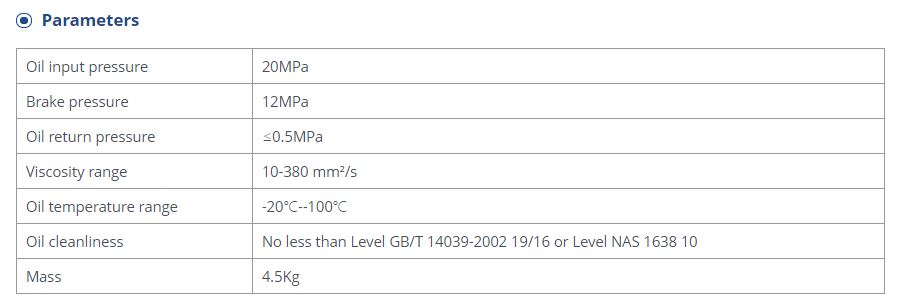

Technical Specifications
Operating Pressures
20 MPa
Oil Input Pressure
12 MPa
Brake Pressure
0.5 MPa
Max Oil Return Pressure
Fluid Requirements
| Parameter | Specification |
|---|---|
| Viscosity Range | 10-380 mm²/s |
| Temperature Range | -20°C to 100°C |
| Cleanliness (GB/T 14039-2002) | 19/16 |
| Cleanliness (NAS 1638) | 10 |
Physical Properties
Physical Specifications
4.5 Kg
Mass
Applications
- Compatible Machinery
- Construction EquipmentMaterial Transfer VehiclesForestry MachineryAgricultural MachineryUrban Vehicles
