Technical Specifications
Product Overview
Professional Wireless Audio Solution

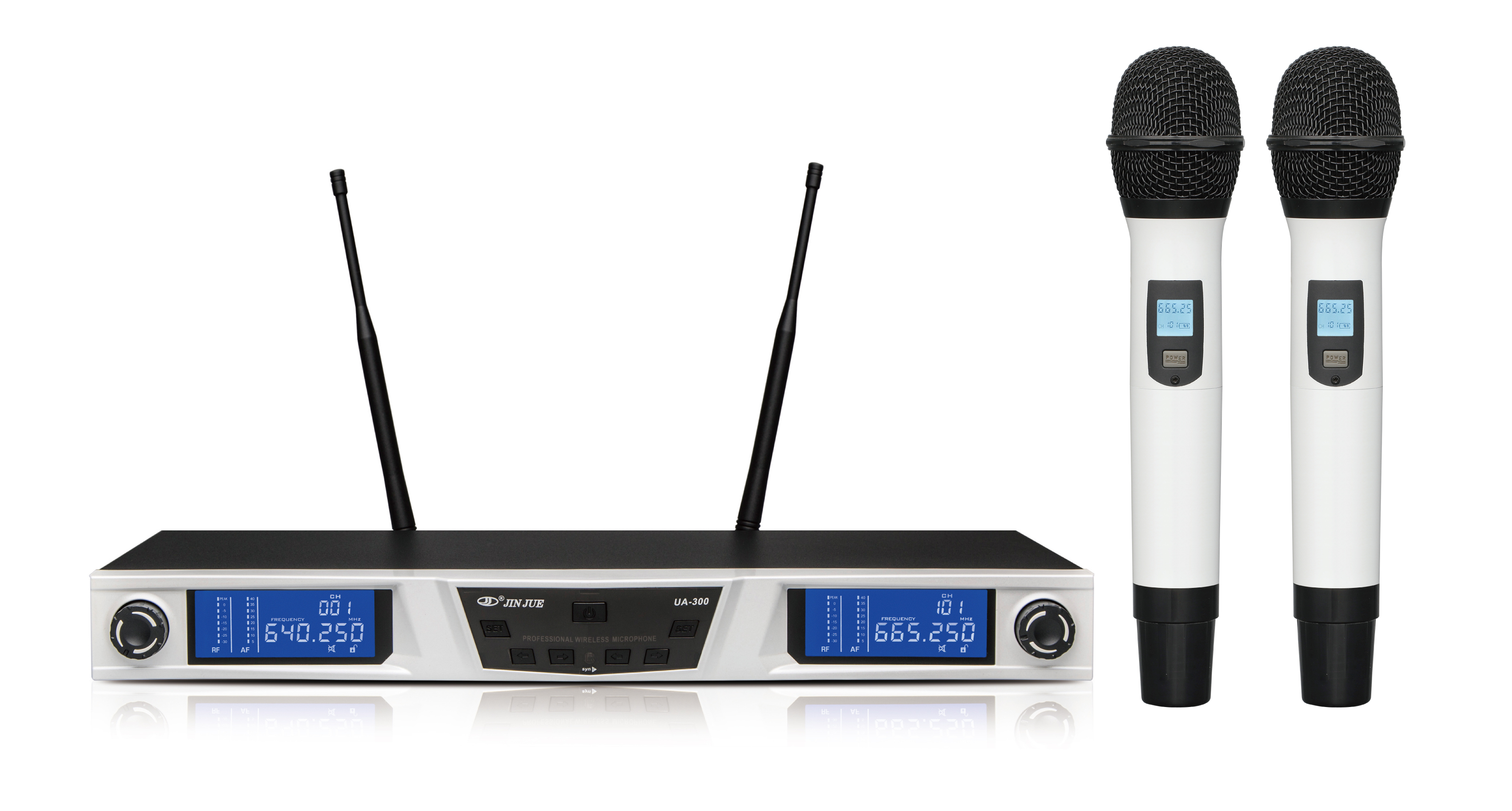

This dual-channel wireless microphone system is engineered for reliable, high-fidelity audio transmission in professional environments. Featuring phase-locked loop (PLL) control and advanced squelch circuits, it ensures signal stability and noise reduction for stage, presentations, and public speaking. With a robust 200-foot operating range and wide frequency response, it provides professional-grade clarity for any venue.
Performance Metrics
Frequency Response
40 Hz
Frequency Range Start
18 kHz
Frequency Range End
- Working Distance
- 200 feet
Technical Specifications
Rejection Performance
| Parameter | Value |
|---|---|
| Image Rejection | 85 dB |
| Spurious Rejection | 75 dB |
- Carrier Wave Frequency
- 600-870 MHz
- Signal-to-Noise Ratio
- 105 dB
- Total Harmonic Distortion
- <0.5% @ 1KHz
- Carrier Wave Stability
- 10 PPM
Connectivity & Power
Output Interfaces
- 2 XLR Balanced Sockets
- 6.35mm Unbalanced TRS Socket
- Power Requirements
- 12-18V DC, 0.5A External Supply
Physical Dimensions
- Receiver Dimensions (LxHxD)
- 420 x 45 x 205 mm
