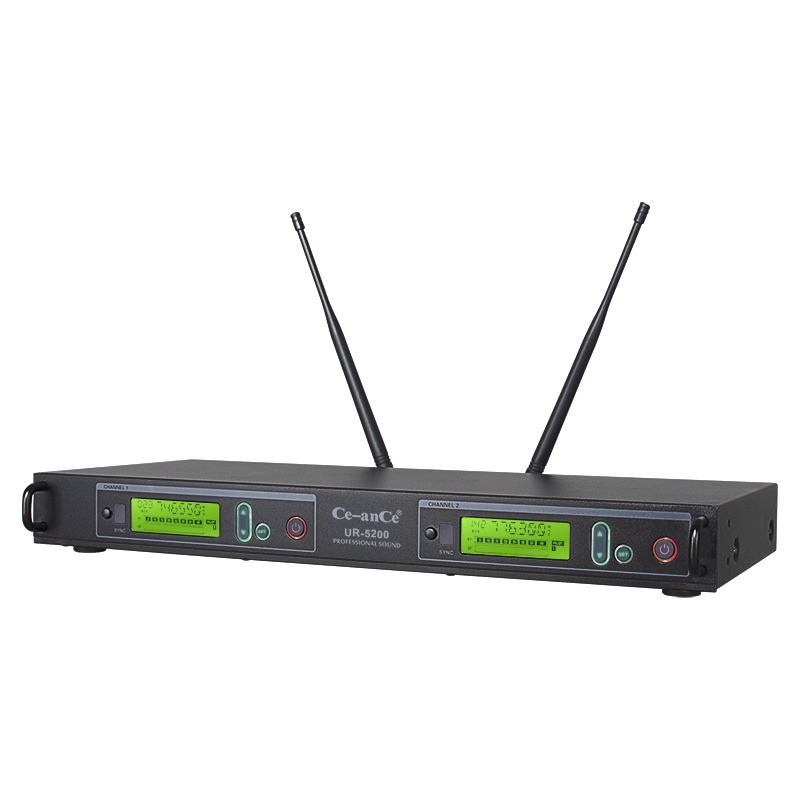

Dual-Channel Wireless Microphone System
This professional wireless microphone system features a dual-channel receiver with individual displays and antennas for stable signal transmission. It offers diverse microphone options, including handheld and headset microphones, with adjustable audio outputs for versatile connectivity.
Technical Specifications
Product Overview
Professional Wireless Audio
The UR-5200 is a high-performance, dual-channel wireless microphone system engineered for professional sound reinforcement. Utilizing true diversity technology with PLL synthesis, this system ensures maximum range and dropout protection even in demanding environments. Featuring 100 selectable frequencies and IR synchronization, it offers reliable connectivity and flexibility for diverse professional audio applications.
Technical Performance
Key Performance Indicators
150 m
Line-of-Sight Range
200 ch
Total Selectable Channels
105 dB
Signal-to-Noise Ratio
- Frequency Range
- 450-952MHz
- Total Harmonic Distortion
- 0.5 %
- Frequency Response
- 40Hz - 18KHz
Operation & Environment
Power Requirements
- Receiver: DC 12V 1000mA
- Microphone: 2x AA Alkaline Batteries
- Operating Temperature
- -10 to +50 °C
Features
- System Highlights
- True DiversityPLL SynthesizedIR SyncLCD Display
