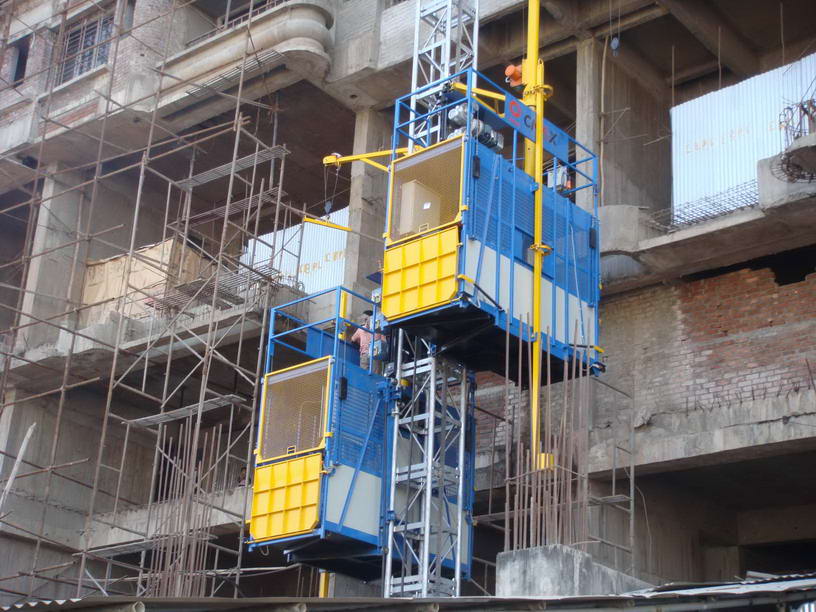

Dual Cage Construction Elevator
This dual cage construction elevator is engineered for the efficient vertical transportation of personnel and materials on high-rise construction sites. Featuring a robust modular design, it utilizes a heavy-duty mast system and high-efficiency electric motors to ensure reliable operation. With comprehensive safety mechanisms, including anti-drop devices and emergency cut-offs, this hoist provides a secure and productive solution for demanding project environments.
Cage Specifications
Cage Dimensions
| Model Capacity | Length (m) | Width (m) | Height (m) |
|---|---|---|---|
| 1.2T and 2.0T | 3 | 1.5 | 2.5 |
| 2.7T and 3.2T | 3.8 | 1.5 | 2.5 |
Cage Construction Materials
- Base plate: Checked steel
- Sidewall: Aluminum
- Upper half: Aluminum perforated
- Lower half: Aluminum solid
Mast and Structure
Mast Section Specifications
650 mm
Section Width
1,508 mm
Section Height
4.5 mm
Steel Thickness
- Structural Details
- Steel Grade Q235Painted Finish8.8 Grade Joining BoltsSelf-Locking Nuts
Safety Systems
Integrated Safety Devices
- Anti-Drop Safety Device
- Up/Down Stop Limits
- 3-Phase Cut-off ELCB
- Limit Switches on Side and Roof Doors
- Emergency Cut-off Button
- Audible Horn
Electrical and Drive
Drive and Control
- Drive Motor Protection: IP55
- Power Control: Telemechanique, ABB or SIEMENS contactors
- 4-Roller Drive Trolley
Finishing and Protection
Standard Color
Blue (RAL 5002)
- Surface Treatment
- Sand BlastingEpoxy Resin CoatPowder Coating
