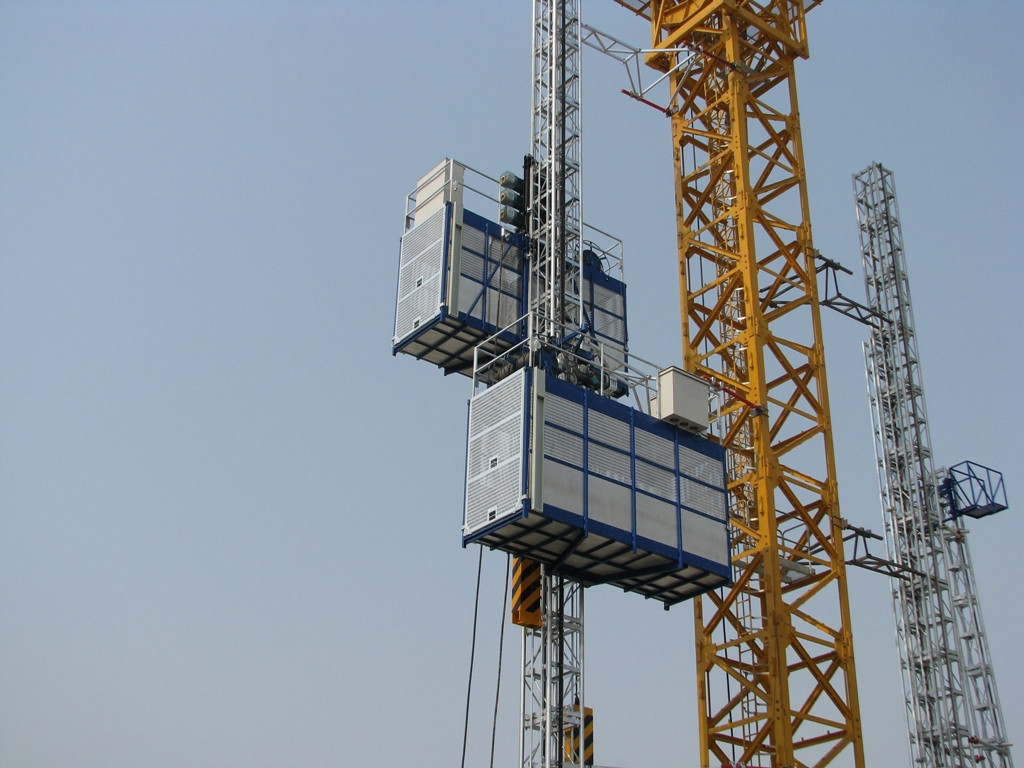

Dual Cage Building Hoist
This building hoist provides vertical transportation of materials and personnel on construction sites. The dual cage configuration enhances efficiency and productivity.
Technical Specifications
Overview
High-Efficiency Dual Cage Hoist
This professional-grade dual cage building hoist is engineered for vertical transportation of personnel and materials in high-rise construction projects. Featuring a robust modular design with high-strength steel construction, it offers exceptional durability and adaptability to varying building heights. With advanced safety systems including anti-drop protection and multiple limit switches, this hoist ensures reliable performance and operator safety in demanding environments.
Technical Specifications
Mast Section Details
| Attribute | Specification |
|---|---|
| Dimensions | 650 x 650 x 1508 mm |
| Thickness | 4.5 mm |
| Steel Grade | Q235 |
| Coating | Painted |
Cage Dimensions
| Model Capacity | Dimensions (L x W x H) |
|---|---|
| 1.2T and 2.0T | 3.0 x 1.5 x 2.5 m |
| 2.7T and 3.2T | 3.8 x 1.5 x 2.5 m |
- Motor Protection Rating
- IP55
- Control Power Components
- TelemechaniqueABBSIEMENS
Design & Construction
Cage Construction Materials
- Base plate: Checked steel
- Sidewall: Aluminum
- Roof: Checked steel
- Roof Hand Railing: Galvanized box tube
Painting & Finish
- Surface Treatment: Sand blasting
- Coating: 2 layers Epoxy resin
- Color: RAL 5002 (Blue)
Safety Features
Integrated Safety Systems
Anti-Drop Safety DeviceUp/Down Limit Switches3-Phase Cut-offELCB at GroundEmergency Cut-offMechanical/Electrical Interlock
Buffer Type by Model
| Model | Buffer Type |
|---|---|
| 1.2T and 2.0T | Spring |
| 2.7T and 3.2T | Hydraulic |
