DRM AM FM Radio Receiver

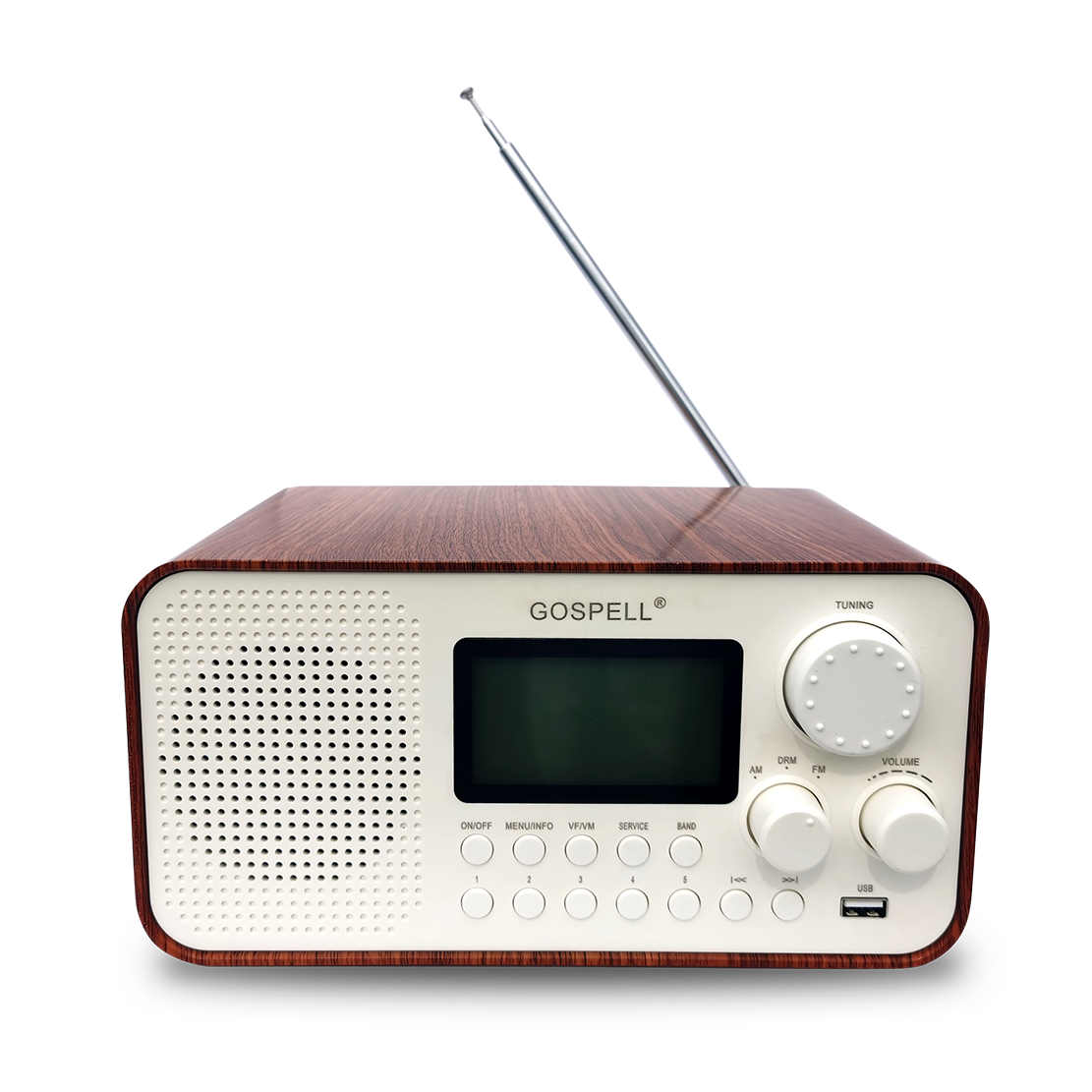

This radio receiver supports DRM, AM, and FM bands. It includes a digital display, tuning knob, and multiple buttons for band selection and menu navigation.
Technical Specifications
Product Overview
Versatile Digital and Analog Radio Receiver
The GR-216 is a high-performance digital radio receiver designed to support DRM, AM, and FM broadcasting standards. This unit combines a classic wood-like aesthetic with modern digital capabilities, offering professional-grade reception across multiple frequency bands. With flexible power options and comprehensive connectivity, it is an ideal solution for listeners seeking reliable access to international and local radio services.
Key Features
Primary Capabilities
3 DRM/AM/FM
Supported Bands
230 V
AC Input
9 V
DC Input
Frequency Range
Frequency Coverage
| Band | Frequency Range |
|---|---|
| DRM / AM (MW) | 522 - 1710 KHz |
| DRM / AM (SW) | 2.3 - 26.1 MHz |
| FM | 87.5 - 108 MHz |
Connectivity & Interface
Input/Output Interfaces
- USB Port
- Headphone Jack
- Audio R/L Outputs
- Internal/External Antenna Switch
- Dedicated AM Antenna Connection
- Dedicated FM Antenna Connection
Control & Display
- User Interface
- Digital DisplayTuning KnobVolume ControlMenu/Info ButtonVF/VM ToggleService SelectionBand Selector
Power Specifications
Power Requirements
| Source Type | Specification |
|---|---|
| AC Input | 230V / 50Hz |
| DC Input | 9V / 2.5A |
Compliance
Certifications
CE
Physical Design
- Exterior Finish
- Retro wood-like finish
