Overview

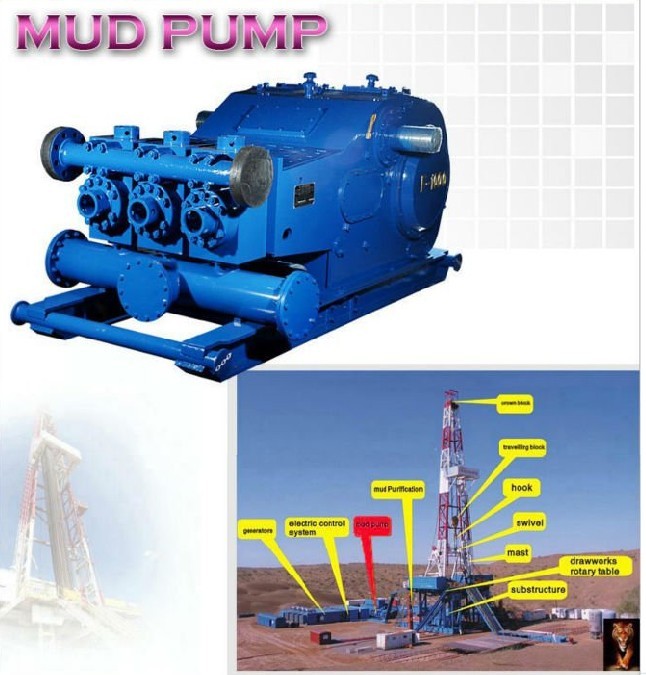

High-Performance F-500 Mud Pump
The F-500 mud pump is a horizontal triplex single-acting pump designed for demanding drilling operations. It features a robust herringbone gear system and forced lubrication to ensure reliability and longevity in the field. With a rated input power of 500HP, this unit provides consistent fluid displacement for various drilling requirements.
Technical Specifications
Rated Input Power
500 HP
Rated Input Power
- Gear Type
- Herringbone Gear
- Gear Ratio
- 4.286:1
- Rated Stroke
- 165
- Stroke Length
- 7.5"
- Lubrication System
- Forced & Splashing
- Valve Cavity
- API-5#
Physical Dimensions
- Weight
- 9770 kg
- Overall Dimensions (L×W×H)
- 3658 × 2709 × 2231 mm
Connections
- Inlet Connection Size
- 8"
- Outlet Connection Size
- 4" Flange 5000psi
Performance Data
Liner Size and Pressure Rating
| Liner Size (in) | 6-3/4 | 6-1/2 | 6 | 5-1/2 | 5 | 4-1/2 |
|---|---|---|---|---|---|---|
| Pressure Rating (Mpa) | 9.25 | 9.97 | 11.7 | 13.93 | 16.85 | 20.81 |
