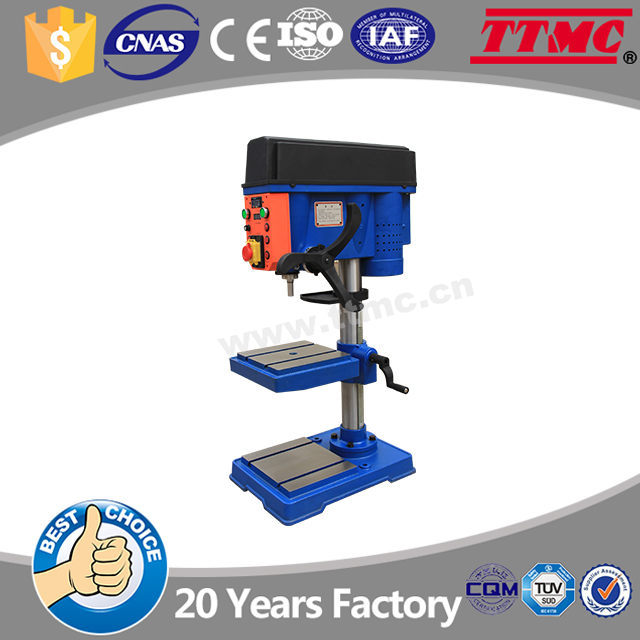

Drilling and Tapping Machine
This drilling and tapping machine is engineered for precision and efficiency in a range of machining tasks. Its robust design ensures stability and durability, providing accurate drilling and tapping performance.
Technical Specifications
Overview
Versatile Precision Drilling and Tapping
This industrial-grade machine offers dual functionality for both drilling and tapping, making it a versatile addition to any professional workshop. It features a high-torque brushless direct drive motor that ensures energy efficiency, long service life, and quiet operation. With a high-precision spindle and integrated digital displays for speed and depth, operators can achieve consistent, accurate results across various machining tasks.
Key Features
Performance Highlights
16 mm
Max Drilling
12 M
Max Tapping
750 W
Motor Power
0.005 mm
Spindle Precision
- Included Accessories
- DROKeyless Drill Chuck
Technical Specifications
Spindle & Drive System
| Parameter | Value |
|---|---|
| Spindle Speed Range | 300-1800 rpm |
| Spindle Taper | B16 |
| Spindle Travel | 85 mm |
| Chuck Size | 1-16 mm |
| Motor Type | Brushless Direct Drive |
Physical Dimensions
Work Area & Capacity
| Feature | Measurement |
|---|---|
| Table Size | 280 x 280 mm |
| Base Size | 360 x 500 mm |
| Column Diameter | 72 mm |
| Spindle to Table Distance | 435 mm |
| Spindle to Base Distance | 635 mm |
Control & Safety
Control System
- Digital display for variable speed control
- Digital drilling depth display (mm/inch)
- Emergency stop with 24V control
- Laser alignment guide
- Drilling and Tapping mode selection
- Motor micro speed adjustment
Compliance & Safety
CEISO24V Control
Logistics
Shipping Information
| Metric | Value |
|---|---|
| Net Weight | 55 kg |
| Gross Weight | 60 kg |
| Packing Size | 111 x 36 x 58 cm |
