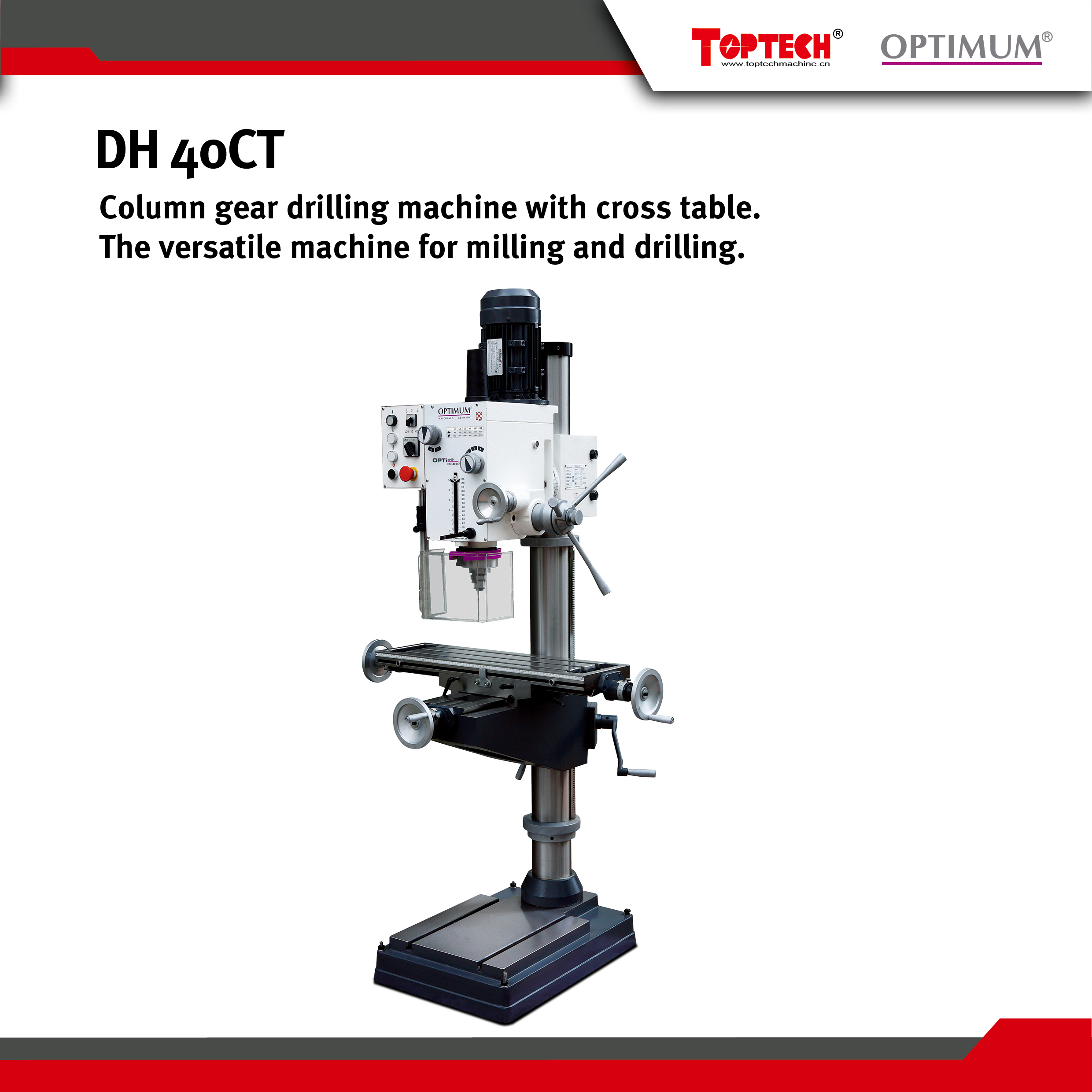

Drilling and Milling Machine with Geared Head
This drilling and milling machine has a heavy, solid cast design and a large XY table. Its polished gearwheels run in an oil sump for smooth action.
Technical Specifications
Overview
Versatile Geared Head Drilling and Milling Machine
This heavy-duty machine features a solid cast design with polished gearwheels running in an oil sump for exceptionally smooth operation. Designed for both precision milling and drilling, it offers a large speed range and a height-adjustable gear head to accommodate diverse workpieces. The integrated XY cross table and pivoting head provide the flexibility required for complex workshop applications and small-scale manufacturing.
Performance Metrics
Key Capabilities
40 mm
Drilling Capacity (Cast Iron)
32 mm
Drilling Capacity (Mild Steel)
76 mm
Face Mill Capacity

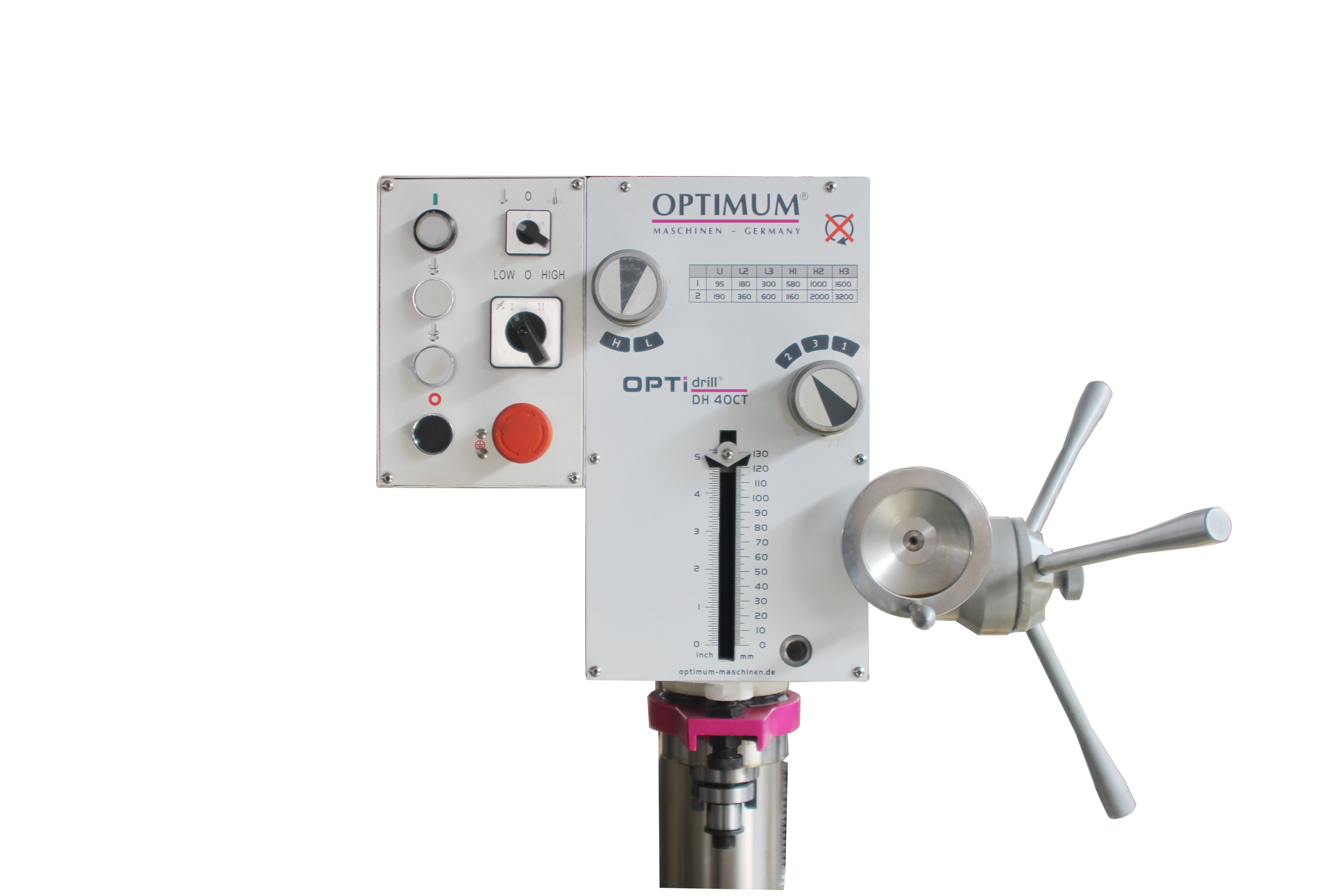

Spindle & Head
- Spindle Speed Range
- 95 - 3,200 rpm
- Head Tilt Range
- ± 45° (Left/Right)
- Spindle Travel
- 120 mm
- Available Spindle Tapers
- MT3MT4R8ISO30
Work Table
- Working Table Size
- 730 x 210 mm
- Table Cross Travel (X/Y)
- 490 x 180 mm
- T-Slot Configuration
- 3 slots, 14 x 63 mm
Technical Features
Standard Features
- Two-stage industrial quality electric motor
- Polished gearwheels in oil sump
- Clockwise/Anti-clockwise rotation
- Drilling depth stop with scale
- Precisely adjustable V-ledges
- Height adjustable gear head and table
Physical Dimensions
- Overall Dimensions
- 1060 x 750 x 1760 mm
- Net Weight
- 360 kg
- Base Size
- 670 x 470 mm
Clearances
Machine Clearances
| Measurement Parameter | Distance |
|---|---|
| Spindle to Column | 278 mm |
| Max Spindle to Table | 600 mm |
| Max Nose to Base | 1180 mm |
