Product Overview
Versatile Precision Drilling and Milling

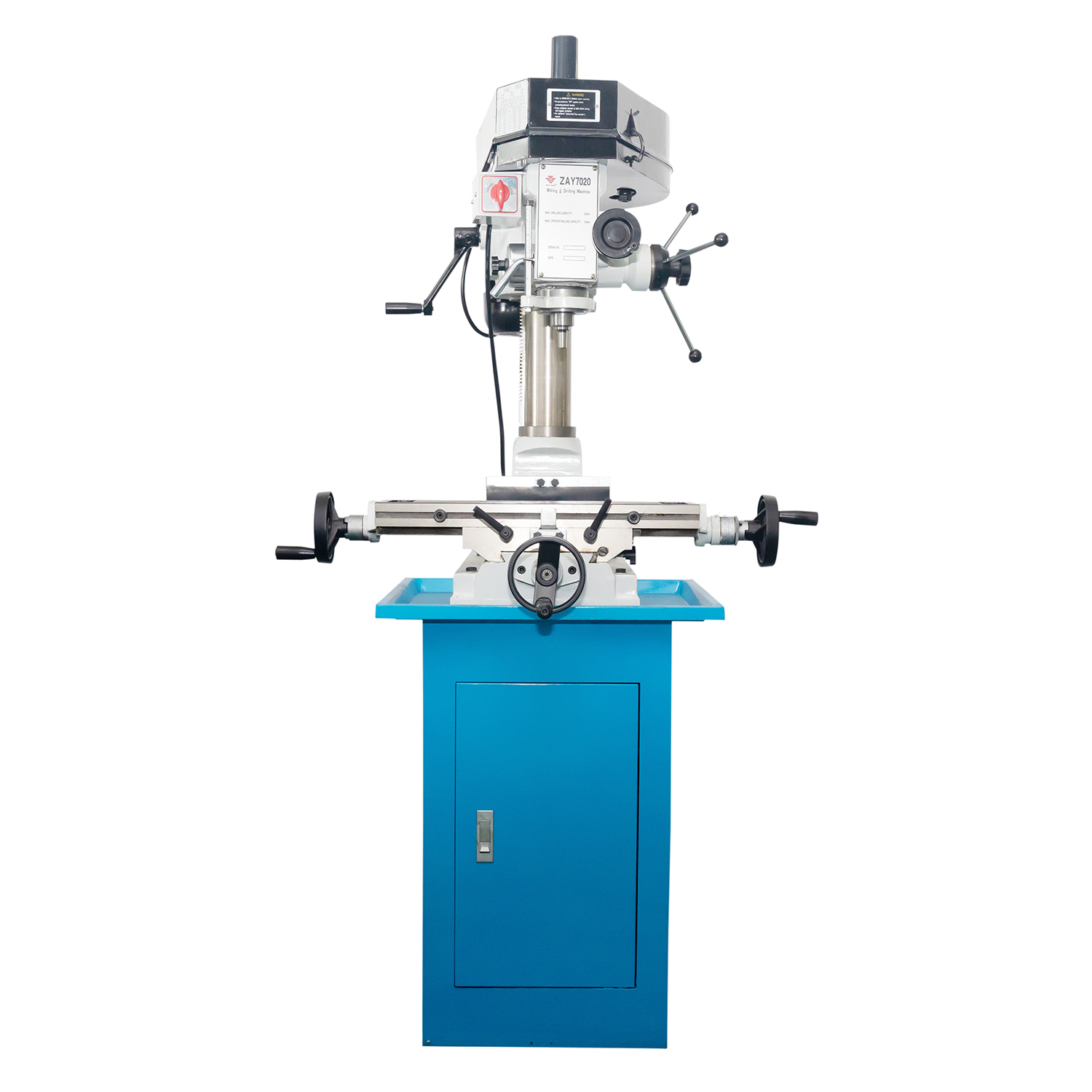

This series of Drilling and Milling Machines offers a versatile solution for professional metalworking, combining the functionality of a drill press and a milling machine. Designed with strong rigidity for powerful cutting and precise positioning, these machines feature a 360° horizontally swiveling headstock and micro-feed precision. They are ideal for various machining tasks including drilling, milling, and tapping in workshops or educational environments.
Key Features
Key Features
- Headstock swivels 360° horizontally
- Micro feed precision controls
- Adjustable gibs on table for precision
- Strong rigidity for powerful cutting
- Positive spindle lock
- Precise positioning capabilities
- Safety & Control
- Emergency StopSpindle GuardT-Slot TableDepth Stop
Performance Metrics
Machining Capacities
45 mm
Max Drilling Capacity
80 mm
Max Face Milling
32 mm
Max End Milling
Technical Specifications
Model Comparison
| Item | ZAY7020 | ZAY7032 | ZAY7040 | ZAY7045 |
|---|---|---|---|---|
| Drilling capacity | 20mm | 32mm | 40mm | 45mm |
| Face milling capacity | 63mm | 63mm | 80mm | 80mm |
| End milling capacity | 20mm | 20mm | 32mm | 32mm |
| Spindle travel | 85mm | 130mm | 130mm | 130mm |
| Spindle taper | M.T.3 or R8 | M.T.3 or R8 | M.T.4 or R8 | M.T.4 or R8 |
| Motor Power | 0.55KW | 0.75KW | 1.1KW | 1.5KW |
Spindle & Table
- Spindle Speed Steps
- 12
- Headstock Swivel Angle
- 360° (Horizontal)
Logistics & Power
- Voltage/Frequency
- As per customer requirement
- 20' Container Loading
- 28 - 48 pcs (depending on model)
