Drill Bit Re-Sharpening Machine
This drill bit re-sharpening machine offers accurate and rapid grinding with easy operation. Its economical price greatly reduces costs and improves usage.
Technical Specifications
Product Overview

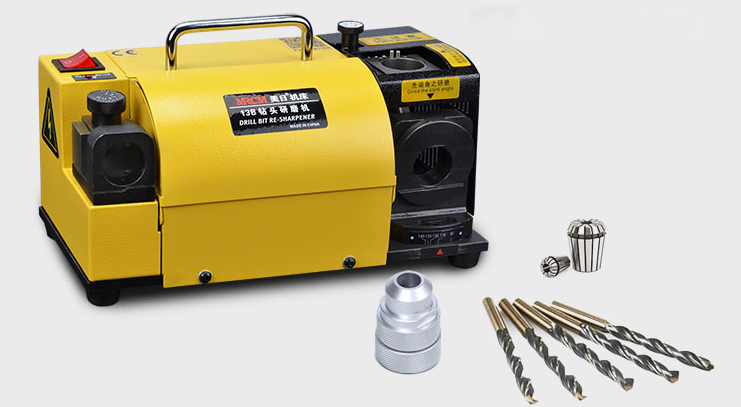

High-Precision Drill Bit Re-Sharpening Machine
This high-precision drill grinding machine is designed for rapid and accurate re-sharpening of drill bits, requiring no specialized skill for operation. It features a robust DC motor for stable, powerful performance and a diamond grinding wheel to ensure long service life and precise angle adjustment. By allowing for the adjustment of the central point size, this machine helps optimize the drill bit's cutting quality and significantly extends its operational lifespan, making it an economical choice for workshops and manufacturing facilities.
Technical Specifications
- Grinding Range
- Φ2 - Φ13 (Φ15) mm
- Point Angle
- 100° (95°) ~ 135°
- Motor Power
- 120 W
- Rotation Speed
- 4400 rpm
- Power Supply
- AC 220V
Physical Dimensions
- Dimensions
- 32 x 18 x 19 cm
- Weight
- 9 kg
Included Equipment
Standard Collets
- Φ3
- Φ4
- Φ5
- Φ6
- Φ7
- Φ8
- Φ9
- Φ10
- Φ11
- Φ12
- Φ13
Included Grinding Wheel
CBN (for HSS)
Optional Equipment
Optional Collets
- Φ2
- Φ2.5
- Φ3.5
- Φ4.5
- Φ5.5
- Φ14
- Φ15
Optional Grinding Wheel
SD (for Carbide)
