Dredge Sand Pump

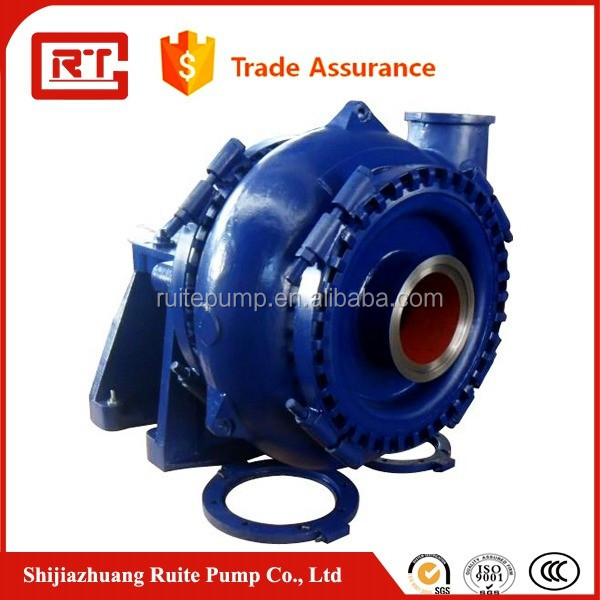

This dredge sand pump is a single-stage, single-casing, centrifugal horizontal pump. It is designed for handling highly abrasive slurries with large solids in demanding applications.
Technical Specifications
Overview

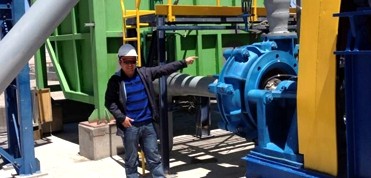

High-Efficiency Dredge Sand Pump
This single-stage, single-casing centrifugal horizontal pump is engineered for the continuous handling of highly abrasive slurries and large solids that exceed the capabilities of standard pumps. Designed for durability and energy efficiency, it is an ideal solution for demanding industrial environments including mining, metal smelting, and waterway maintenance. Its robust construction ensures reliable performance even when transporting high-concentration, abrasive materials.
Technical Specifications

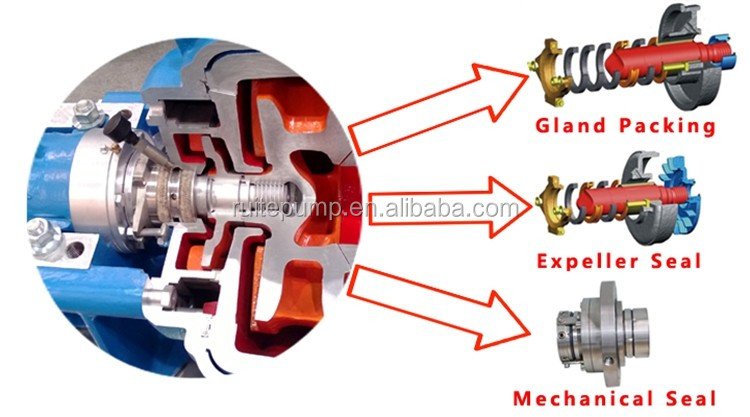

Sealing Mechanisms
Gland PackingExpeller SealMechanical Seal
- Available Models
- 6/4D-THG8/6E-THG10/8F-THG12/10G-THG14/12G-THG10/8S-THGH12/10G-THGH16/14TU-THGH
Performance Data
Dimensional Specifications
| Model | Weight |
|---|---|
| 6/4D-THG | 460 |
| 8/6E-THG | 1,120 |
| 10/8F-THG | 2,250 |
| 12/10G-THG | 4,450 |
| 14/12G-THG | 5,400 |
| 10/8S-THGH | 3,188 |
| 12/10G-THGH | 4,638 |
| 16/14TU-THGH | 12,247 |
Applications
Primary Applications
- Mining and mineral processing
- Metal smelting (explosive sludge handling)
- Waterway dredging
- River course maintenance
- Industrial slurry transport
