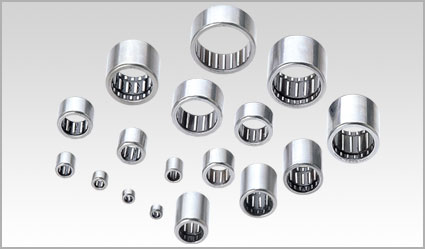

Drawn Cup Roller Clutch
Drawn cup roller clutches are compact, lightweight clutches offering maximum torque capacity within a small envelope size. These clutches are designed for press fit installation into a housing bore, simplifying installation and reducing overall assembly costs.
Technical Specifications
Product Overview
High-Performance One-Way Clutches
Drawn cup roller clutches are compact, lightweight components designed to provide maximum torque capacity within a minimal envelope size. These clutches feature a thin-walled outer race with precision-formed ramps that ensure reliable backstopping, overrunning, or indexing operations. Ideal for industrial applications like conveyors and packaging machinery, they offer instantaneous engagement and a long service life through optimized load distribution.
Technical Features
Design & Construction
- Thin-wall punched outer ring
- Plastic retainer for needle guidance
- Alloy steel inclined clamping surfaces
- Spring-loaded rollers for continuous contact
- Press-fit installation design
Performance Highlights
1 Way
Directional Torque
- Primary Functions
- OverrunningBackstoppingIndexing
Series & Compatibility
Available Series
HFHFLRCRCBFCEWCCSK
Common Model Numbers
| Series Type | Standard Sizes |
|---|---|
| HF Series | 0406, 0612, 0812, 1012, 1216, 1416, 1616, 1816, 2016, 2520, 3020, 3520 |
| HFL Series | 0308 KFR, 0408 KFR, 0606 KFR, 0615 KFR, 0806 KFR, 0822 KFR |
| RC/RCB Series | 061008, 081208, 101410, 121610, 162110, 061014, 081214 |
| EWC Series | 0406, 0606, 0608, 0809, 0812, 1010, 1012, 1209 |

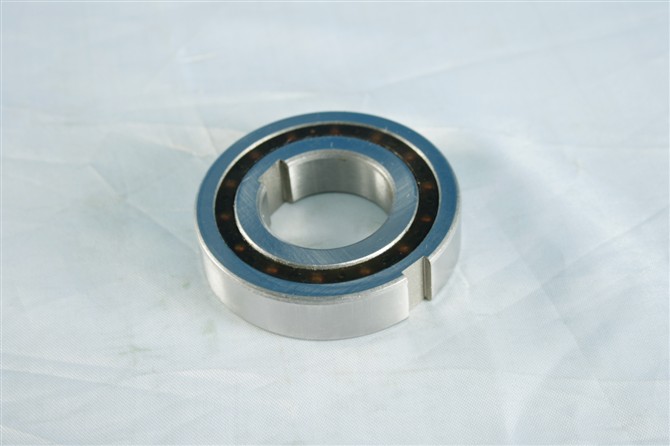

| CSK Series | 8, 12, 15, 17, 20, 25, 30, 35, 40 (Available in PP variants) |
Application Areas
Typical Applications
- Conveyor systems
- Packaging machinery
- Office equipment
- Power transmission systems
- Industrial transmissions
