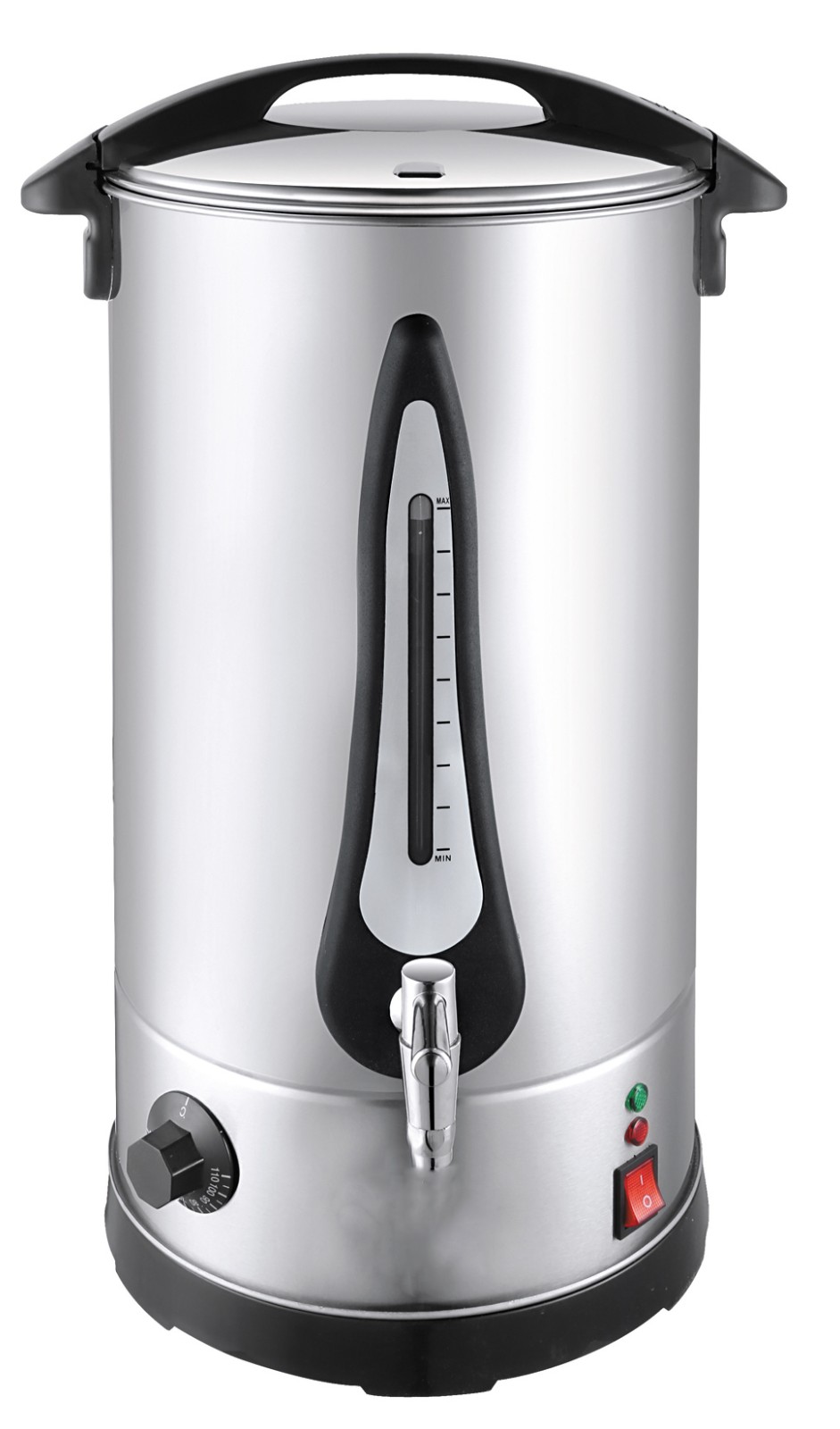

Double-Wall Electric Hot Water Boiler Urn
This electric hot water boiler features a double-wall stainless steel construction with a visible water gauge. It offers adjustable temperature control from 30℃ to 110℃, automatic shut-off, and keep-warm functions for safe and efficient operation.
Technical Specifications
Product Overview
Professional Double-Wall Electric Water Boiler
This high-capacity electric water urn is engineered for commercial environments like hotels and restaurants, featuring a double-wall construction for superior insulation and energy efficiency. It combines a durable SUS 304 stainless steel inner tank with a sleek SS201 outer shell, ensuring both hygiene and longevity. With adjustable temperature controls and multiple safety protections, it provides a reliable and safe solution for large-scale hot water requirements.
Performance & Capacity
Key Performance Metrics
110 °C
Max Temperature
2,000 W
Max Power
35 L
Max Capacity
Technical Specifications
Model Specifications Table
| Capacity (L) | Power (W) | Voltage (V) | Weight (KG) |
|---|---|---|---|
| 11 | 1,500 | 220 | 3 |
| 12 | 1,500 | 220 | 3.3 |
| 15 | 1,500 | 220 | 3.5 |
| 20 | 1,500 | 220 | 4 |
| 30 | 2,000 | 220 | 4.5 |
| 35 | 2,000 | 220 | 6 |
Construction & Design
Material Composition
- Inner Tank: SUS 304 Stainless Steel
- Outer Shell: SS201 Stainless Steel
- Liner Thickness: 0.4mm
- Stainless steel tap and cover with safety lock
- Plastic base with integrated maintenance window
Safety & Control
- Safety & Control Systems
- Automatic Shut-offKeep-Warm FeatureDouble Overheat ProtectionAdjustable Temperature (30°C-110°C)Viewable Water Gauge
Maintenance & Service
Maintenance Design
- Detachable heating plate for easy cleaning
- Central maintenance window in base
- Replaceable wearing parts (thermostat, switch, handles)
