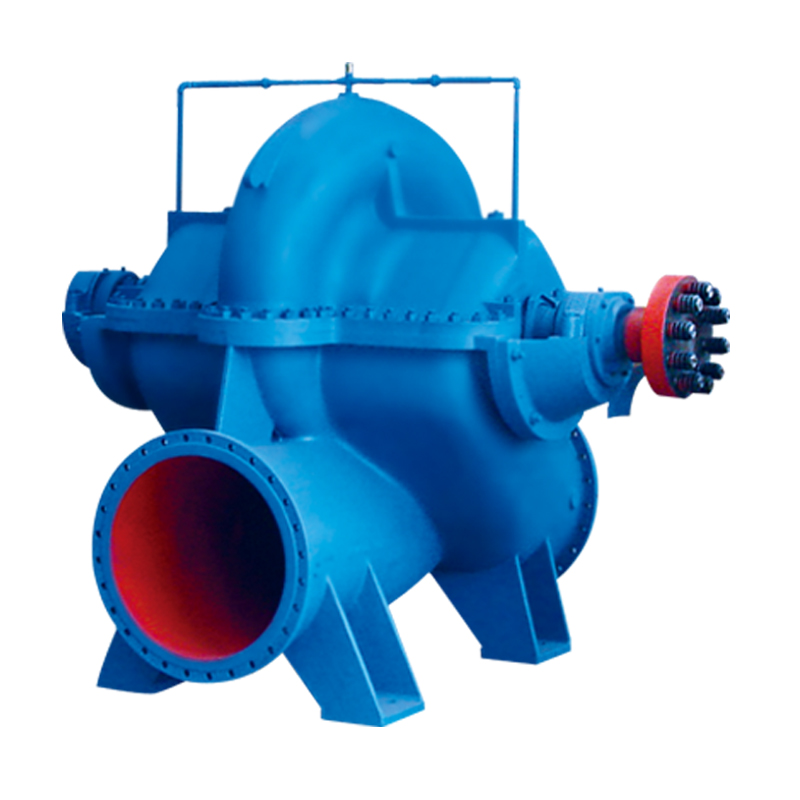

Double Suction Split Casing Pump
The SLO SLOW series pump features a split casing design and a double suction impeller. This single-stage pump is suitable for high-volume fluid transfer, offering easy maintenance and balanced hydraulic loads.
Technical Specifications
Overview
High-Performance Double Suction Split Casing Pump
The SLO SLOW series is a single-stage double suction split casing pump designed for high-efficiency liquid delivery in demanding industrial environments. Featuring a unique hydraulic model and a compact, stable structure, it offers significant anti-cavitation performance and easy maintenance without disturbing piping. This pump is an ideal solution for large-scale water supply, irrigation, and industrial circulating systems requiring long-term reliability.
Key Performance Metrics
Performance Highlights
30,000 m3/h
Max Flow Rate
200 m
Max Head
2.5 MPa
Working Pressure
Technical Specifications
- Outlet Diameter
- 80 to 1400 mm
- Max Working Temperature
- 105 ℃
- Permissible Solid Content
- 80 mg/L
- Allowable Testing Pressure
- 3.75 Mpa
Design & Construction
Design Features
- Compact and stable split casing design
- Double suction impeller for balanced axial force
- Precision casting with bright inner surfaces for high efficiency
- Horizontally or vertically split casing for easy maintenance
- High-grade mechanical or packing seals
- Seal Service Life
- Up to 8000 hours without leakage
Applications
- Target Applications
- WaterworksAir-conditioning CirculationBuilding Water SupplyIrrigationDrainage StationsPower StationsIndustrial Water SystemsFire FightingShipping Industry
Installation
Installation Options
Vertical TypeHorizontal Type
