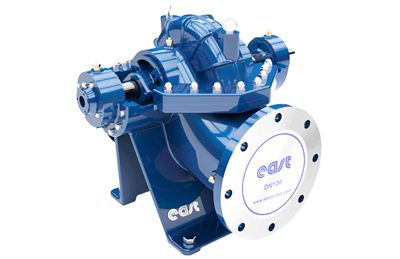

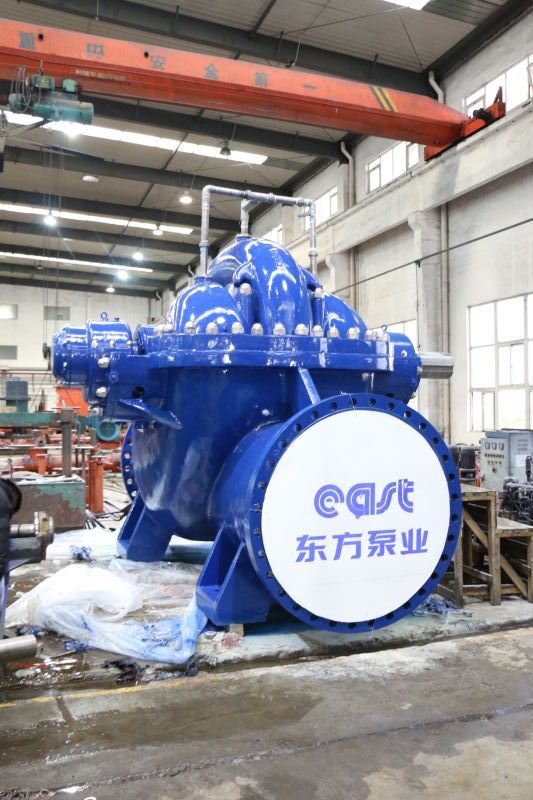

Double Suction Split Case Centrifugal Pump
This split case centrifugal pump is engineered for high flow rates and efficient operation. Its double-suction impeller minimizes axial thrust and extends bearing life.
Technical Specifications
Overview
High-Performance Split Case Centrifugal Pump
The DFSS series is a high-capacity, double-suction centrifugal pump engineered for efficient operation in large-scale water transport applications. Its split-case design allows for easy maintenance and inspection of internal components without disturbing the connected piping. This robust pump is ideal for municipal water supply, industrial processes, and power plants where reliability and high flow rates are critical.
Performance Highlights
Key Performance Metrics
37,000 m³/h
Max Capacity
180 m
Max Head
Technical Specifications
Available Speeds
- 2950 RPM
- 1450 RPM
- 980 RPM
- 740 RPM
- 585 RPM
- 490 RPM
- 372 RPM
- 298 RPM
- Model
- DFSS200-19/2
- Capacity Range
- 66 ~ 37000 m³/h
- Head Range
- 180 m
Design & Construction
Key Features
- Double-suction impeller for hydraulic balance
- Reduced axial thrust for extended bearing life
- Easy maintenance split-case design
- Low noise operation
- High efficiency
- Design Type
- Double Suction Split Case Centrifugal
- Materials of Construction
- Cast Iron CasingStainless Steel Impeller
Applications
Target Industries
Power PlantsWater SupplyMunicipalConstructionFire FightingMiningIrrigation
- Suitable Media
- Clean water, slightly polluted water, and low-viscosity fluids with similar chemical properties to water.
