Technical Specifications
Overview
Professional Grinding Performance

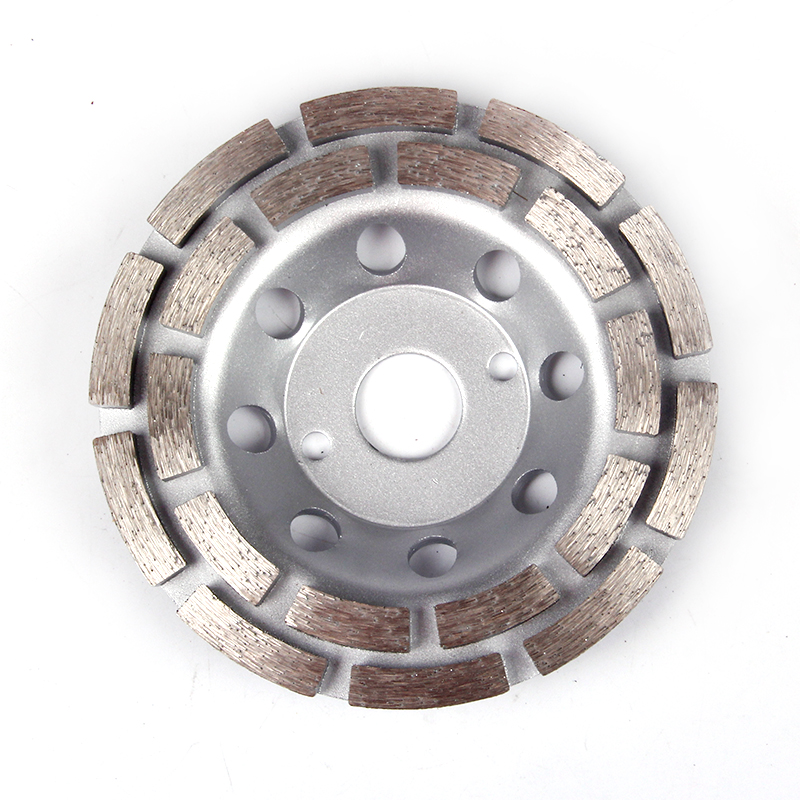

This double row diamond cup wheel is engineered for efficient material removal and surface preparation on concrete, marble, tile, and rock. Featuring a high diamond concentration and a specialized double row segment design, it delivers consistent performance, faster grinding speeds, and a smoother finish. The inclusion of cooling air holes ensures stable operation and extended tool life, making it an ideal choice for heavy-duty masonry and construction applications.
Technical Specifications
Outside Diameter
- 4.5 inch (115 mm)
- 5 inch (125 mm)
- 7 inch (180 mm)
- Arbor Hole
- 7/8 inch
- Locating Holes
- 2
- Body Material
- A3 Steel
- Segment Material
- Diamond and metal powders
- Body Thickness
- 3 mm
- Segment Thickness
- 5-6.5 mm
Features & Performance
Design Type
Double Row
Key Benefits
- High diamond concentration for faster material removal
- Double row segments for smoother finishing
- Integrated air holes for cooling and reduced wear
- Long life durability
- Suitable Materials
- MarbleTileConcreteRock
- Quality Control
- Factory action balance debugging to reduce deflection during high-speed rotation
