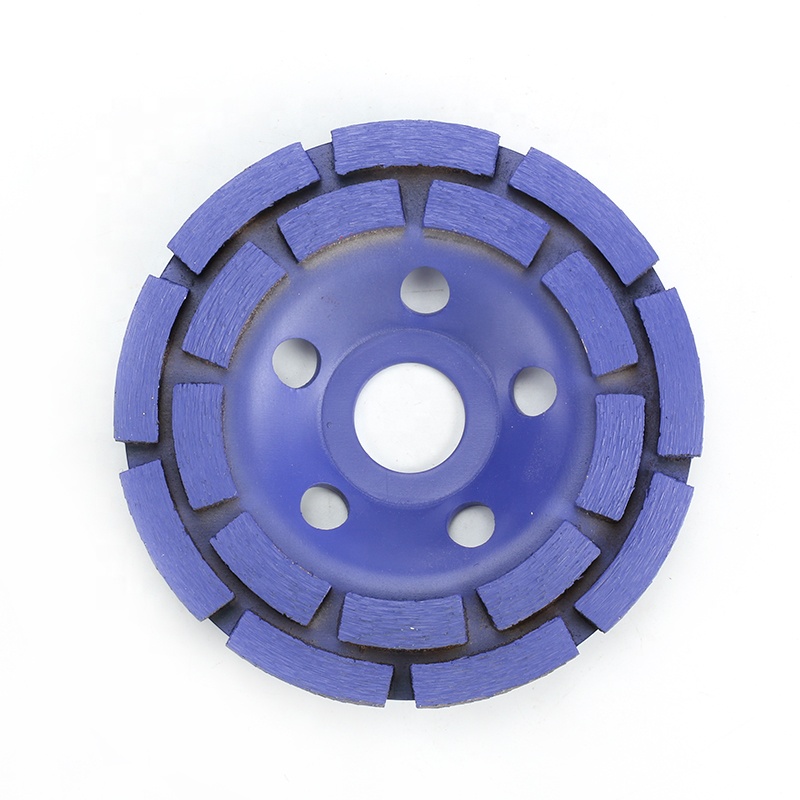

Double Row Diamond Cup Wheel for Grinding
This double-row diamond cup wheel is designed for aggressive grinding and material removal on concrete, stone, and masonry surfaces. Its durable construction ensures long-lasting performance, while the double-row segments provide efficient stock removal and a smooth finish.
Technical Specifications
Product Overview
Professional Grade Grinding Performance
This 5-inch double row diamond cup wheel is engineered for high-efficiency material removal and surface preparation on concrete, marble, tile, and rock. Featuring a high diamond concentration and a robust A3 steel body, it provides exceptional durability and a smoother finish compared to single-row alternatives. Each wheel undergoes rigorous balance debugging to minimize deflection during high-speed rotation, ensuring stable, professional results.
Technical Specifications
- Outside Diameter
- 125 mm
- Arbor Hole
- 22.2 mm
- Segment Thickness
- 5mm - 6.5mm
- Body Thickness
- 3 mm
- Body Material
- A3 Steel
Key Features
Performance Highlights
20 pcs
Total Segments
100 High
Diamond Concentration
Design Advantages
- Double row segment design for smoother finish
- High diamond concentration for faster material removal
- Air holes for cooling and dust removal
- Factory-balanced for reduced vibration
- Compatible Materials
- ConcreteMarbleTileRockMasonry
