Double Head Flush Push Button with Rubber Cap
This double-headed push button is designed for elevator control panels. It features a flush mount and a rubber cap for durability.
Technical Specifications
Overview

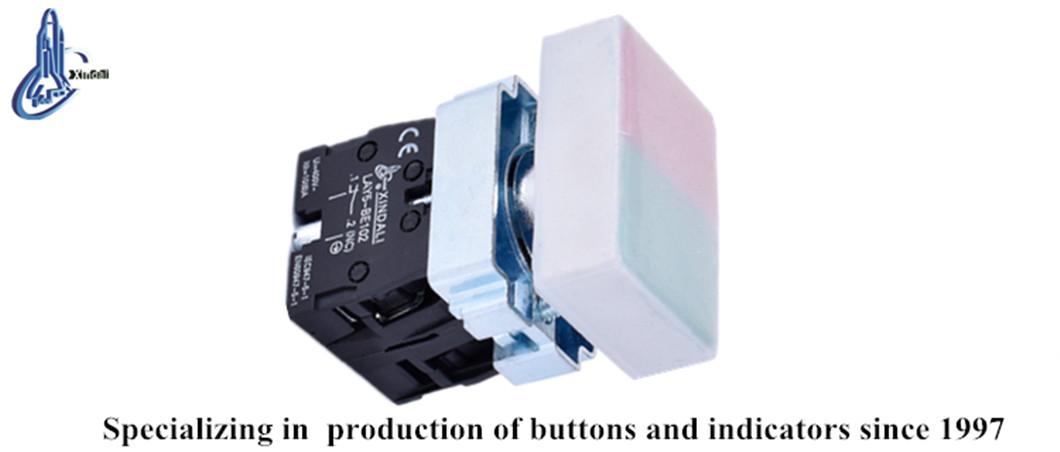

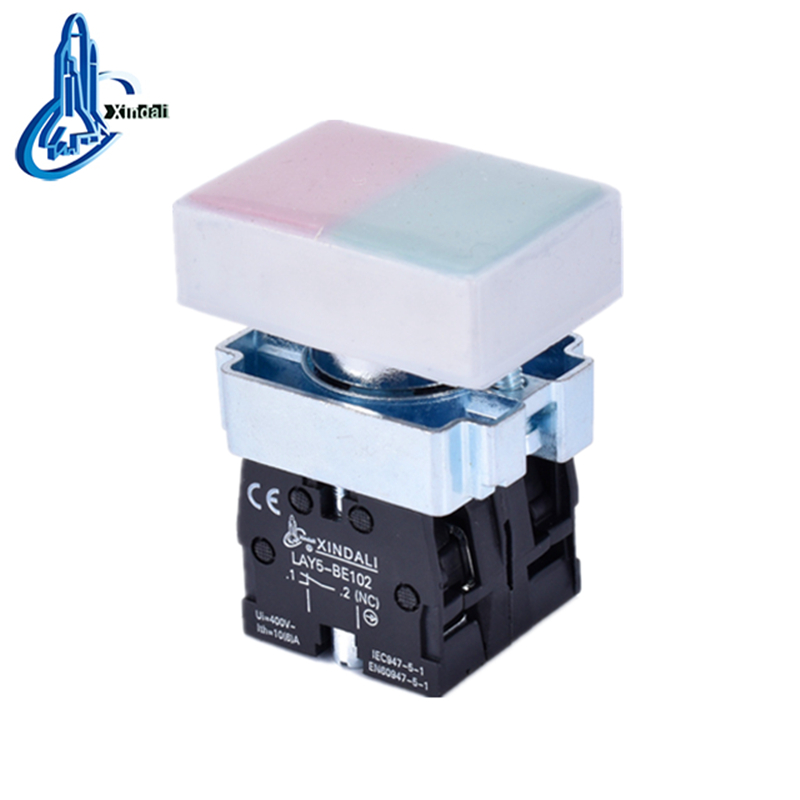

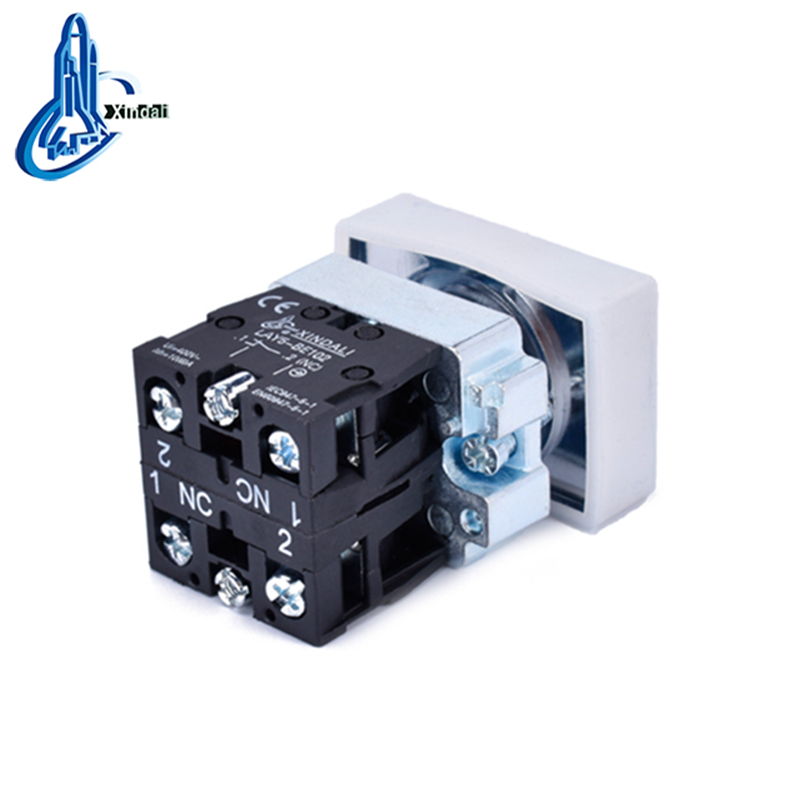

Double Head Flush Push Button
This double-headed flush push button is designed for reliable control in elevator panels and industrial circuits. Featuring a durable rubber cap for enhanced protection and comfort, it offers a space-saving design with two distinct control functions in a single unit. Built with high-grade zinc alloy and anti-flame plastic, it ensures longevity and safety in demanding electrical environments.
Electrical Ratings
- Rated Insulation Voltage
- 600 V
- Conventional Heating Current
- 10 A
- Insulation Resistance
- ≥50MΩ
- Contact Resistance
- ≤25mΩ
- Power Frequency Withstand Voltage
- AC 2.5KV/min
Performance
Mechanical Life
1,000,000 cycles
Pushbutton
500,000 cycles
Selector Switch
Electrical Life
5,000,000 cycles
Pushbutton
250,000 cycles
Selector Switch

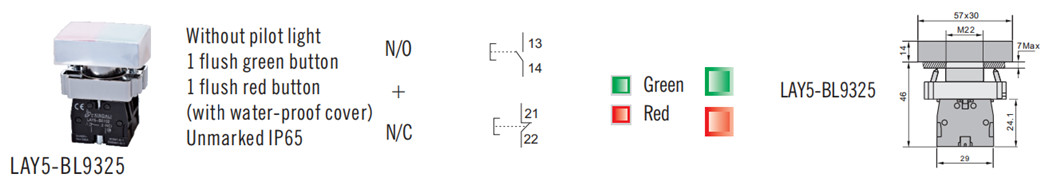

Physical Specifications
Ingress Protection
IP65
- Dimensions
- 57 x 30 mm (Top Section)
- Mounting Thread
- M22
Compliance
- Certifications & Standards
- CEISO 9001RoHSULIEC60947-5-1GB/T14048.1
