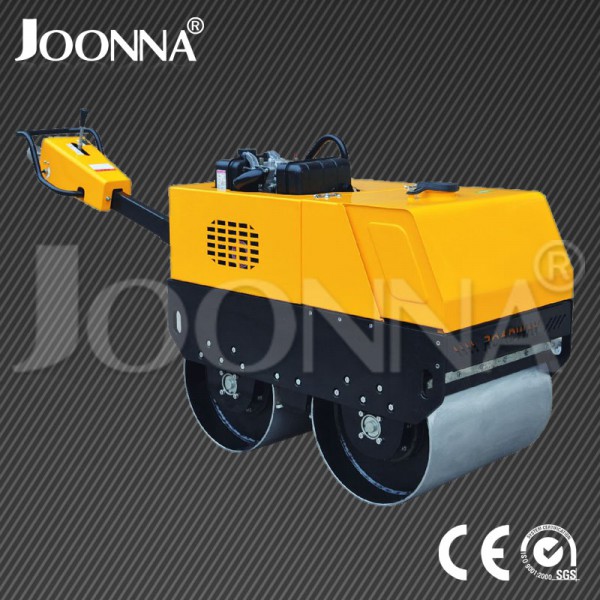

Double Drum Vibratory Road Roller
This double drum road roller features a Sauer hydraulic pump and a stainless steel sprinkler pipe. The hydraulic motor drive is imported from Italy.
Technical Specifications
Overview
High-Performance Double Drum Vibratory Road Roller
This double drum vibratory road roller is engineered for precision compaction in road construction, maintenance, and repair projects. It features a fully hydraulic-drive system that eliminates the need for regular maintenance associated with chain-driven models, while offering infinitely variable working speeds. Designed with operator comfort and safety in mind, it includes vibration-dampening controls and a deadman control lever for enhanced protection.
Technical Specifications
Engine Technical Data
| Feature | JNYL65L Model | JNYL65A Model |
|---|---|---|
| Engine Type | Lombardini 15LD440 | Hatz 1B40 |
| Power (kW) | 8.1 | 8.1 |
| Power (hp) | 11 | 11 |
Key Features
Performance Metrics
65 L
Water Tank Capacity
Operational Features
- Deadman control lever with reversing protection
- Mechanical parking brake
- Built-in oil cooler for increased productivity
- Anti-vibration controls for low Hand/Arm Vibration (HAV)
- Dual smooth drums with beveled edges to eliminate ground marks
- Two scraper bars on each drum for asphalt cleaning
- Easy access to front-mounted Diesel engine
Design & Utility
- Design Highlights
- Corrosion-free water tankMulti-position handleHigh side clearanceCurb clearance capabilityHydraulic-drive system
Compliance & Standards
Certifications
CEISO 9001:2008SGS Approved
