Technical Specifications
Product Overview

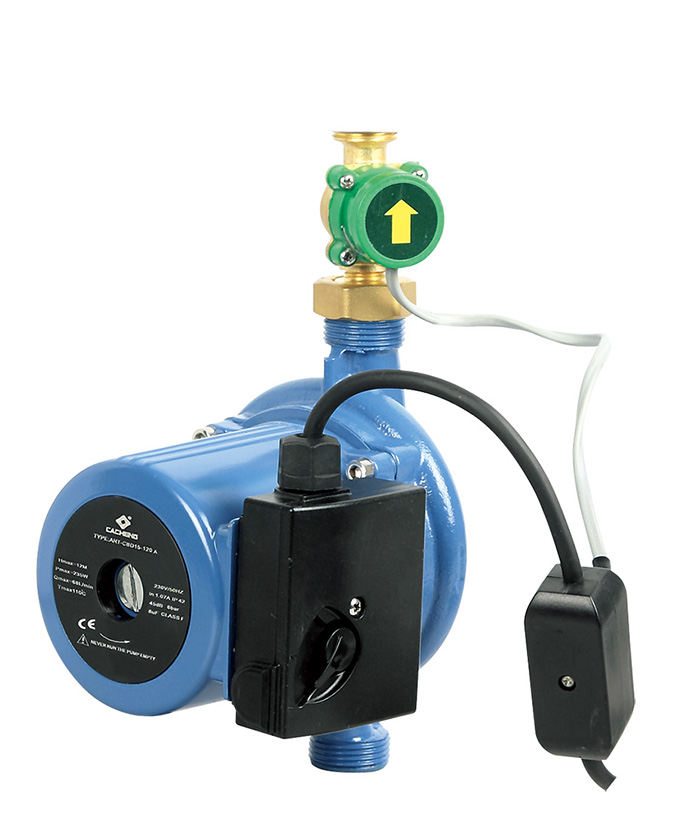

High-Efficiency Circulator Booster Pump
This in-line circulator booster pump is engineered for reliable domestic water recirculation. Featuring a design with suction and delivery connections on the same axis, it ensures seamless integration into existing plumbing systems. The unit comes fully equipped with necessary fittings and a 1.3-meter cable for convenient installation.
Technical Specifications
Insulation Class
Class F
- Power Consumption
- 735 W
- Rated Current
- 0.7 A
- Maximum Head
- 12 m
- Maximum Flow Rate
- 68 L/min
- Max System Temperature
- 110 °C
- Voltage/Frequency
- 230V / 50Hz
Operational Details
Safety Features
- Do not run empty
- In-line connection design
- Includes 1.3M power cable
- Operating Modes
- OFFAUTOMANUAL
- Protection Rating
- IP44
Performance Metrics
Key Performance Metrics
12 m
Max Head
68 L/min
Max Flow
110 °C
Max Temp
