DN32 Y-Strainer Filter
This DN32 Y-strainer filter removes unwanted particles and debris from fluids in piping systems. It is constructed from durable brass and features threaded connections for easy installation and maintenance.
Technical Specifications
Product Overview
High-Performance DN32 Y-Strainer Filter
The DN32 Y-Strainer Filter is a robust solution designed to protect downstream equipment by efficiently removing impurities, such as iron filings, from fluid systems. Featuring a durable alloy copper construction with a shot blast finish, this filter is built for longevity and reliable performance in domestic waterway systems. Its detachable design allows for easy maintenance, including the removal and cleaning of the built-in magnet and filter screen, ensuring consistent flow and system efficiency.

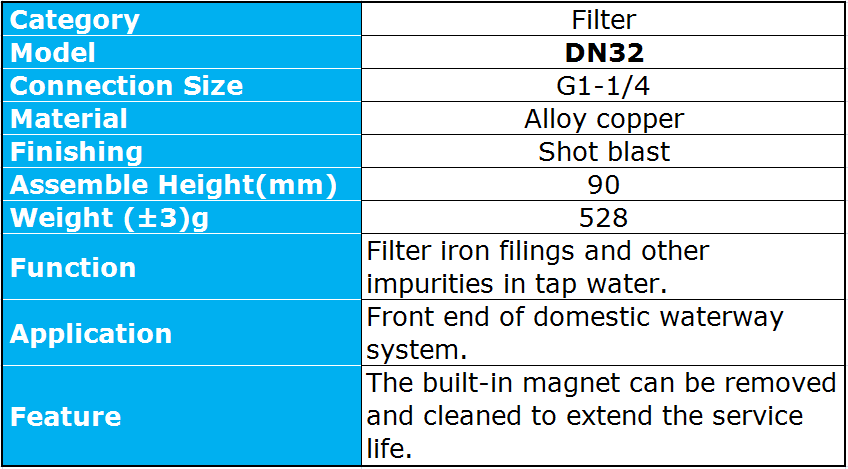

Technical Specifications
- Connection Size
- G1-1/4 (DN32)
- Pressure Rating
- 2.6 MPa
- Material
- Alloy Copper
- Surface Finish
- Shot Blast
Physical Dimensions
- Assembly Height
- 90 mm
- Weight
- 528 g
Features
Key Features
- Detachable and replaceable stainless steel filter screen
- Built-in removable magnet for extended service life
- Easy installation with internal teeth
- Large orifice diameter for high flow capacity
- Leak-proof performance up to 2.6MPa
- Applications
- Domestic Waterway SystemsFront-end FiltrationImpurity Removal
