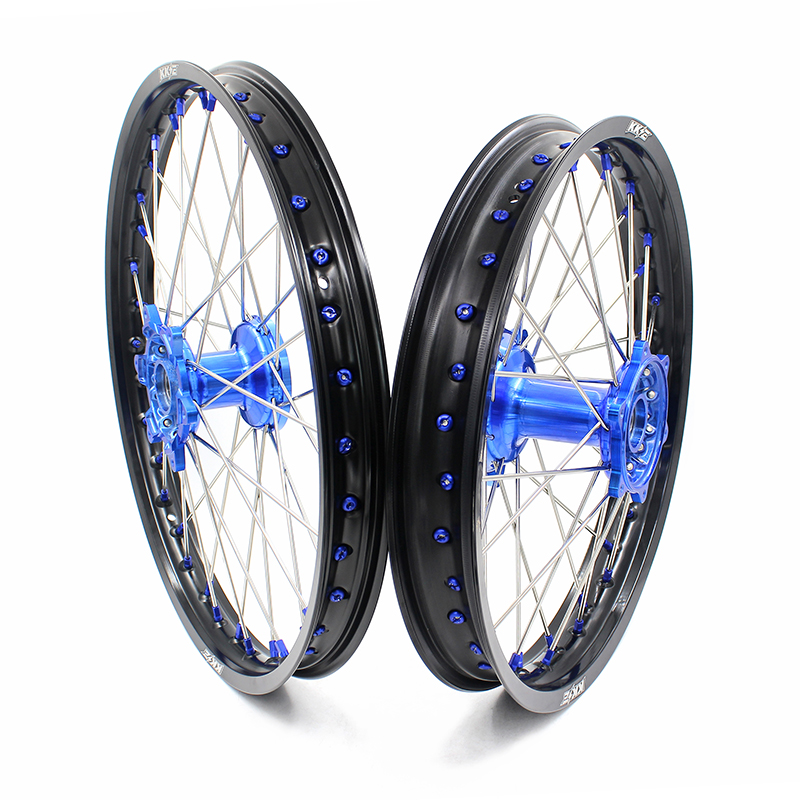

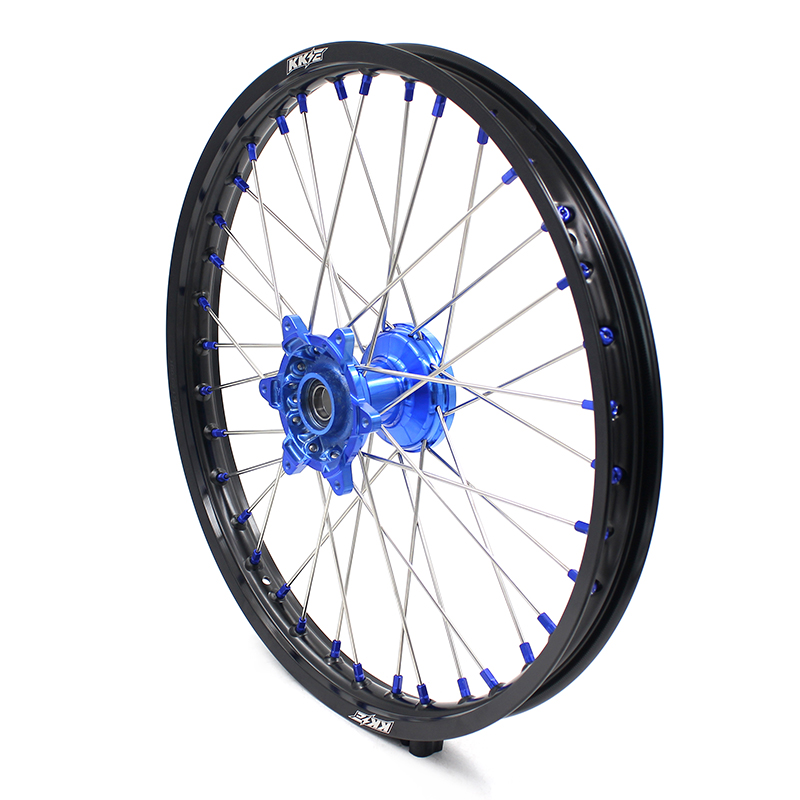

Dirt Bike Casting Wheel
This casting wheel is designed for dirt bikes, offering enhanced handling and responsiveness. It features a durable construction with a black rim, blue hub, and silver spokes for reliable off-road performance.
Technical Specifications
Overview
High-Performance Dirt Bike Casting Wheels
These high-performance casting wheels are engineered for durability and responsiveness in demanding off-road conditions. Featuring a 7050-T7 aluminum rim and a lightweight, strong casting hub, this assembly is designed to outperform stock components while maintaining excellent weight characteristics. Each wheel comes fully assembled with high-quality spokes, bearings, and seals, ready for direct installation on compatible dirt bike models.
Technical Specifications
Available Rim Sizes
| Position | Standard Size | Alternative Sizes |
|---|---|---|
| Front | 1.6 x 21 inch | 1.85 x 19 inch, 2.15 x 19 inch |
| Rear | 2.15 x 19 inch | 2.15 x 18 inch, 1.85 x 19 inch |
Surface Finish
Anodized RimAnodized HubAnodized NipplesCustom Colors Available
- Material Composition
- 7050-T7 Aluminum Rim536 Aluminum Casting Hub304 Stainless Steel Spokes2014 Alloy Nipples
Component Details
Bearing Configuration
2 6905
Front Bearings
2 6005
Rear Bearings
Seal Sizes
- Front Seal: 30 x 42 x 7 mm
- Rear Seal: 30 x 47 x 7 mm
Axle Diameter Compatibility
- Front: 20mm / 22mm
- Rear: 22mm / 25mm
Compatibility
- Compatible Models (1999-2020)
- YZ125YZ250YZ250FYZ450FWR450F
