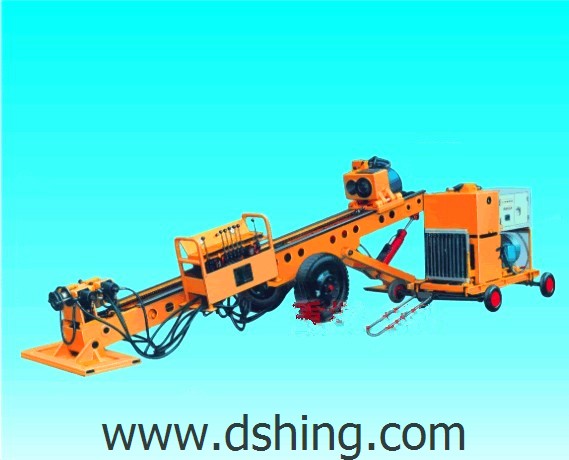

Directional Drilling Machine
This directional drilling machine is used for laying underground pipes and lines without destructing existing buildings. Its compact design allows for operation in confined spaces.
Technical Specifications
Overview
Precision Directional Drilling
The Directional Drilling Machine is engineered for high-accuracy horizontal drilling applications, offering robust hydraulic power and precise steering capabilities. Its compact design facilitates operation in confined spaces, while durable construction ensures reliable performance for utility installation, pipeline construction, and geological exploration. The system features advanced control parameters and a multi-stage power pack to meet demanding industrial requirements.
Performance Metrics
Key Performance Indicators
300 m
Max Draw Back Length
400 mm
Max Draw Back Diameter
37 kW
Power
Force Specifications
- Max Feed Force: 89 KN
- Max Draw Back Force: 120 KN
Operational Capabilities
Top-Head Speeds
| Series | Speed (r/min) |
|---|---|
| Series I | 0-100 |
| Series II | 0-33 |
Top-Head Torque
| Series | Torque (N.m) |
|---|---|
| Series I | 1,680 |
| Series II | 5,000 |
System Specifications
- Hydraulic System Pressure
- 20 Mpa
- Top-Head Feed Stroke
- 3300 mm
Dimensions & Weight
- Drill Body Dimensions
- 4900 x 1400 x 1255 mm
- Drill Body Weight
- 1200 kg
- Power Pack Dimensions
- 1555 x 1255 x 1355 mm
- Power Pack Weight
- 700 kg
