Digital TV Signal Finder

This digital TV signal finder supports DVB-T/T2/C standards. It features a spectrum analyzer for ensuring optimal antenna alignment.

Request a QuotePDF

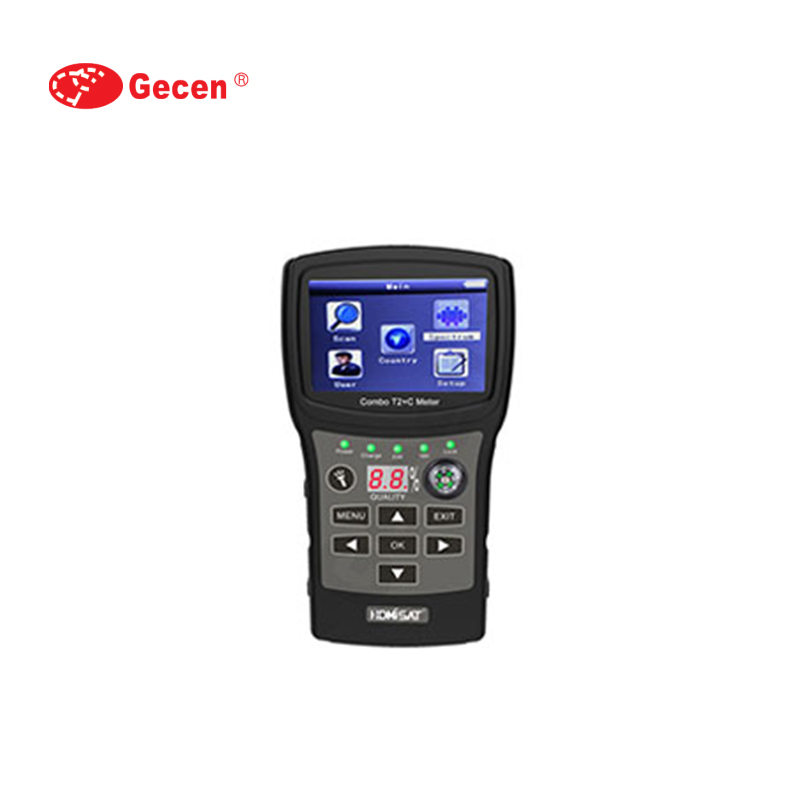

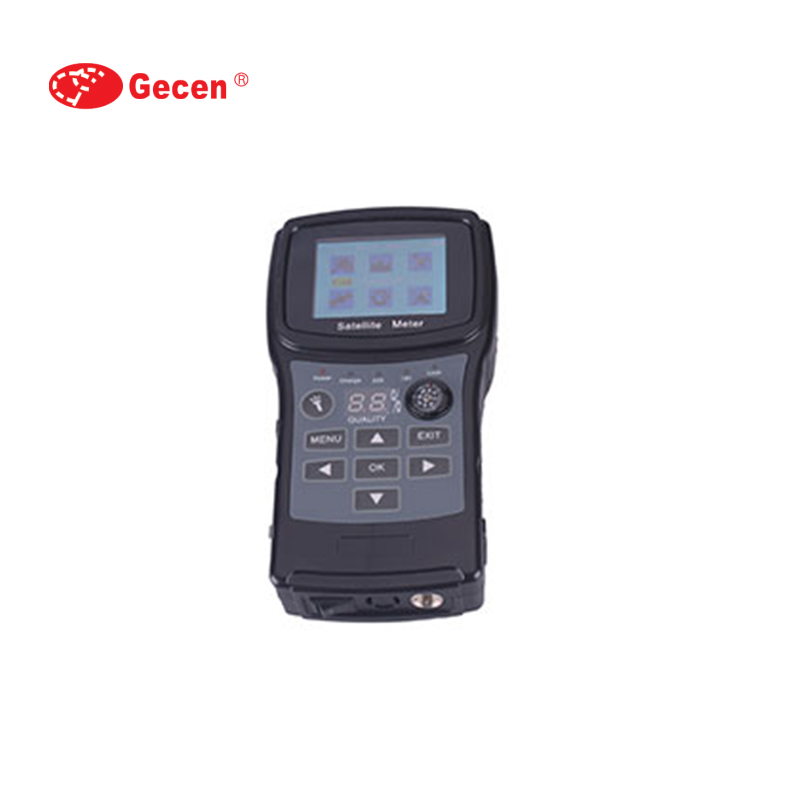

Gecen DVB-T/T2+C Digital Satellite Finder SF-710T - Image 1

Technical Specifications

Overview

Professional Signal Alignment

This handheld digital signal finder is designed for the efficient installation and troubleshooting of terrestrial, cable, and satellite TV systems. It features an integrated spectrum analyzer and constellation diagram capabilities, allowing technicians to precisely optimize antenna positioning and signal reception. Built for field work, the device combines a user-friendly interface with essential diagnostic tools to ensure high-quality signal delivery.

Technical Specifications

Frequency Range
862 MHz
Minimum Frequency
47 MHz
Input Level Range
-78 to -10 dBm
Power Supply
DC 12V 2000mA

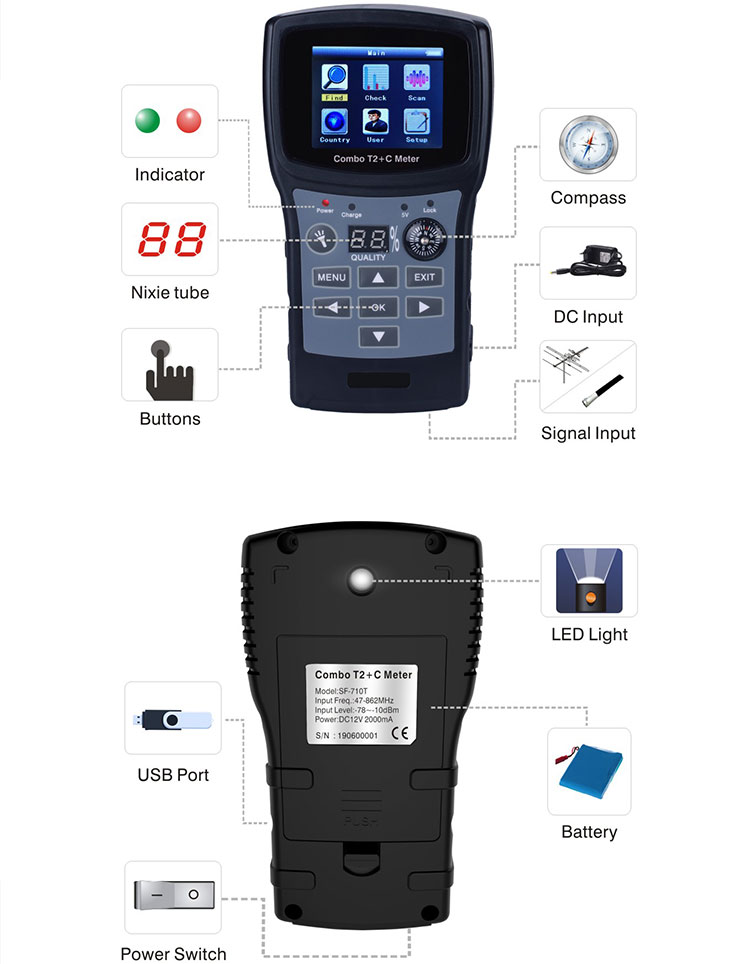

Diagram of the signal finder showing buttons, ports, and display components
Detailed layout of the device including navigation buttons, input ports, and display indicators.

Features

Key Functionalities

  • Spectrum analyzer
  • Constellation diagram
  • Automatic channel scan
  • Multi-lingual OSD
  • Signal strength and quality display

Connectivity

USB 2.0
Supported Standards
DVB-TDVB-T2DVB-C
Packing and delivery process of the satellite finder units
Professional packaging and preparation for secure shipping and delivery.

Certifications

Compliance

CEREACHEMC Directive 2014/30/EU
