Technical Specifications
Product Overview

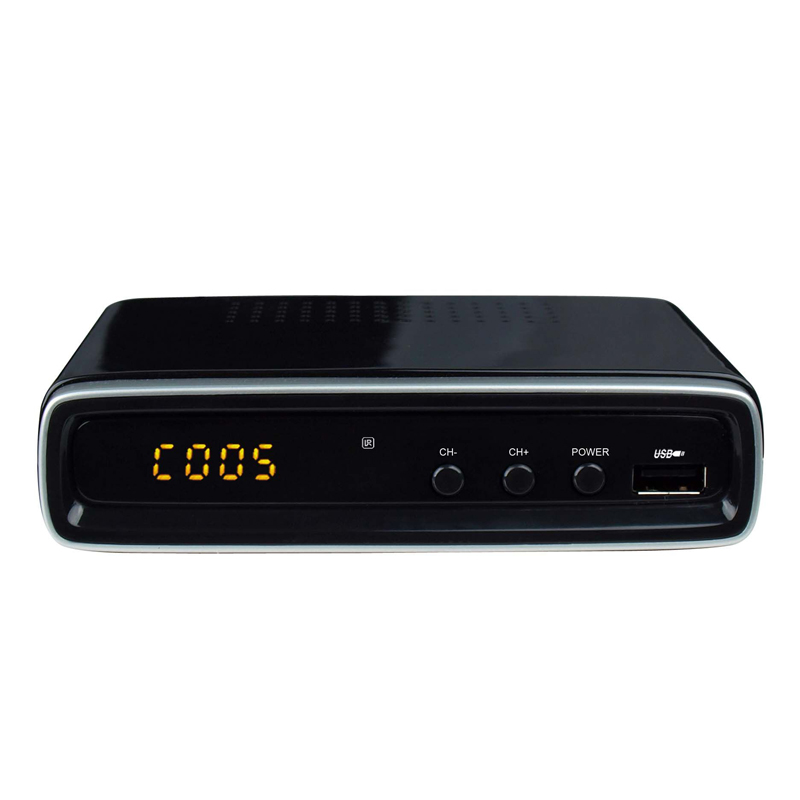

Professional Digital TV Receiver
This high-performance DVB-T2/DVB-T terrestrial receiver offers reliable signal processing with support for MPEG-2, MPEG-4, and H.264 formats. Designed for professional broadcast environments, it features robust decoding capabilities, multiple output resolutions, and advanced PVR/time-shift functionality. The compact, durable plastic-cased unit includes comprehensive connectivity options and is fully certified for international standards.
- Warranty Period
- 1 Year
Technical Specifications
Output Resolutions
- 1080p
- 1080i
- 720p
- 576p
- 576i
- 480p
- 480i
- Video Decoder Support
- MPEG-2MPEG-4H.264
- Frequency Range
- VHF-H 174~230MHz, UHF 470~860MHz
- Chipset Solution
- MSD7T00+RT836
Modulator Features
Core Modulator Specs
42 dB
MER
8 W
Power Consumption
Modulator Parameters
| Feature | Options |
|---|---|
| Bandwidth | 6M, 7M, 8M |
| Constellation | QPSK, 16QAM, 64QAM |
| FFT Mode | 2K, 8K |
| Guard Interval | 1/4, 1/8, 1/16, 1/32 |
Certifications
Approvals & Standards
CEISO 9001TISINBTCERPIEC
