Technical Specifications
Product Overview
Precision Testing for Lamp Caps

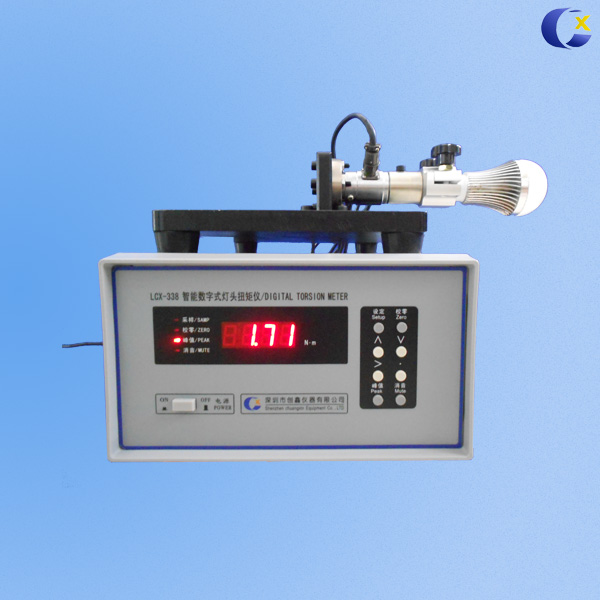

This intelligent digital torsion meter is designed for precise measurement of clockwise and anti-clockwise torque in various lamp caps. Built with a microprocessor and double watchdog design, it ensures high reliability and stability even in complex testing environments. It is an essential tool for quality control, strictly conforming to international standards like IEC 60598 and IEC 60968.
Performance Metrics
Torque Range
10 N•m
Max Torque
Performance Specifications
| Parameter | Value |
|---|---|
| Accuracy | ≤1% FS |
| Repeatability | ≤0.5% FS |
| Linearity | ≤0.5% FS |
| Lag | ≤0.5% FS |
| Overload Capacity | 120% FS |
Compatibility & Usage
- Supported Lamp Caps
- E27E26B22dE14E12G13G5
Environmental & Power
Operating Environment
| Condition | Requirement |
|---|---|
| Working Temperature | 0-40°C |
| Relative Humidity | ≤75% R.H |
| Power Supply | AC 220V±10%, 50/60Hz |
Physical Attributes
- Dimensions
- 333mm x 114mm x 307mm
- Weight
- 6 kg
- Power Consumption
- 15 VA
