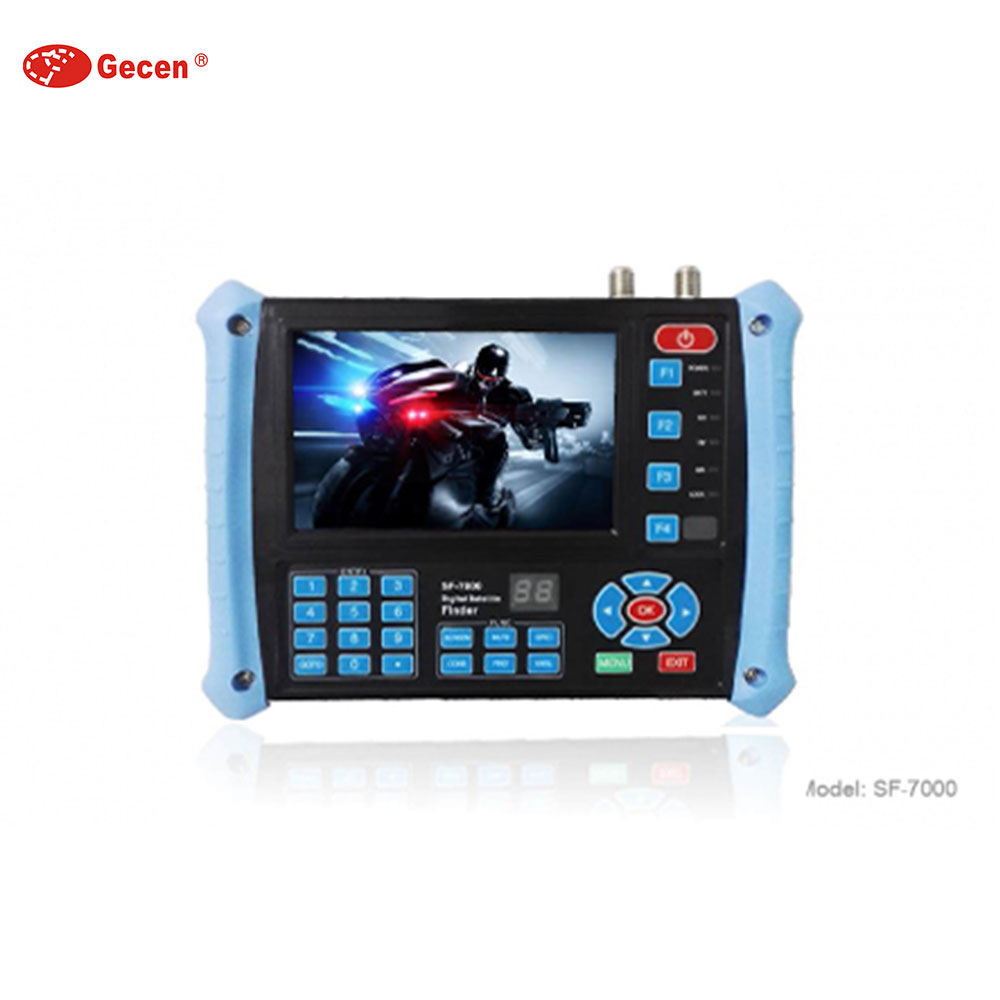

Digital Satellite Finder with CCTV Camera Support
This digital satellite finder supports combo S2+T2 signal measurement. It supports CCTV camera testing up to 5MP AHD.
Technical Specifications
Overview
Professional Combo Signal Meter
This versatile combo signal meter is designed for precise satellite dish alignment and signal analysis, supporting both DVB-S/S2 and T2 standards. It features a high-resolution 5-inch TFT LCD display and includes advanced diagnostic tools like spectrum analysis and real-time constellation display. Additionally, the device offers integrated CCTV camera testing support up to 5MP AHD, making it an essential all-in-one tool for field technicians and installers.
Technical Specifications
Advanced Features
- Spectrum function
- Real-time constellation display
- Multi-lingual OSD
- User-friendly UI
- Display
- 5-inch TFT LCD
- Supported Standards
- DVB-SDVB-S2DVB-T2
- CCTV Camera Support
- Up to 5MP AHD

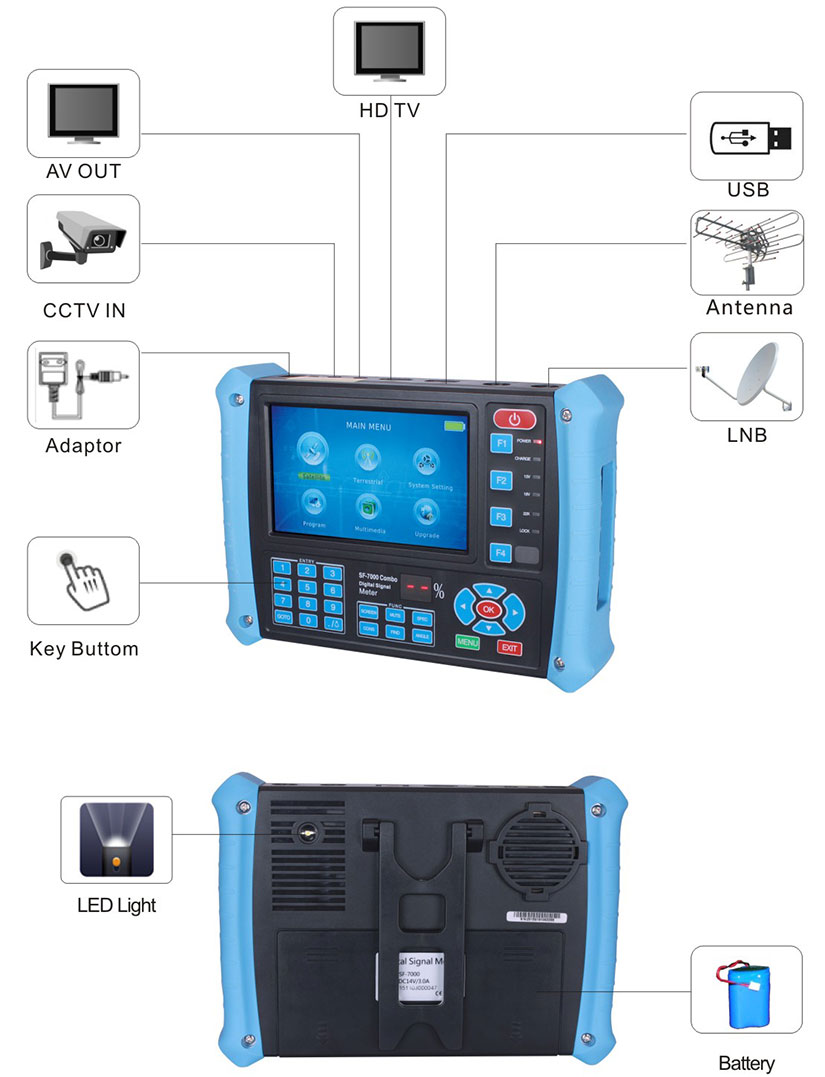

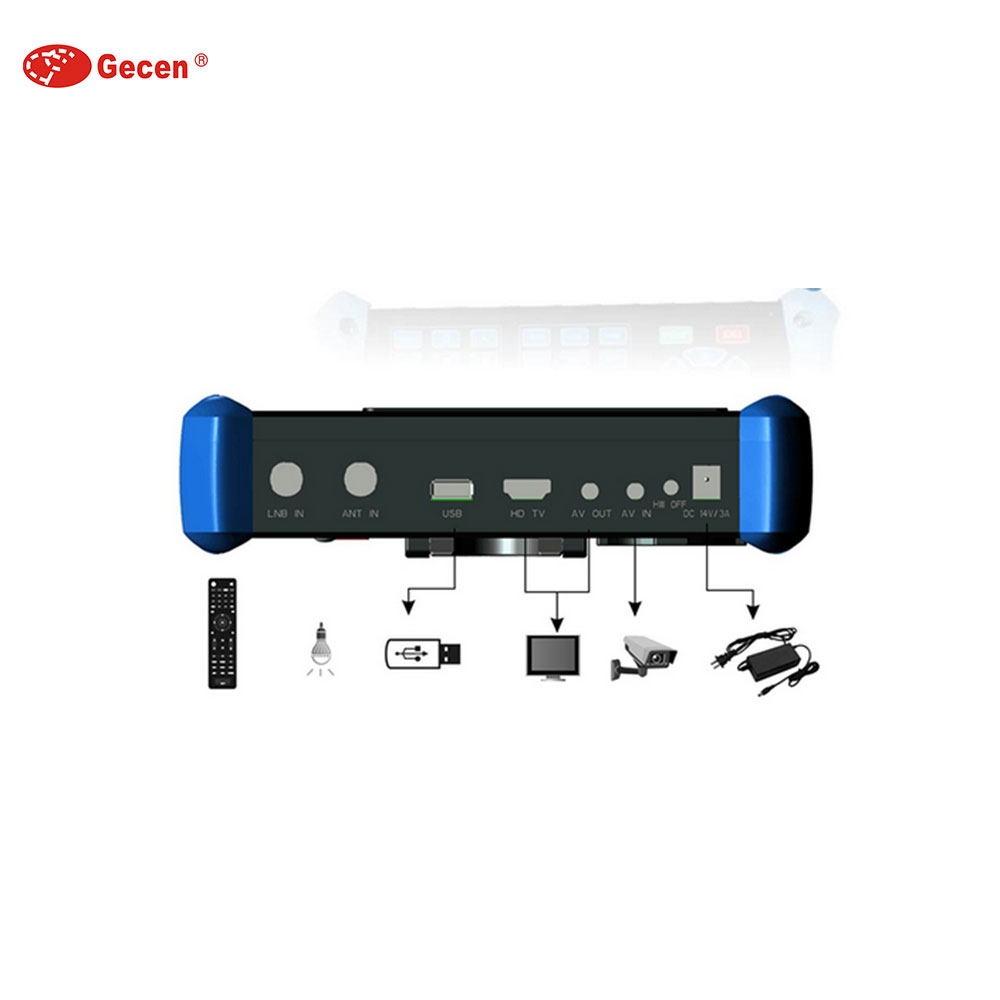

Connectivity
Input Ports
- LNB IN
- ANT IN
- AV IN
- CCTV IN
Output Ports
- HDMI
- AV OUT
- USB
Power & Operation
- Power Input
- DC 14V/3A
Certifications
Compliance
CERoHS
