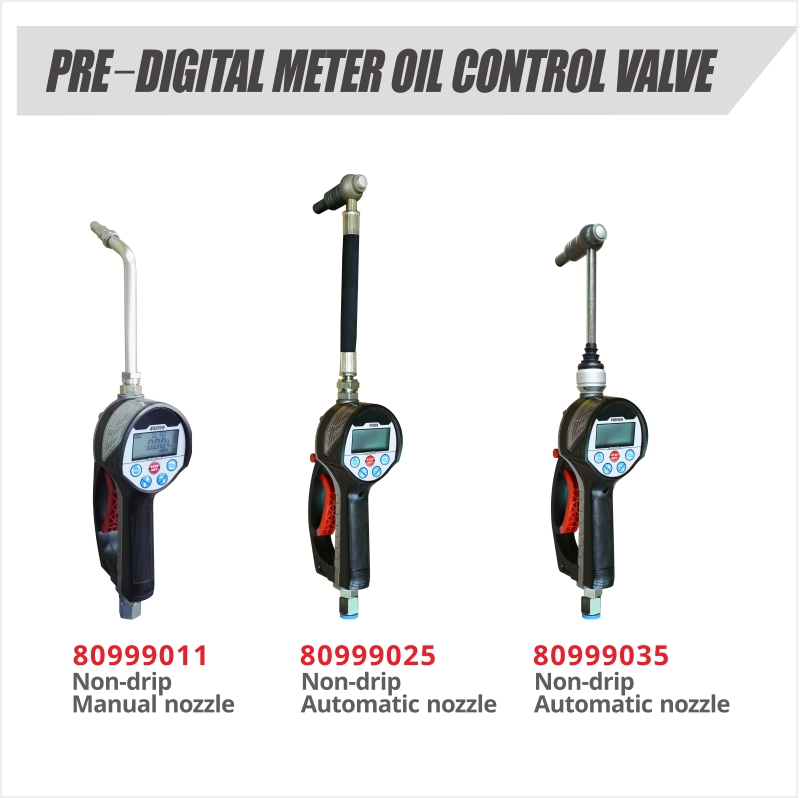

Digital Meter Oil Control Valve
This digital meter oil control valve allows for precise fluid dispensing. It features a digital display for accurate measurement of dispensed fluids.
Technical Specifications
Overview
Precision Fluid Dispensing
This digital meter oil control valve is engineered for accurate and efficient fluid management. Featuring an integral forming design to minimize leakage risks and an automatic valve closure system driven by a stepping motor, it offers high sensitivity and long service life. Designed for professional environments, this tool provides real-time flow data and precise control to optimize fluid usage and reduce waste.
Performance Metrics
Flow Rate
1 L/min
Min Flow Rate
30 L/min
Max Flow Rate
Working Pressure
3 bar
Min Pressure
70 bar
Max Pressure
- Dispensing Precision
- 0.3 %
Operational Specifications
Spout Configuration
Automatic
Outlet Tube Options
- Flexible hose
- Rigid tube
- Pre-selectable Quantity Range
- 0.1L to 99.9L
- Power Supply
- DC6V
Design & Connections
- Inlet/Outlet Connection
- 1/2" BSP/NPT
- Inner Diameter
- 10 mm
- Construction Features
- Aluminum nozzleIntegral formingStepping motor controlLeak-resistant
