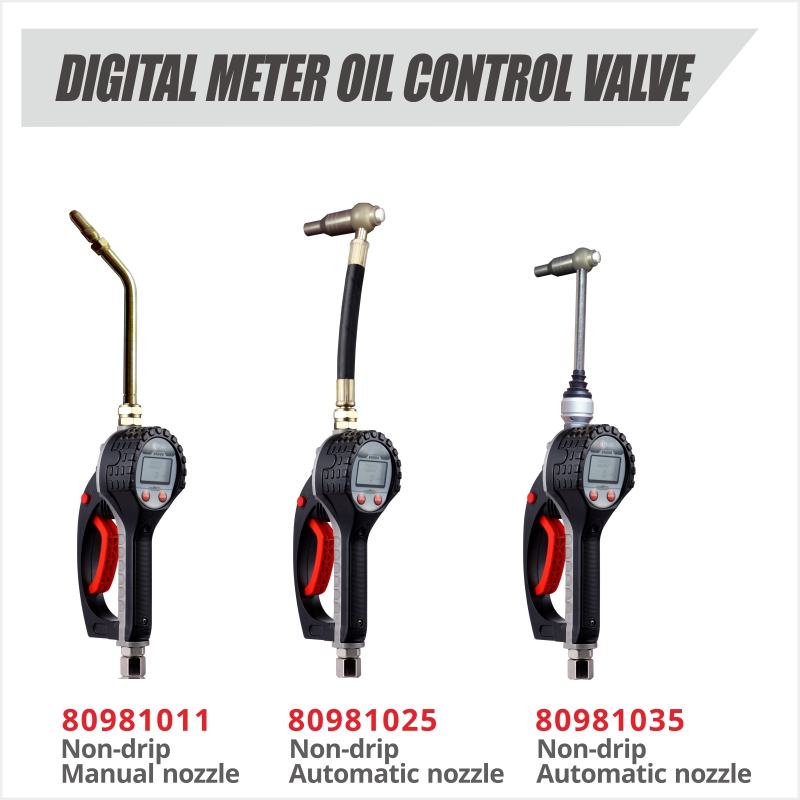

Digital Meter Oil Control Valve
This digital meter oil control valve allows for accurate oil dispensing. It features a digital display for precise measurement and control of oil flow.
Technical Specifications
Overview
Precision Oil Dispensing Solution
This digital meter control valve is engineered for high-accuracy oil dispensing in automotive and industrial environments. Featuring a robust aluminum nozzle with an integrated non-drip device, it effectively eliminates leakage risks. The unit utilizes advanced stepping motor control for high sensitivity and extended service life, while offering significant energy savings compared to traditional electromagnetic lock systems.
Performance Metrics
Flow Rate
1 L/min
Min Flow
25 L/min
Max Flow
- Measurement Precision
- 0.3 %
Operating Conditions
Working Pressure
3 bar
Min Pressure
70 bar
Max Pressure
Technical Specifications
- Input Connection
- 1/2" BSP/NPT
- Power Supply
- DC3V
- Inner Diameter
- 10 mm
Design Features
Outlet Tube Types
- Flexible hose
- Rigid tube
- Nozzle Configuration
- AutomaticNon-dripAluminum
