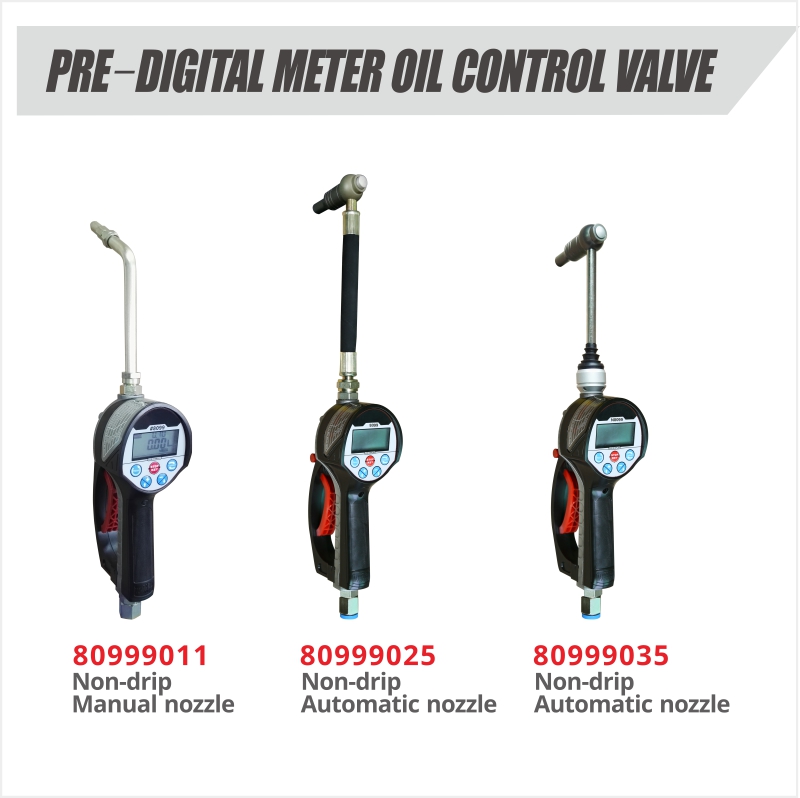

Digital Meter Control Valve with Oil Flow Meter
This digital meter control valve is designed for accurate oil dispensing. The control valve features a digital meter for precise measurement, ensuring efficient and controlled oil flow.
Technical Specifications
Product Overview
Precision Oil Dispensing Solution
This digital meter control valve is engineered for high-precision oil dispensing in demanding industrial and automotive environments. Featuring an advanced stepping motor control for automatic valve closure, it offers superior sensitivity and energy efficiency compared to traditional electromagnetic locks. The robust, integral forming design minimizes leakage risks, while the flexible configuration options ensure reliable performance across various fluid management applications.
Performance Metrics
Flow Rate
1 L/min
Min Flow
30 L/min
Max Flow
Operating Pressure
3 bar
Min Pressure
70 bar
Max Pressure
- Measurement Precision
- 0.3 %
Technical Specifications
- Pre-selectable Quantity Range
- 0.1L to 99.9L
- Power Supply
- DC6V
- Connection Size
- 1/2" BSP/NPT
Design & Build
Spout Configuration
AutomaticFlexible HoseRigid Tube
- Construction Features
- Aluminum NozzleIntegral Forming DesignStepping Motor ControlNon-drip Design
