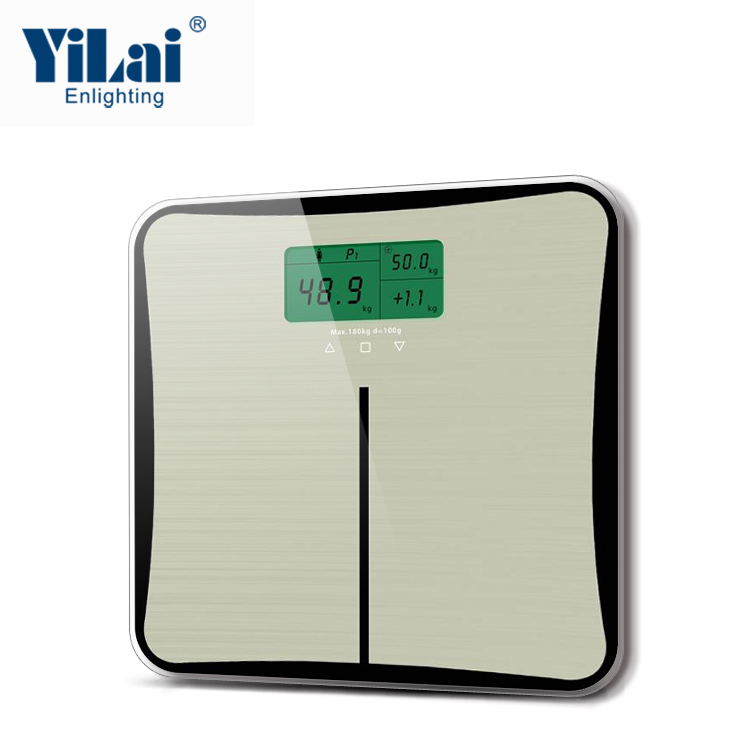

Digital Body Weight Scale with Color-Coded Trend Indicator

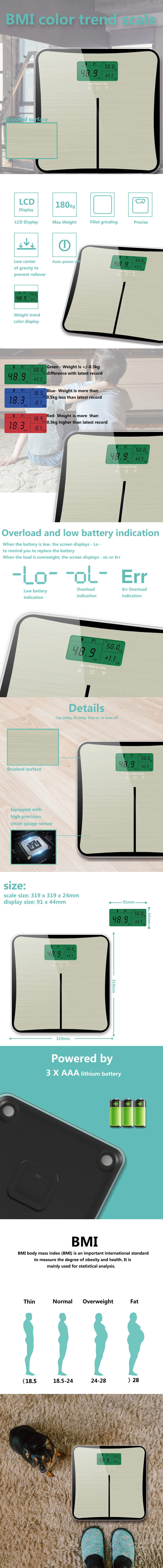

This digital body weight scale measures weight and calculates Body Mass Index (BMI). It uses a color-coded display to indicate weight trends relative to the previous measurement.
Technical Specifications
Product Overview
Advanced Weight Monitoring with Visual Feedback
This digital body scale features a unique color-coded trend indicator that provides immediate visual feedback on weight changes relative to your previous record. Beyond simple weight measurement, it calculates BMI to help users track their health status against international standards. With a high-precision strain gauge sensor and a sleek, brushed surface design, it offers both accuracy and a modern aesthetic for professional or home use.
Core Performance
Key Performance Metrics
180 kg
Max Capacity
100 g
Division
0.1 kg
Resolution

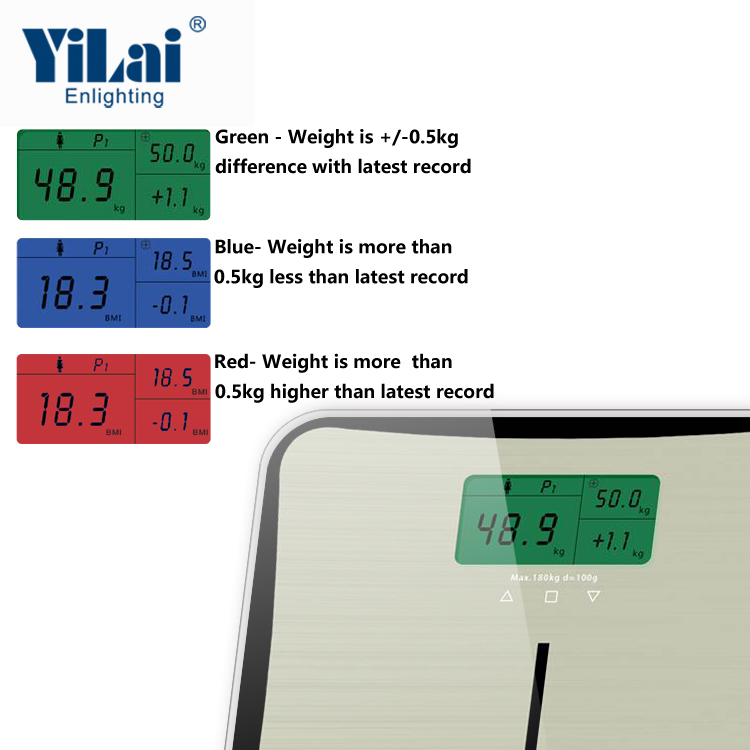

Trend Indicator Logic
Color Trend System
| Color | Meaning | Threshold |
|---|---|---|
| Green | Stable Weight | +/- 0.5kg from latest record |
| Blue | Weight Loss | More than 0.5kg less than latest record |
| Red | Weight Gain | More than 0.5kg higher than latest record |
Physical Design
Surface Treatment
Brushed SurfaceFillet GrindingSleek Platform
- Scale Dimensions
- 319 x 319 x 24 mm
- Display Size
- 91 x 44 mm
Technical Features
System Alerts
- Low battery indication (Lo)
- Overload indication (oL)
- Error indication (Err)
- Sensor Technology
- High-precision strain gauge sensor
- Power Supply
- 3 x AAA lithium batteries
Health Tracking
- Tracked Parameters
- Current WeightPrevious WeightWeight DifferenceBMI (Body Mass Index)User Profiles (P1)
