Technical Specifications
Overview
Comprehensive Health Monitoring Solution

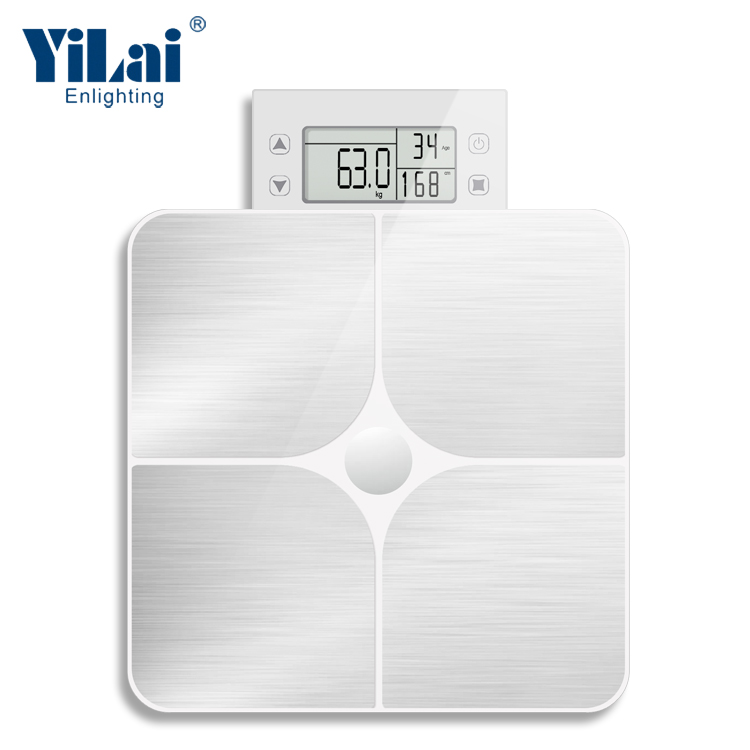

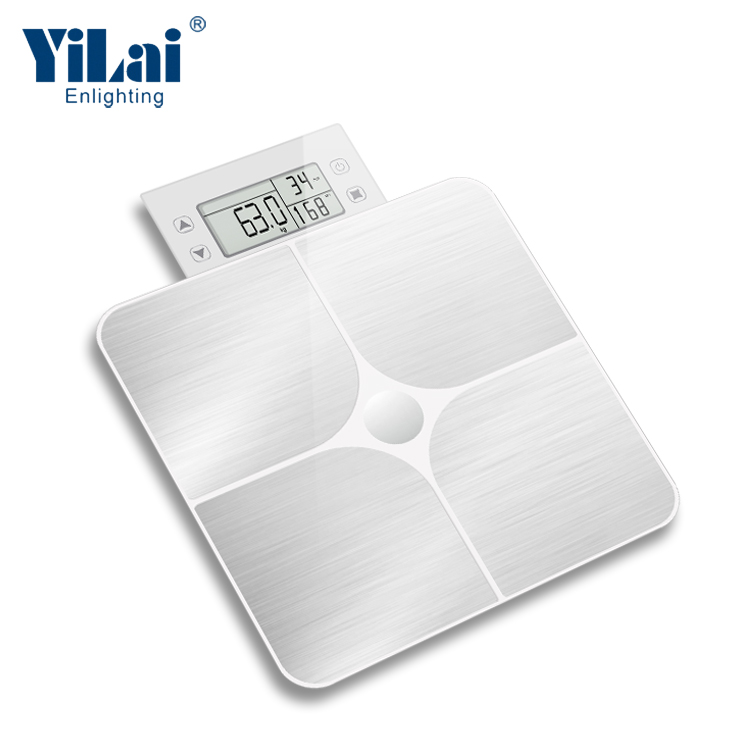

This Digital Body Composition Analyzer utilizes advanced Bioelectrical Impedance Analysis (BIA) technology to provide a complete picture of physical health. It features a unique 2.4G RF removable display that can be wall-mounted or placed on a table for easy viewing during weigh-ins. Designed for versatile use, it supports up to 10 user profiles, making it an ideal choice for multi-user environments or family health tracking.
Core Performance
Key Performance Metrics
180 kg
Max Capacity
0.1 kg
Division
10 Profiles
User Memory
Measurement Capabilities
- Measured Parameters
- WeightBMIBMRBody Fat %Body Water %Muscle MassBone MassVisceral Fat
- Required User Data
- AgeHeightGender
Technical Specifications
- Sensor Technology
- High-precision strain gauge sensor system
- Wireless Connectivity
- 2.4G RF Technology & Bluetooth
Physical Design
Dimensions & Display
| Component | Dimensions |
|---|---|
| Scale Body | 319 x 319 x 27 mm |
| LCD Screen | 91 x 44 mm |
Display Options
- Removable magnetic display
- Wall-mountable hanging mode
- Tabletop stand mode
- Integrated clock function
Power Requirements
Battery Configuration
- Scale Body: 4 x AAA batteries
- Display Unit: 3 x AAA batteries
