Diesel Water Pump Set
This diesel water pump set is designed for high-volume water transfer applications. It features a robust diesel engine for reliable performance and efficient fuel consumption.
Technical Specifications
Overview
High-Performance Diesel Water Pump

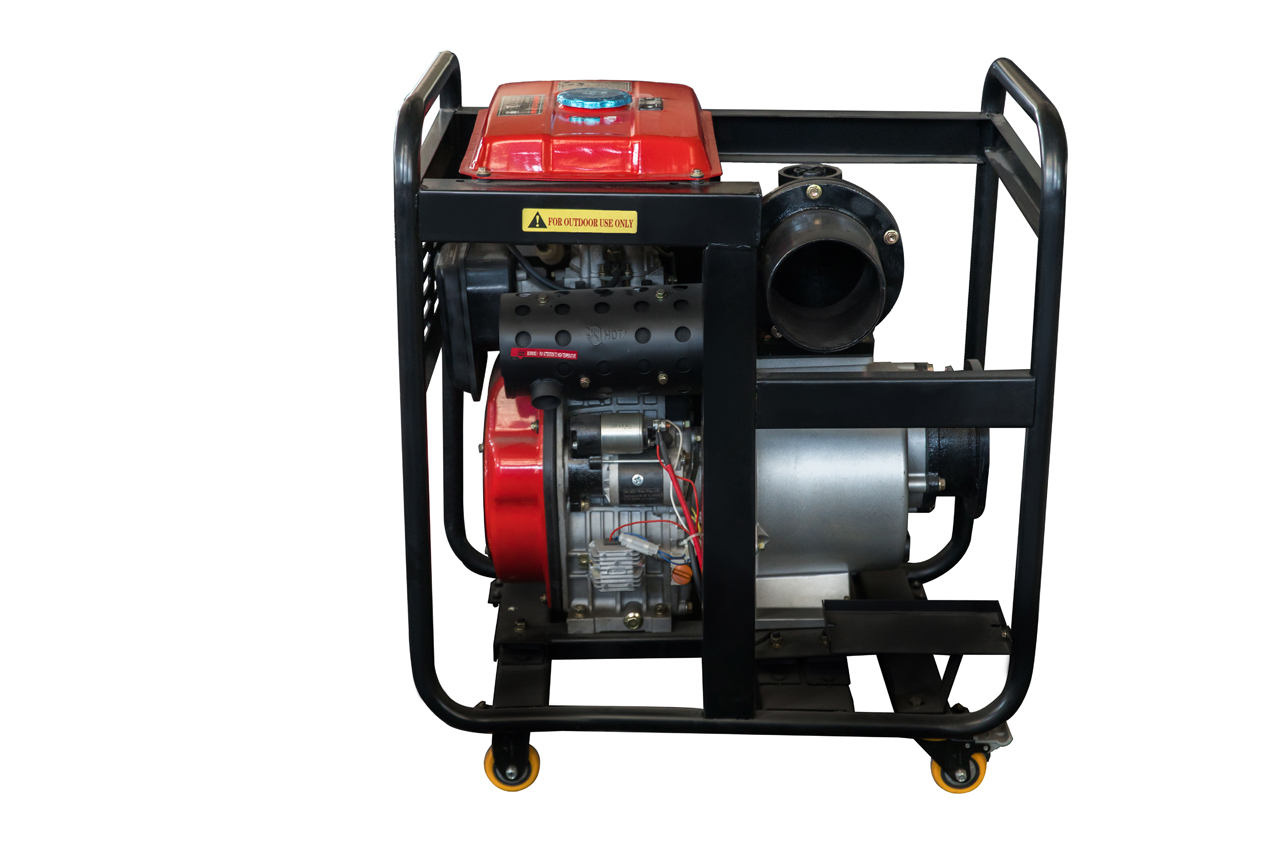

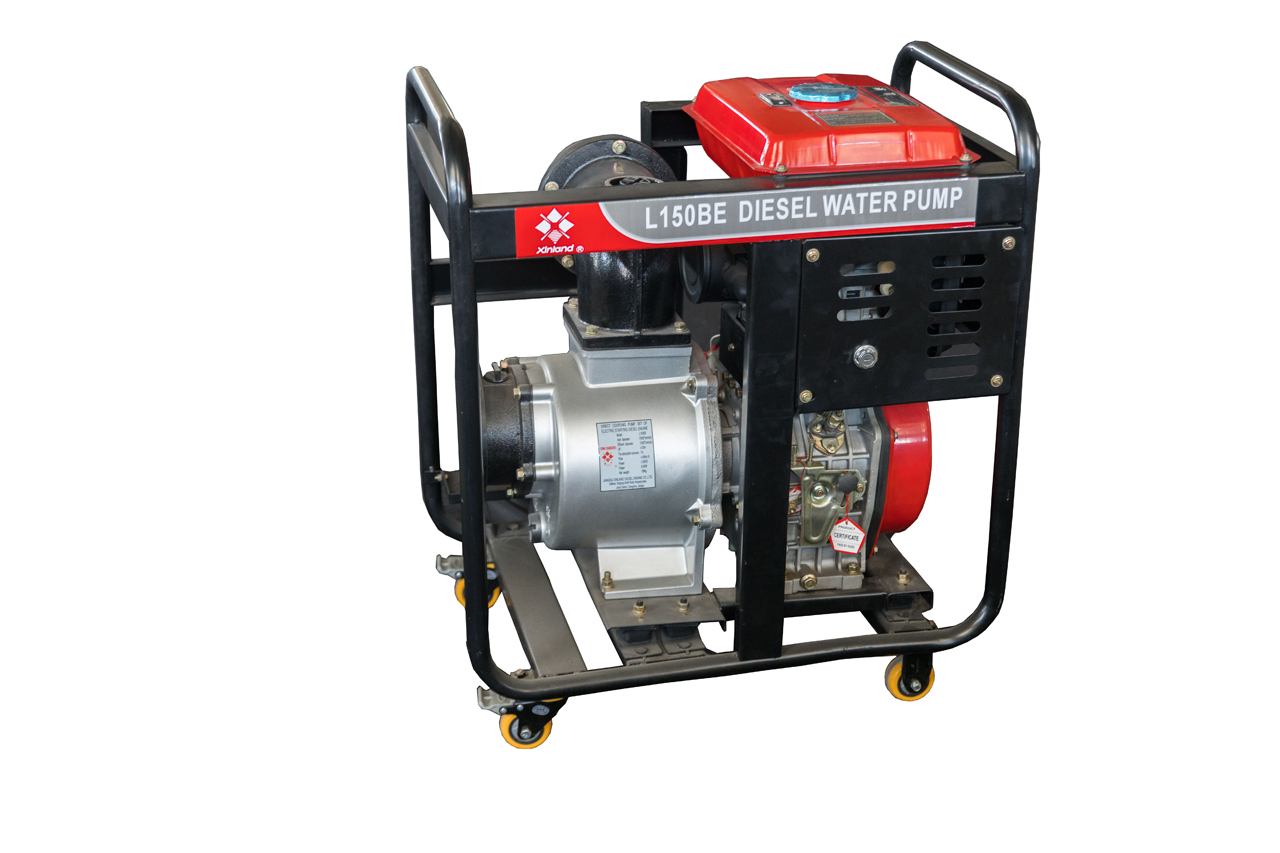

The L150BE is a robust, self-priming diesel water pump engineered for high-volume water transfer in demanding environments. Featuring a powerful 10.2 hp diesel engine, this unit is designed for reliability and efficiency in applications such as irrigation, construction sites, and emergency water supply. Its durable construction and portable frame ensure it can withstand rigorous outdoor use while maintaining consistent flow rates.
Performance Metrics
Capacity
200 m³/h
Flow Capacity
15 m
Head
Suction & Priming
- Port Diameter: 150 mm
- Max. Suction Head: 7 m
- Self-priming Time: 220 s/4m
Engine Specifications
Engine Configuration
| Parameter | Value |
|---|---|
| Engine Model | L718F |
| Continuous Output | 10.2 hp |
| Displacement | 718 cc |
| Engine Speed | 3600 rpm |
Physical Characteristics
Size & Weight
- Dimensions: 770 x 575 x 900 mm
- Net Weight: 138 kg
Usage Warnings
Outdoor Use OnlyHot Surface
