Diesel Silent Generator
The diesel silent generator provides a reliable power source with minimal noise. Its soundproof enclosure makes it suitable for environments where quiet operation is essential.
Technical Specifications
Overview
Reliable Silent Power Generation

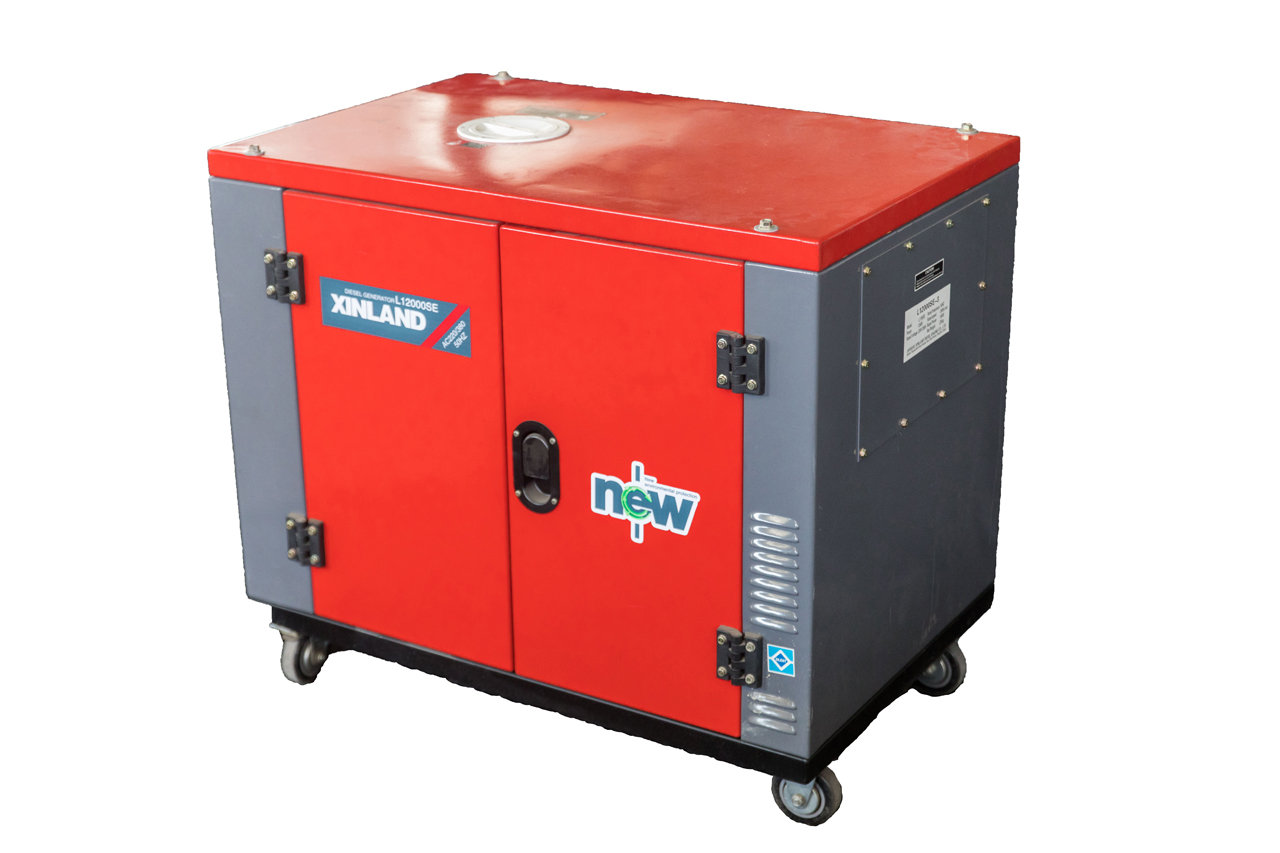

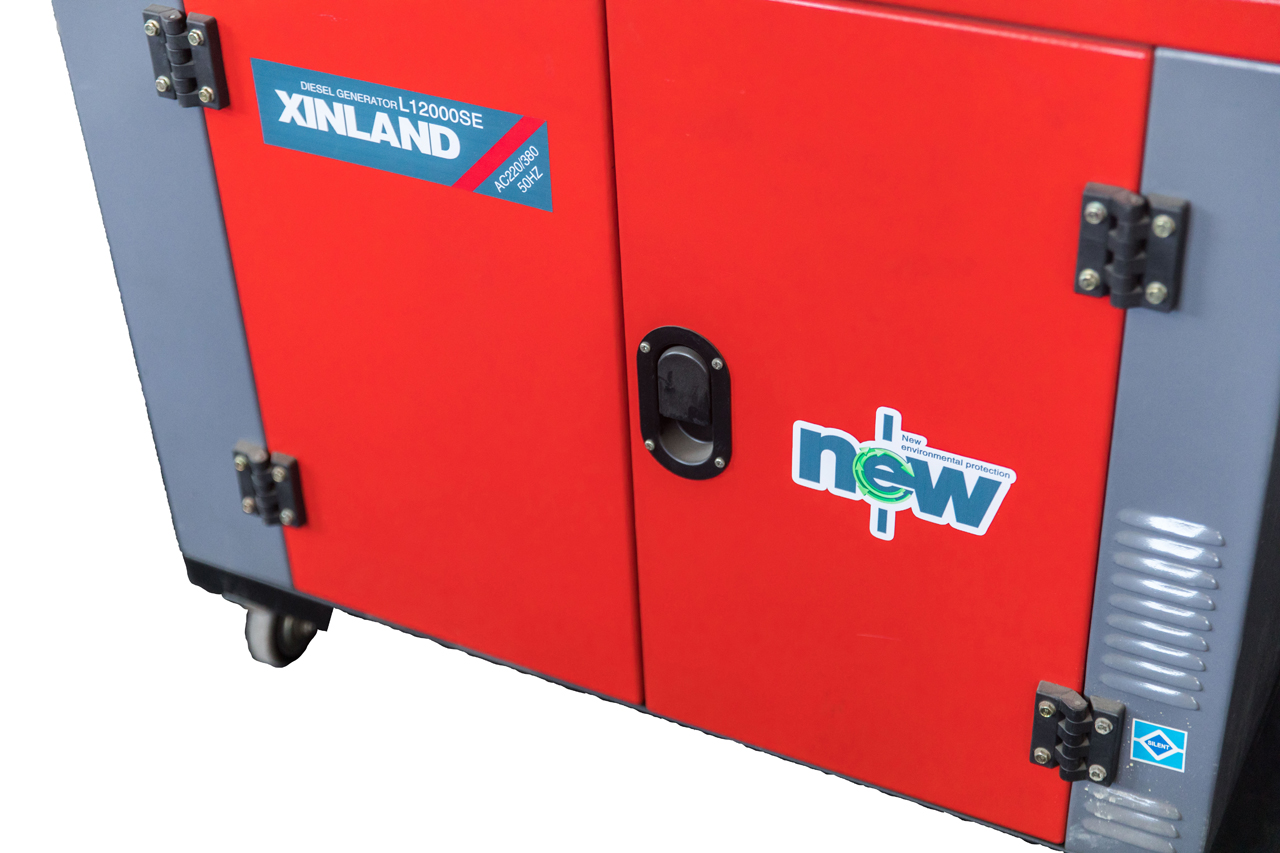

The L9800SE is a diesel-powered silent generator engineered for consistent and efficient power output. Encased in a soundproof canopy, it is designed to minimize noise pollution, making it an ideal solution for residential, commercial, and industrial environments where quiet operation is paramount. This unit combines robust construction with user-friendly controls, offering both stable performance and essential safety features like overload protection.
Performance Metrics
Rated Output (50Hz)
7 KW
Rated Output
7.5 KW
Max Output
Rated Output (60Hz)
7.5 KW
Rated Output
8 KW
Max Output
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Generator Type | Brushless, self-excited, 2-pole |
| Rated Voltage | 220/380 V |
| Power Factor | 1.0 |
| Phase | Single or 3 phase |
| DC Output | 12V/8.3A |
Engine Specifications
- Engine Model: L198FE
- Displacement: 618 cc
- Compression Ratio: 20.5±1
- Rated Speed: 3000 rpm (50Hz) / 3600 rpm (60Hz)
Operational Features
Operational Requirements
- Noise Level: 75 dB
- Start Method: Electric
- Battery Capacity: 12V/36AH-45AH
- Lube Oil: SAE 10W-30, 15W-40 or above CD grade
- Fuel Type: 0# (summer), -10# (winter), -35# (Chinese)
Design Type
MuteSilentPortable
Physical Dimensions
Physical Dimensions
1,035 mm
Length
605 mm
Width
770 mm
Height
210 kg
Net Weight
