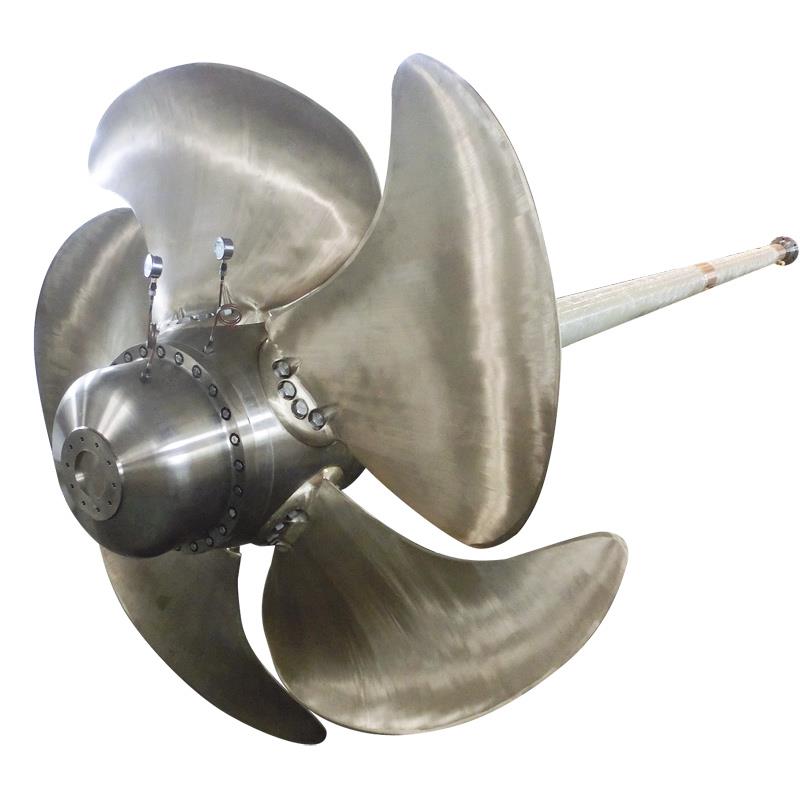

Diesel Powered Marine Controllable Pitch Propeller
This diesel-powered marine controllable pitch propeller excels in both operability and economy. It minimizes noise and vibration levels while providing superior ship control.
Technical Specifications
Overview
High-Efficiency Marine Propulsion
This controllable pitch propeller (CPP) system is designed for excellence in operability and economy across a full range of rotational speeds and load conditions. By adjusting blade pitch to optimal angles, the system maximizes engine power absorption and significantly improves fuel efficiency for both loaded and empty vessels. Beyond propulsion, it enhances vessel maneuverability and safety through superior deceleration capabilities and directed water flow onto the rudder.
Performance & Features
Key Benefits
- Minimizing noise and vibration levels
- Superiority in ship control and maneuverability
- Faster acceleration from standstill
- Effective deceleration for quicker stopping
- Optimized fuel economy through variable pitch
Technical Configuration
System Options
- Twin-engine incorporation optional
- Fixed or varied pitch optional
- Hydraulic system available
- Drive System Options
- Electric MotorDiesel EngineHydraulic Motor
Model Specifications
Propeller Model Range
| Model Type | Hub Diameter (mm) | Propeller Dia. (mm) | No. of Blades | Approx Weight (Kg) |
|---|---|---|---|---|
| SKL 38 | 380 | 1,400 | 3 or 4 | 415 |
| SKL 50 | 500 | 1,850 | 4 | 800 |
| SKL 66 | 660 | 2,400 | 4 | 1,810 |
| SKL 86 | 860 | 3,150 | 4 or 5 | 4,500 |
| SKL 102 | 1,020 | 3,750 | 4 or 5 | 6,710 |
| SKL 132 | 1,320 | 4,850 | 4 or 5 | 13,200 |
System Components
- Standard System Components
- Hub AssemblyStern Shaft AssemblyIntermediate ShaftHydraulic CouplingShaft Locking DeviceRPM TransmitterOil Distribution BoxRemote Control System
Applications
Suitable Vessel Types
Compliance & Quality
IACS Recognized
Certificates from all 12 classification societies of the International Association of Classification Societies (IACS) are available, including CCS, ABS, BV, and LR.
