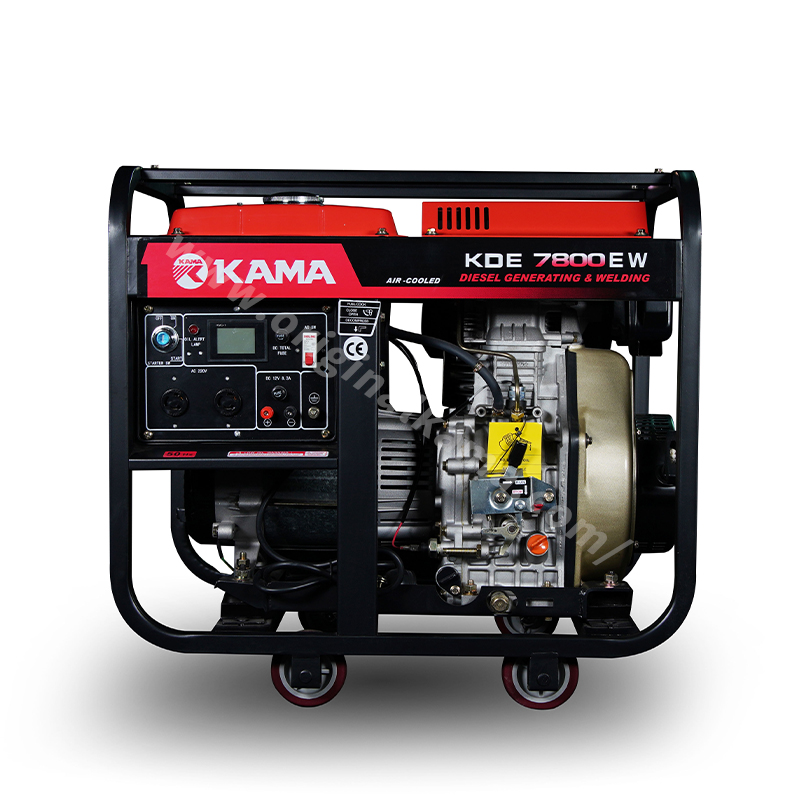

Diesel Generator Welding Set 5kW
This diesel generator and welding set offers dual functionality. It delivers a rated output of 5kW, suitable for applications requiring both power and welding capabilities.
Technical Specifications
Product Overview
Dual-Function Power Solution
This diesel-powered unit offers versatile functionality, combining a 5kW power generator with a welding set in a single, robust machine. Engineered for reliability, it utilizes a high-performance, air-cooled, four-stroke engine and a tapered shaft connection for stable power transmission. The high-strength steel support frame ensures durability, making it an ideal choice for construction sites, industrial maintenance, and remote operations requiring both electrical power and welding capabilities.
Technical Specifications
- Rated Output Power
- 5 kW
- Maximum Output Power
- 5.5 kW
- Welding Current
- 180 A
- Rated Voltage
- 230 V
- Rated Frequency
- 50 Hz
- Rated Rotation Speed
- 3000 rpm
Engine Details
- Engine Model
- KM186FA
- Fuel Capacity
- 15 L
- Engine Type
- Single CylinderAir CooledFour-stroke
Performance Metrics
Performance Highlights
5 kW
Rated Power
180 A
Welding Current
15 L
Fuel Capacity
Environmental Derating Table
| Condition | Value |
|---|---|
| Power at -20°C to 30°C | 5.0 kW |
| Power at 55°C | 4.6 kW |
| Power at 0m Altitude | 5.0 kW |
| Power at 4000m Altitude | 2.7 kW |
