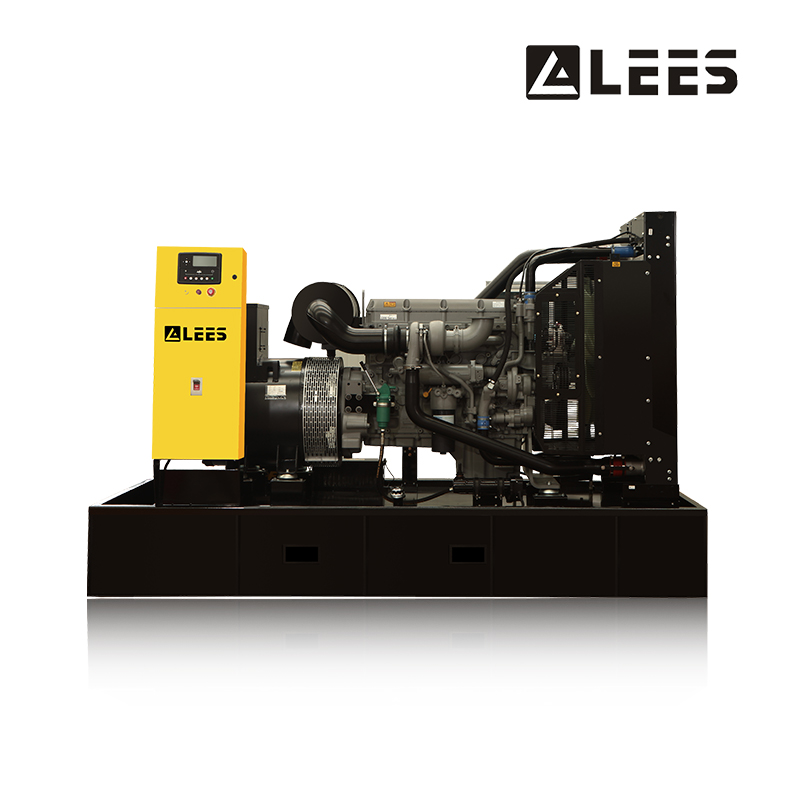

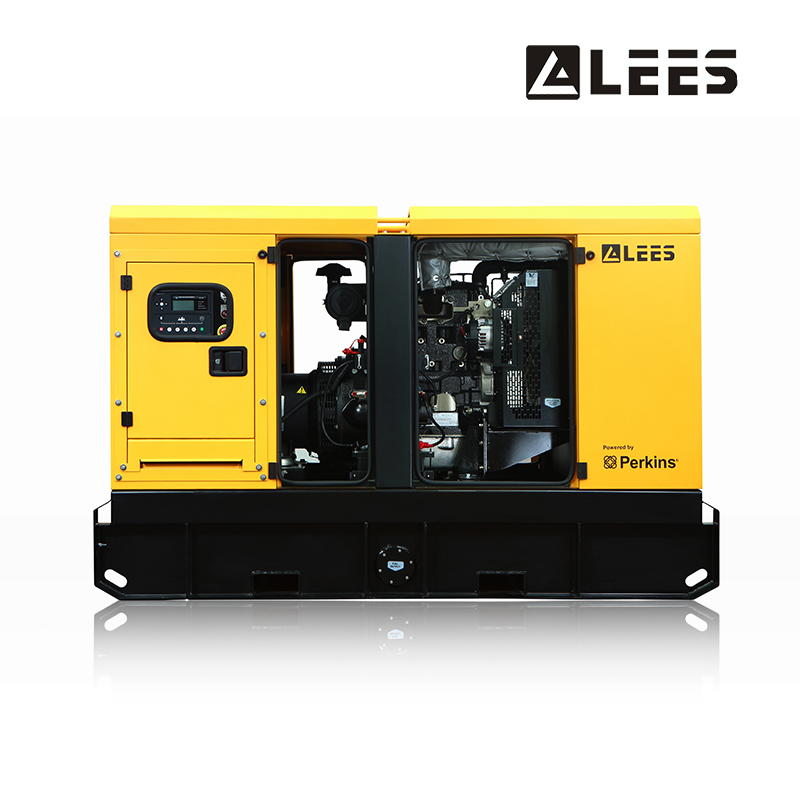

Diesel Generator Set with Perkins Engine
This diesel generator set is powered by a Perkins engine, providing reliable power generation. It features robust construction and advanced control systems for optimal performance in various applications.
Technical Specifications
Overview
High-Performance Diesel Power Solutions
This diesel generator set is engineered for reliable and efficient power generation across industrial, commercial, and residential applications. Powered by a world-class engine, it offers a versatile power range from 10 to 2500kVA to support both prime and standby power needs. The unit features robust construction, advanced control systems, and compliance with international quality standards to ensure stable performance in demanding environments.
Performance Metrics
Power Output Range
10 kVA
Minimum Power
2,500 kVA
Maximum Power
Technical Specifications
Rated Speed
- 1500 RPM
- 1800 RPM
Frequency
- 50 HZ
- 60 HZ
Rated Voltage Options
| Frequency | Voltage Configurations |
|---|---|
| 50 HZ | 230V; 230/400V |
| 60 HZ | 110/220V; 208/120V; 220/127V; 416/240V; 440/254V; 480/277V |
Components & Build
- Cooling System
- Water-cooling / air-cooled charge air
- Alternator Options
- StamfordLeroy Somer
- Control System
- DeepseaComAp
- Standard Fuel Autonomy
- 8 hours
- Protection Rating
- IP23
- Insulation Class
- H
Design & Configuration
Available Configurations
- Super Silent
- Open Type
- Containerized
- Trailer Type

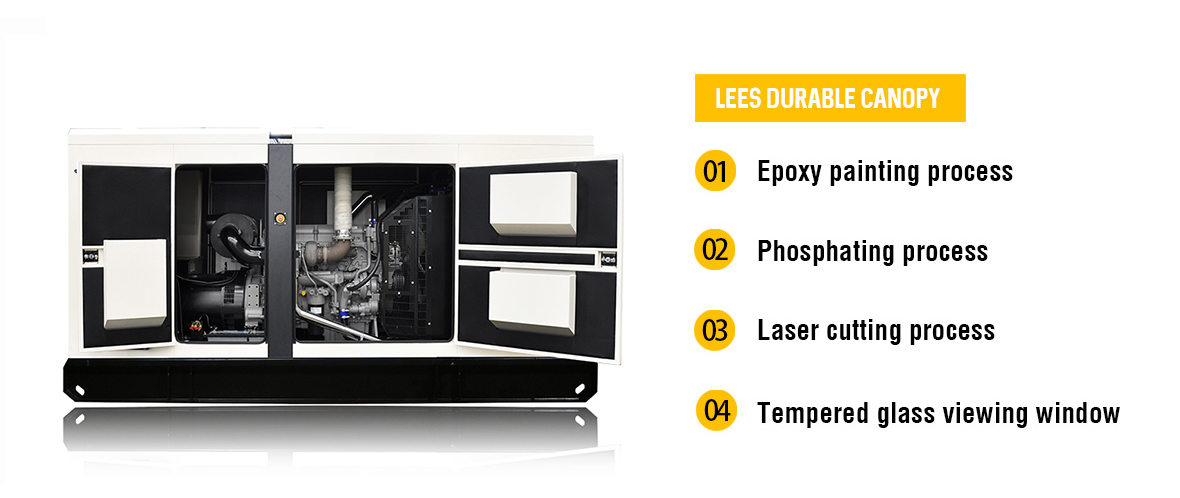

Canopy Construction
- Epoxy painting process
- Phosphating process
- Laser cutting process
- Tempered glass viewing window
Quality & Compliance
Compliance Standards
ISO 9001:2015CEISO8525-G3Low Voltage Directive 2014/35/EU
- Quality Control
- 8 hours full QC test before shipment
Logistics
- Minimum Order Quantity
- 1 set
- Standard Lead Time
- 15 days for 1 unit
