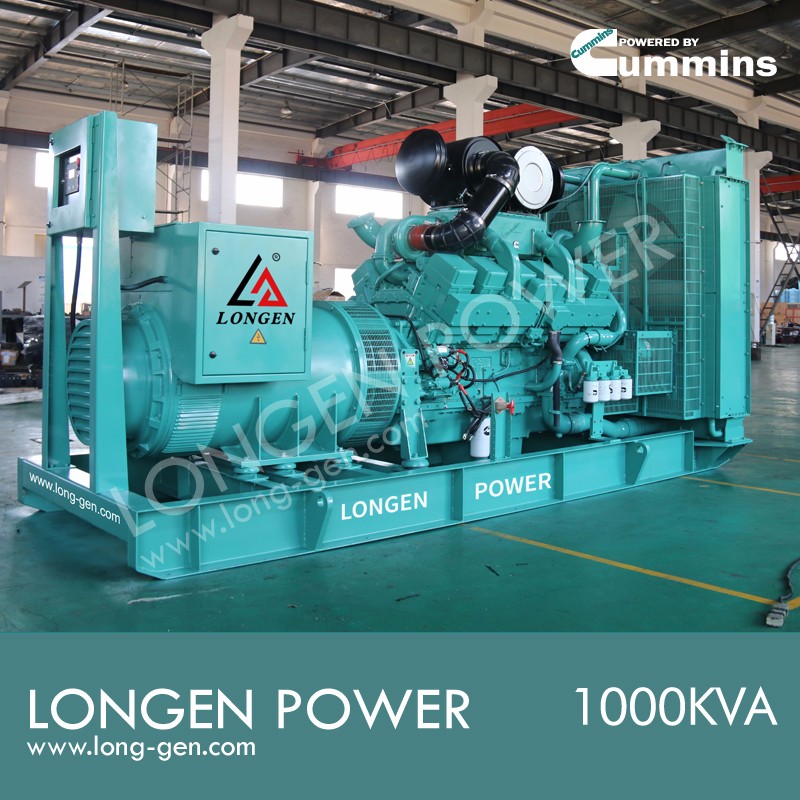

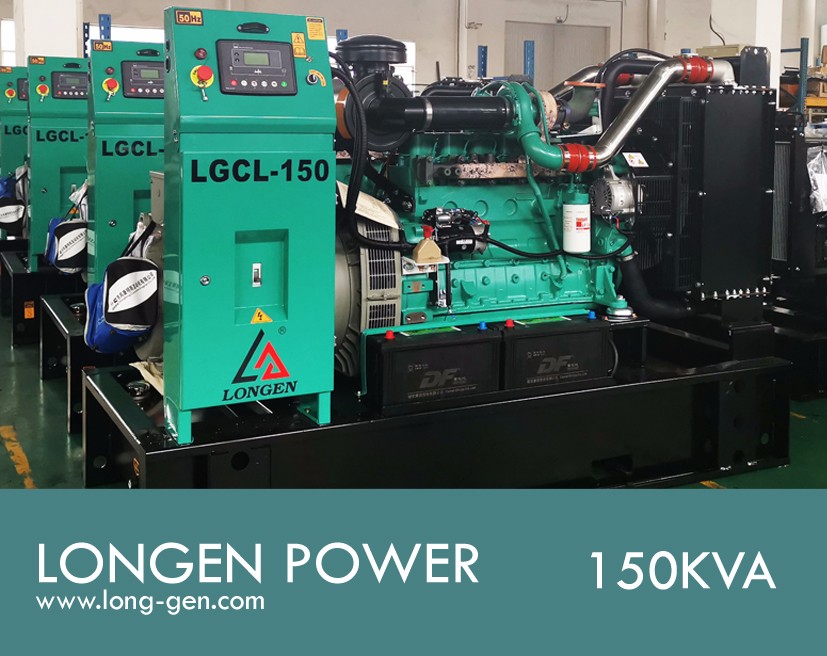

Diesel Generator Set
Generator equipped with a diesel engine and high emission standard-EU II-IIIA. It provides a power range of 27KVA-1375KVA, suitable for most home, factory, and power station needs.
Technical Specifications
Overview
Reliable High-Performance Power Generation
This diesel generator set offers a versatile power range from 27KVA to 1375KVA, making it an ideal solution for residential, industrial, and utility power station needs. Engineered for durability, the unit features high emission standards (EU II-IIIA) and is equipped with advanced vibration isolators for stable operation. With integrated safety features and a variety of control options, it provides a dependable and efficient power supply for demanding environments.
Performance & Capacity
Power Performance
27 KVA
Minimum Power
1,375 KVA
Maximum Power
50 Hz
Frequency
Engine & Cooling
Emission Standard
EU IIEU IIIA
- Radiator Rating
- 50 °C
Control & Electrical
Control System Options
- Deepsea DSE6020 with AMF function (Standard)
- ComAp (Optional)
- Auto transfer switch (Optional)
- Paralleling switchgear (Optional)
- Circuit Breaker Options
- CHINTABBLS
- Excitation System
- Self-excited (PMG available as option)
Physical Design
Mechanical Features
- Vibration isolators between engine, alternator, and base
- Lockable battery isolator switch
- Integrated wiring design
- Industrial muffler
- Top lifting points
- Steel base frame with forklift holes
Fuel System
- Standard Fuel Tank
- At least 8 hours running time (Standard for units below 500KVA)
- Maintenance Features
- Fuel tank drainageDouble air cleaner (Optional)Water jacket preheater (Optional)Oil heater (Optional)
Certifications
- Quality & Compliance
- ISO 9001:2015SGS CertifiedCE Compliant
