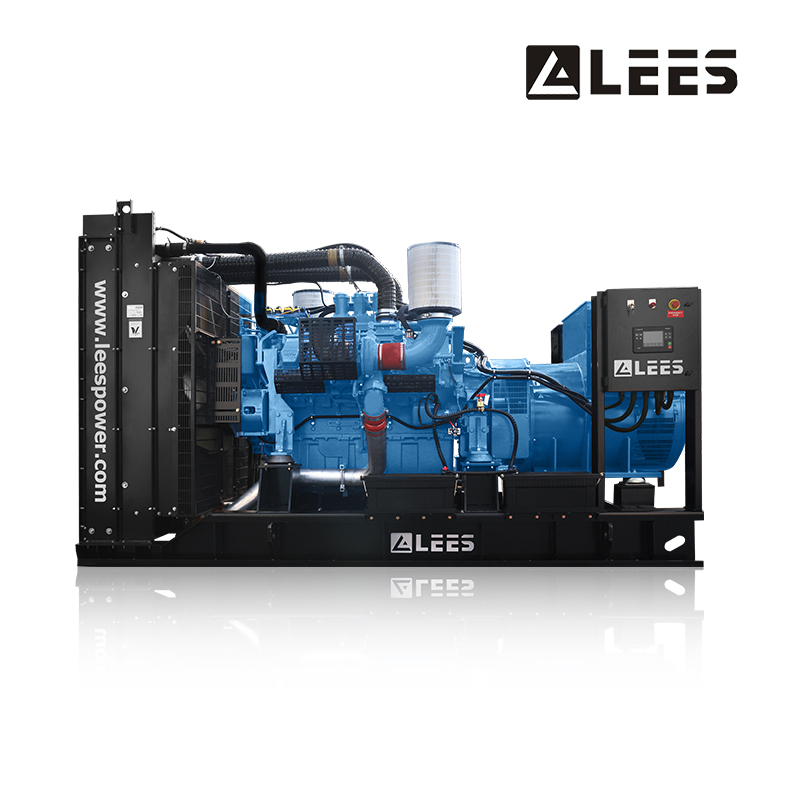

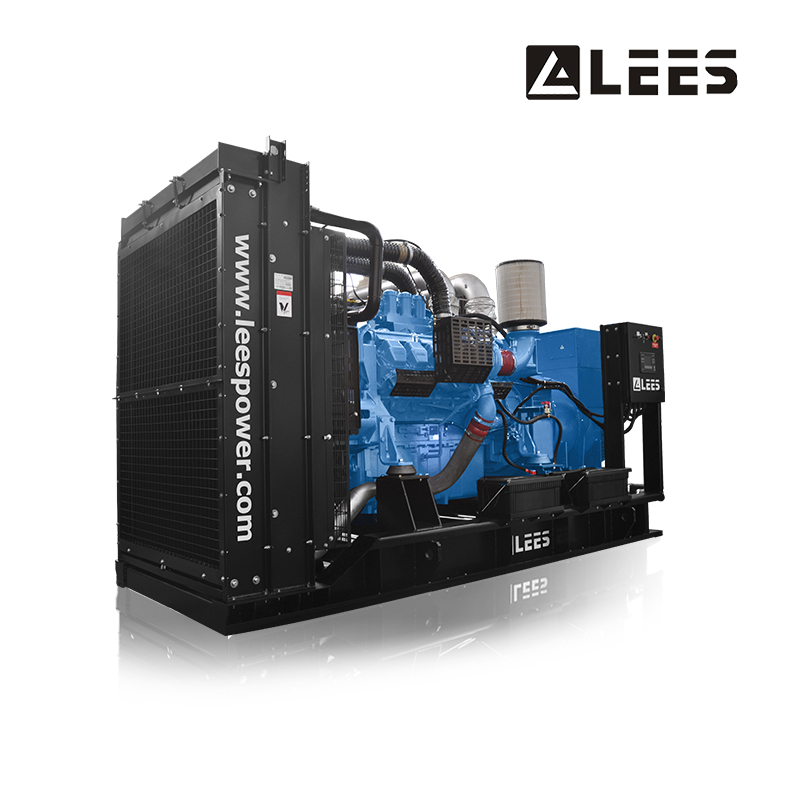

Diesel Generator Set 715-4000kVA
This diesel generator set delivers between 715 and 4000 kVA. It is designed for reliable and efficient power generation in various applications.
Technical Specifications
Overview
High-Capacity Power Generation
This diesel generator set offers a versatile power range from 715 to 4000 kVA, making it an ideal solution for critical standby and continuous prime power applications. Engineered with a robust engine and advanced control systems, it ensures reliable performance in demanding industrial and commercial environments. The unit is available in multiple configurations, including super silent, open, containerized, and trailer-mounted types to suit diverse installation requirements.
Performance Metrics
Power Output Range
715 kVA
Minimum Output
4,000 kVA
Maximum Output
Technical Specifications
Rated Speed
- 1500 RPM
- 1800 RPM
Frequency
- 50 Hz
- 60 Hz
Rated Voltage Options
| Frequency | Voltage Options |
|---|---|
| 50 Hz | 230/400V |
| 60 Hz | 208/120V, 220/127V, 416/240V, 440/254V, 480/277V |
Components & Control
- Compatible Alternators
- StamfordLeroy Somer
- Control Systems
- DeepseaComApSmartgen
- Cooling Method
- Water-cooling
Physical Construction

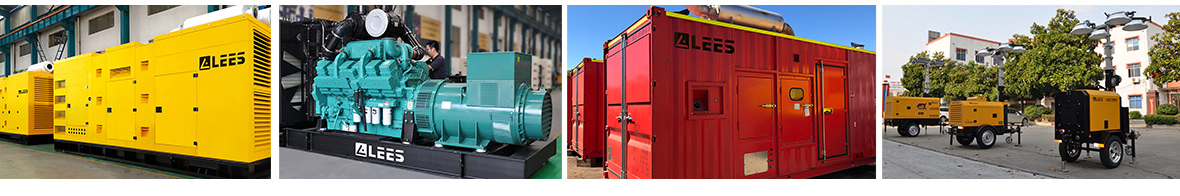

Available Configurations
- Super Silent
- Open Type
- Containerized
- Trailer Type

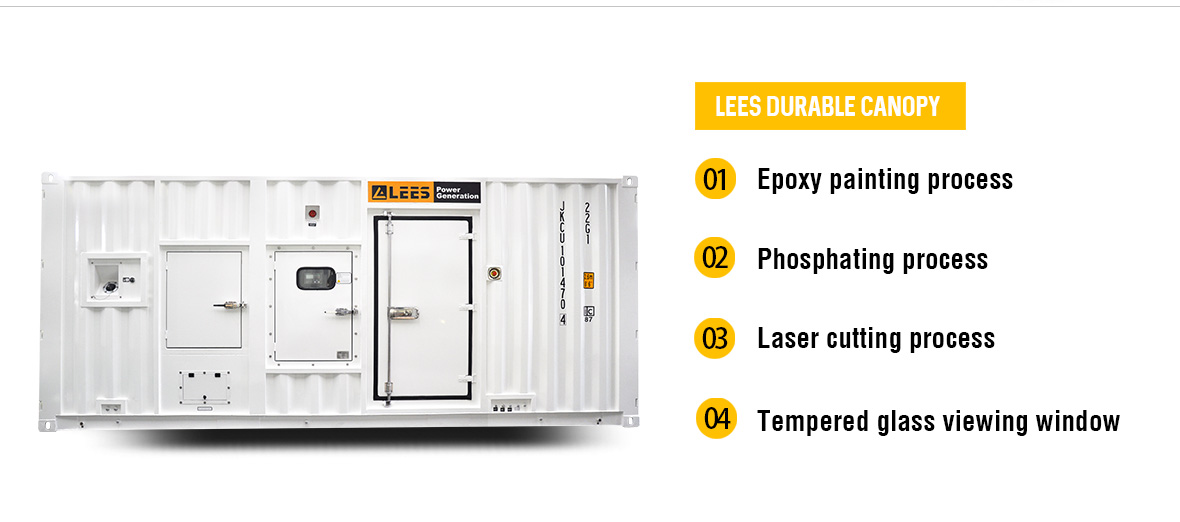

Canopy Manufacturing Process
- Epoxy painting process
- Phosphating process
- Laser cutting process
- Tempered glass viewing window
- Protection Class
- IP23
- Insulation Class
- H
Operational Details
- Fuel Tank Autonomy
- 8 Hours minimum (Enlarged tank optional)
- Quality Control
- 8 hours QC test before shipment
Compliance & Logistics
Compliance
ISO 9001:2015CEISO8525-G3IEC 60034-1
- Lead Time
- 15 days for 1 unit
