Technical Specifications
Product Overview

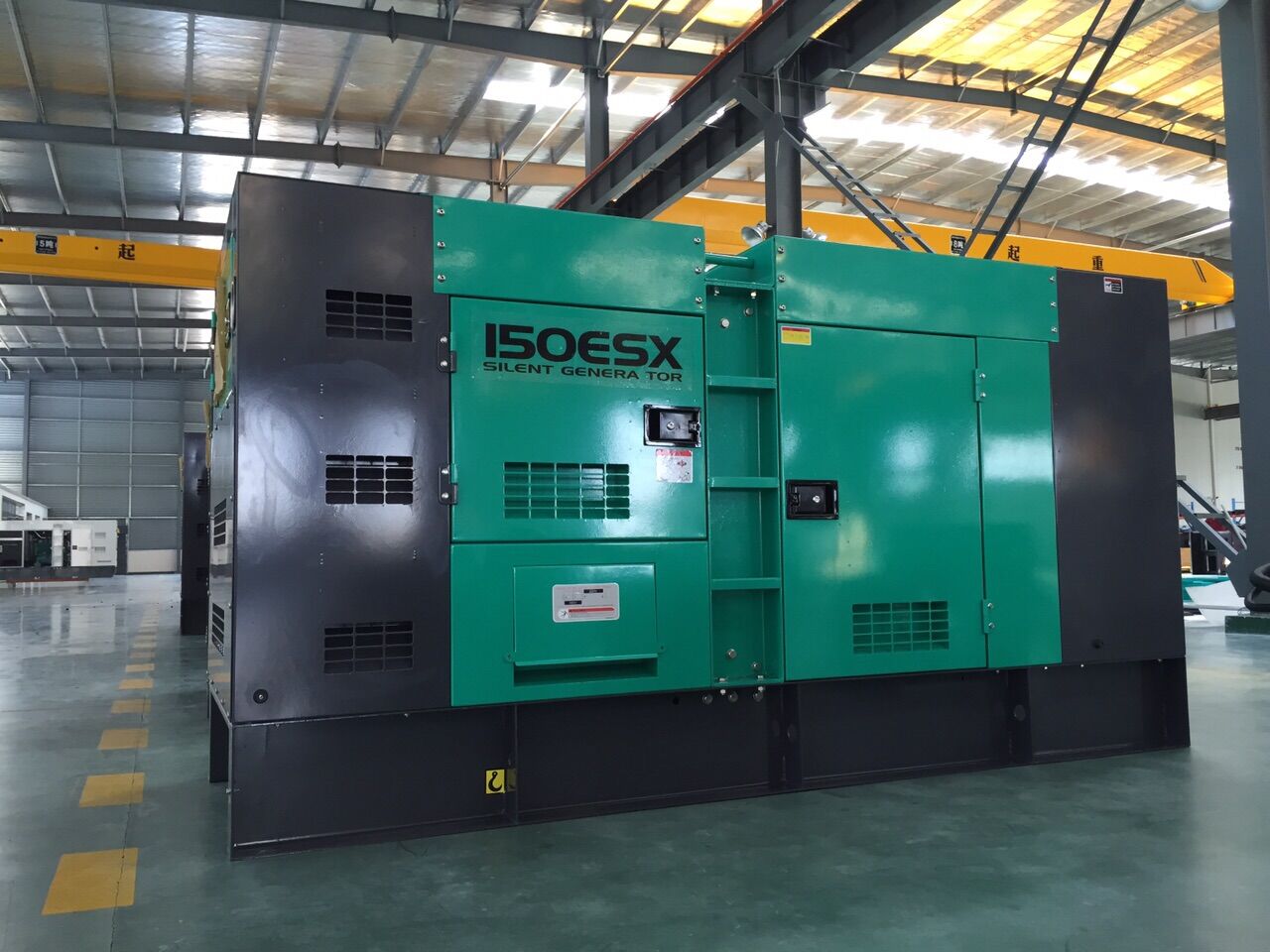

Industrial Grade Diesel Generator
This silent diesel generator set is engineered for reliable, continuous power supply in industrial, commercial, and residential settings. Featuring a robust sound-attenuated enclosure and high-efficiency insulation, it ensures quiet operation suitable for noise-sensitive environments. The unit is built for durability with a galvanized steel canopy and a heavy-duty carbon steel base frame, designed to withstand demanding operational conditions.
Key Performance Metrics
Noise Level
85 dBA
Noise Level
- Power Range
- 25-2000 KVA
Construction & Materials
Canopy Construction
- 2mm Galvanized steel plate
- Electrostatic spraying process
- Outdoor powder coating
- Base Frame Material
- 10mm Carbon steel
- Fastener Material
- Stainless steel (bolts, nuts, hinges)
Sound Attenuation
Insulation Specifications
- High efficiency mineral wool
- 5.0mm thickness
- Stainless steel punching plate covering
- Muffler Type
- Customized built-in high performance residential muffler
Standard Equipment
- Standard Accessories
- BatteryBattery switchBattery charger
- Handling Features
- Top lifting pointsForklift pocketsEyelets
