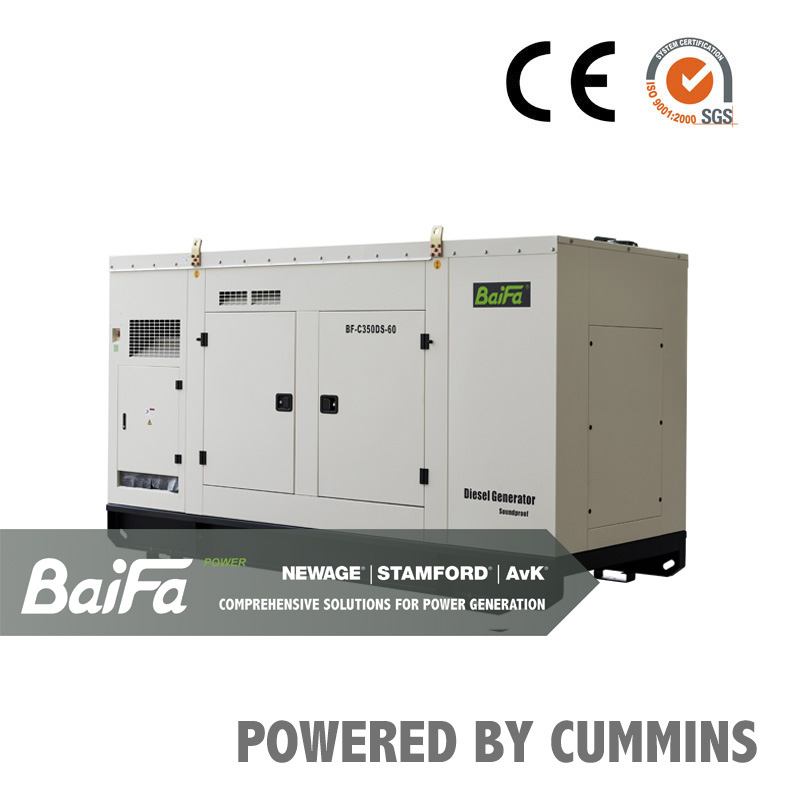

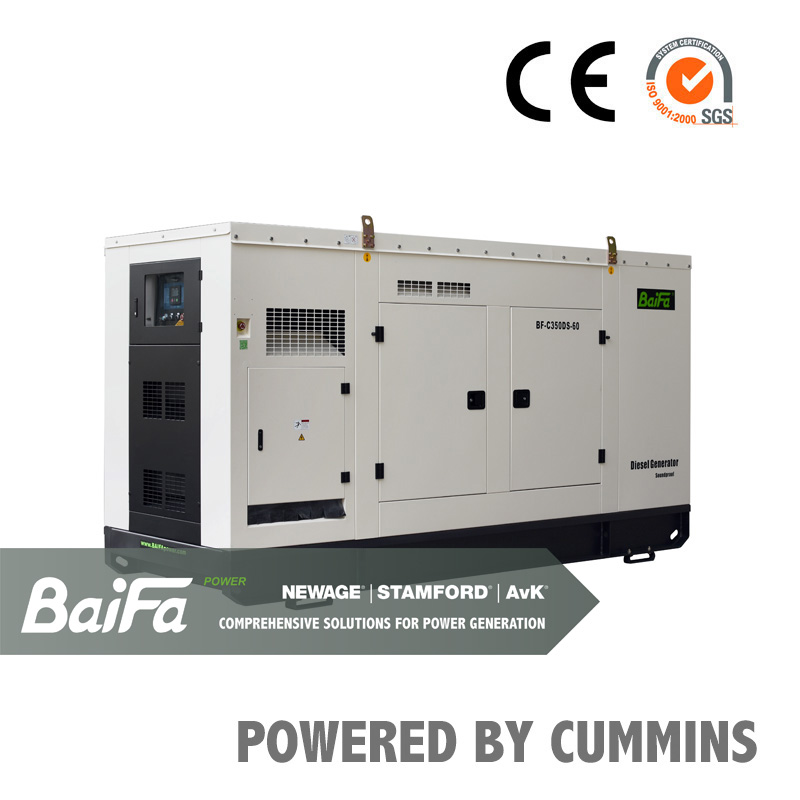

Diesel Generator Set
This diesel generator set provides comprehensive solutions for power generation. It is designed for reliable and efficient power supply in various applications.
Technical Specifications
Overview
High-Performance Diesel Generator Set
This industrial-grade diesel generator set is engineered to provide reliable and efficient power solutions. Designed for both standby and prime power applications, it features a robust engine and a high-quality alternator to ensure consistent performance. With integrated safety features and comprehensive filtration systems, this unit is built for demanding operational environments.
Performance Metrics
Standby Power (50Hz)
300 KW
Standby Power
375 KVA
Standby Power
Prime Power (50Hz)
275 KW
Prime Power
344 KVA
Prime Power
Technical Specifications
Engine Features
- Radiator with 40°C max capacity
- Belt-driven fan with safety guard
- 24V charge alternator
- Dry type air filter
- Double fuel filter
- Oil filter
- Coolant filter
Alternator Details
| Feature | Specification |
|---|---|
| Bearing Type | Single bearing |
| IP Rating | IP23 |
| Insulation Class | H/H |
Equipment & Accessories
- Included Components
- Main line circuit breakerStandard control panelTwo 12V batteriesBattery rack and cableRipple flex exhaust pipeExhaust siphonFlangeMufflerUser manual
