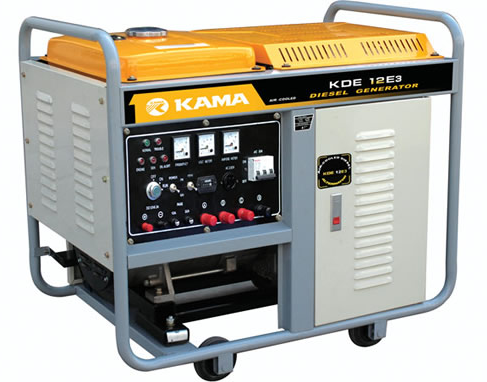

Diesel Generator KDE12E3
This diesel generator is engineered for dependable power generation. It features a durable construction, protective frame, and a control panel for easy operation.
Technical Specifications
Overview
Reliable Diesel Power Generation
The KDE12E3 is a robust, open-frame diesel generator designed for dependable power supply in demanding environments. Engineered for efficiency, it delivers a rated output of 10kW with a maximum capacity of 11kW, making it suitable for a wide range of professional applications. Its air-cooled engine and electric start system ensure consistent performance and ease of operation for users requiring reliable backup or primary power.
Performance
Rated Output Power
10 kW
Rated Output
11 kW
Max Output
Electrical Characteristics
| Parameter | Value |
|---|---|
| Rated Voltage | 400/230 V |
| Rated Current | 14.5 A |
| Frequency | 50 Hz |
| Power Factor | 0.8 cos |
| Phase | Three phase |
Engine & Fuel
Engine Specifications
- Model: KM290FE
- Rotation Speed: 3000 rpm
- Total Displacement: 0.954 L (58.22 cu.in)
- Starting Mode: 12V Electric Start
- Fuel Consumption
- 200 g/kW.h
- Fuel Tank Capacity
- 25 L
Physical Characteristics
Physical Dimensions & Weight
- Dimensions: 900 x 600 x 810 mm
- Dry Weight: 208 kg
- Design Features
- Open-frameAir-cooled12V DC Output
- Noise Level (at 7m)
- 72~79 dB(A)
